15 stations Guard Rail Roll Forming Machine with convey 2.0 - 4.2mm

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/IS09001/SGS
Model Number: Two Waves
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 280 sets per year
Detail Information
Product Name: Guard Rail Roll Forming Machine Steel Thickness: 2.6-4.2mm
Decoiler: 5tons Hydraulic Decoiler With Coil Car Roller Material: Gcr15 Surface With Chrome
Station: 15 Stations Drive: Gear Box
Shaft: ¢100mm Leveling: ¢180mm
Main Power: 45kw Convey: 5 Meters
High Light:

Guardrail Roll Forming Machine

,

Highway Guardrail Forming Machine


Product Description

Three Waves Guard Rail Roll Forming Machine



Profile:

All of our machine profile is customized, above profile is only for your reference.

1. Coil width: 617mm

2. Thickness: 2.0-4.2mm

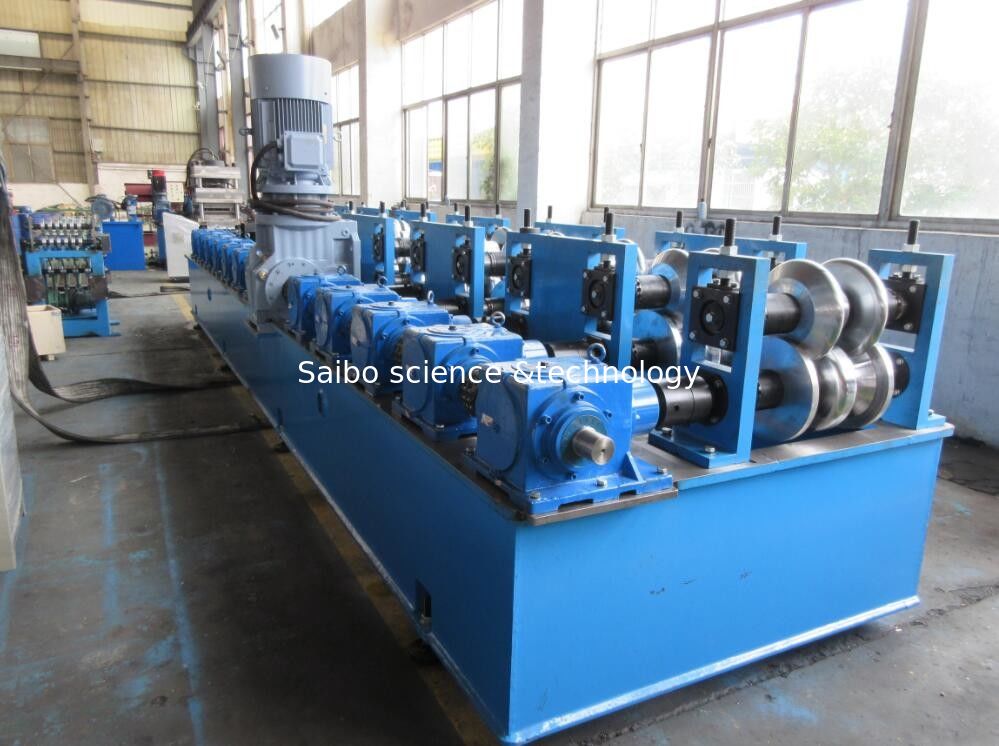

15 stations Guard Rail Roll Forming Machine with convey 2.0 - 4.2mm 0

punching drawing:

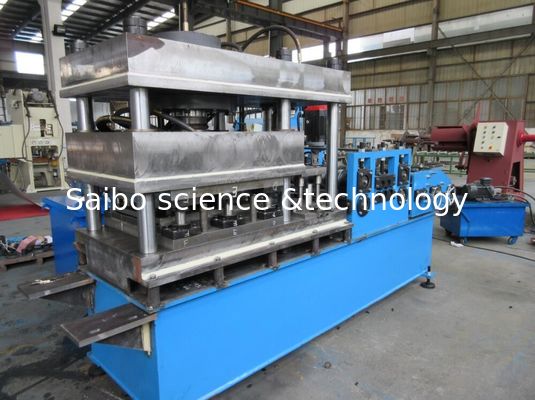

15 stations Guard Rail Roll Forming Machine with convey 2.0 - 4.2mm 1





Layout:

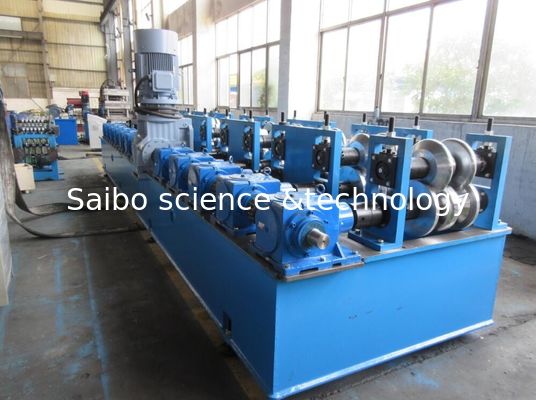

15 stations Guard Rail Roll Forming Machine with convey 2.0 - 4.2mm 2





Hydraulic De-coiling (5tons)  ----leveling--- hydraulic punching holes & cutting device-----sheet transportation table (5000mm length) --- Roll forming---- out table



Specifications:

Item NO



Description



Offered specification

1 Roll Forming Machine

Guardrail



2 Material Width 470mm
3 Rolling Speed 0-15m/min (not include cutting and punching time)
4 Rolling Thickness 2.0-4.2 mm
5 Control System PLC (Panasonic) as list in the note
6 Un Coiler 5 ton hydraulic de-coiler with coil car
7 feeding servo motor feeding, 11kw
8 Leveling Station 1 station (three rollers over four)
9 Punching two sets
10 Pre-cutting By hydraulic
11 Material Of Cutting Cr12Mov quenching 58-62℃
12 Hydraulic Station Power 22kw
13 Hydraulic Pressure 20-25Mpa
14 Conveyor table 4.5KW, 5 meters
15 Roller Stations 15 stations (according the final design)
16 Roller Material

GCR15, HRC58-62℃

coated with chrome

17 Shaft Material and DIA ¢100mm, material is 45# forge steel
18 Maim Motor Power 45kw
19 Structure Of The Stations Guide pillar
20 Tolerance 3m+-1.5mm
21 Electric Source

380V, 50HZ,3 phase

According to customer’s require



22 Way Of Drive By gearbox
23 out table manual
24 Color Of The Machine Yellow and blue
25 Container Need 1 x40 feet & 1 x20 feet



Main Features

1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.

2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.

4. It is very easy to install the equipment and suitable for producing in the factory.

5. The machine has features of low noise and high efficiency.
