| Place of Origin: | China |
|---|---|
| Brand Name: | Saibo |
| Certification: | CE/ISO |
| Model Number: | YX21-41 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Suitable for ocean shipment |
| Delivery Time: | 90 days |
| Supply Ability: | 300 sets per year |
| Product Name: | Guide Rail Roll Forming Machine | Shaft Diameter: | ￠120mm |
|---|---|---|---|
| Steel Thickness: | 1.2-1.5mm | Drive System: | By Chain |
| Mian Power: | 11kw X 2 | Roll Station: | 22 Station |
| Roller Material: | Cr12 | ||
| Highlight: | roll forming equipment,roll forming machine |
||

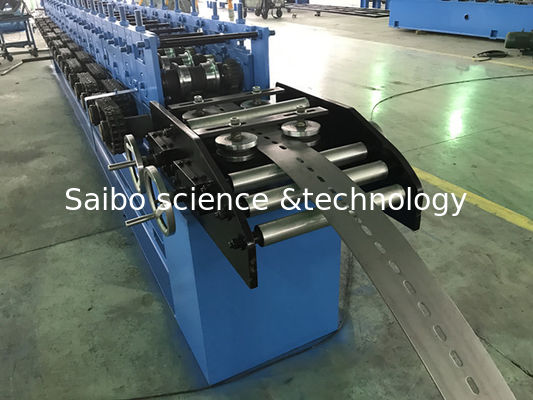

1.2-1.5mm Guide Rail Roll Forming Machine with 3T Manual Decoiler by Chain
1. Main speficication:
1 | Suitable Material | GI |
2 | Width of the raw material | According to the final profile |
| 3 | Thickness | 1.2-1.5mm |
2. The Chart of Process Flow
Decoiler---leveling---servo feeding---punching---feeding---roll forming---
Post cutting---end product
3. Composition of machine
3T manual un-coiler…………………………………… 1 unit
Feeding →leveling……………………………………1 unit
Servo feeding→Punching……………………………..1 unit
Roll forming……….………………… ………………1 unit
Control panel…………………………………………..1 unit
Hydraulic station…………………………………… …1 unit
Manual out table……………………… ……………….2 unit
| | | |
| 1. | Roll forming machine | YX21-41 | |
| 1.2 | Rolling speed | 0-15m/min(not include cutting time) | |
| 1.3 | Rolling thickness | 1.2-1.5mm | |
| 1.4 | Material | GI | |
| 1.6 | Un coiler | 3 TON manual un-coiler | |
| 1.7 | The material width | Base on the final profile | |
| 1.8 | Roller stations | 22 stations( base on final design) | |
| 1.9 | Leveling stations | 7 stations | |
| 1.10 | punching machine | 63T pneumatic punching machine | |
| 1.11 | Roller material | CR12, 58-62,HRC hardness and chrome plated surface | |
| 1.12 | Shaft diameter | 45# forge steel ￠120mm | |
| 1.13 | Maim motor power | 11kw X 2 | |
| 1.14 | Hydraulic station power | 15KW | |
| 1.15 | Hydraulic pressure | 25Mpa | |
| 1.16 | Material of cutting | Cr12 with heat treatment 58-60° | |
| 1.17 | Tolerance | 3m+-1.5mm | |
| 1.18 | Electric source | 380V, 50HZ,3 phase | |
| 1.19 | Way of drive | By chain | |
| 1.20 | Color of the machine | Yellow and blue | |
| 1.21 | Deliver time | 90 days | |
| 1.22 | Terms of payment | 30%T/T 70% pay before shipment |
