0.7mm thickness Adjustable Shelf Box Panel / Door Frame Roll Forming Maching Four Sides Folding

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: box panel
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T or L/C
Supply Ability: 300 sets per year
Detail Information
Product Name: Box Panel Roll Forming Machine Main Power: 5.5KW
Hydraulic Power: 7.5KW Steel Thickness: 0.7-0.8mm
Coil Width: 0-1220mm Adjustable Station: 7 Stations+ Leveling
Roller Material: 45# Forge Steel Chrome Plated Surface With Quench Drive System: By Chain
Diameter Of Shaft: ¢65mm Solid Shaft Notching: One Station Of Notching By Hydraulic
Cutting & Folding: Cutting And Folding Work At Same Time Film Covering: Film Covering Systembefore Forming
High Light:

Shutter Roll Forming Machine


Door Frame Making Machine

Product Description

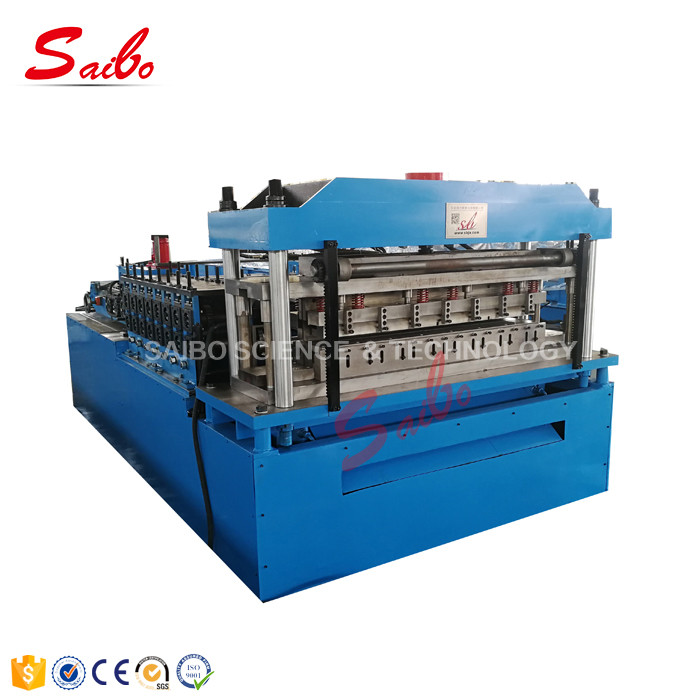

0.7mm thickness Adjustable Shelf Box Panel Roll Forming Maching four sides folding


Box Panel Roll Forming Machine


Shelf panel roll forming machine can be adjust width automatically, it’s complete line with punching and cutting and bending.

Saibo intelligent roll forming machine could make wide range of sizes using cantilever type structure, and automatically change by motors from one size to the other not only at width. The one and only step is to put your required data into our touch screen and wait for few seconds. raw material Cold-rolled Steel, Galvanized Coil, PPGI, Carbon steel, Stainless Steel and Aluminum. Our produced profile meet ISO, CE , FEM standards, and our machine is applied to Warehouse ,supermarket ,industry or home.

We have experience of exporting our pallet racking roll forming machine. In warehouse pallet racking system, we are able to manufacture more machines like Box beam roll forming machine, step beam roll forming machine and shelf panel roll forming machine etc.

We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need. Whichever line you choose, the quality of Dingbo Technology will ensure you obtain perfectly functional profiles.


1. Specification of the material

1 Suitable Material PPGI,PPGL, Galvanize steel
2 Width of the raw material 0-1220mm
3 Thickness 0.7-0.8mm


2. Machine Detailed Parameters


Roll Forming Machine


Box Panel Roll Forming Machine

Machine structure


Wire-electrode cutting frame
3 Total power

Motor power-5.5kw

Hydraulic power-7.5kw


Roller stations


7 stations and leveling roller

Roll forming speed


0-15m/min (not include notching and cutting and folding)

Drive system


By chain

Diameter of shaft


¢65mm solid shaft



380V 50Hz 3phases (Customized)

Color Of The Machine


Bule and yellow

Deliver time


70 days

Terms Of Payment


30%T/T 70% pay before shipment


3. Profile drawing

0.7mm thickness Adjustable Shelf Box Panel / Door Frame Roll Forming Maching Four Sides Folding 0


4. The Chart of Process Flow


Decoiler—leveling—Notching—Roll Forming—Cutting & Folding—Out table

0.7mm thickness Adjustable Shelf Box Panel / Door Frame Roll Forming Maching Four Sides Folding 1



5. Specification of Components


(1) Un-coiler

  • Max coil weight: 5T
  • Adopt manually expand and decoiling
  • Inter diameter:500mm-590mm
  • Maximal out diameter:1500mm
  • Coil width (Max.)1300mm
  • Working speed: match with roll forming
  • Quantity: 1
(2) feeding and notching
  • feeding roller: material is, HRC58-62egeree
  • Leveling: 7 rollers, up in 3, down in 4;
  • Material of leveling roller: SAE1045, HRC58-62degree
  • Power of the leveling: 5.5kw


(3) Notching system

  • Base on customer provide punching drawing, this machine need adopt one unit hydraulic punching system to get the four courners’ notch.
  • The punching mold material is CR-12, hardness HRC 58-62 and chrome coating.
  • Hydraulic power: 7.5kw
  • Working pressure: 16Mpa


(4) Main Roll Forming Machine

  • Main motor power: 5.5KW
  • Roll station:7 stations
  • Roll thickness: 0.8mm
  • Material: PPGI
  • Roll forming speed: 0-15m/min
  • Roller material: GCR15 quenched 58°-62° finishing turning
  • Shaft diameter: ¢65mm
  • Material of shaft: ASTM 1045 hardening and tempering
  • One side of the rollers fix, one side can be adjustable to get the different sizes.


(5) Cutting & folding system

  • Machine adopt hydraulic cut type
  • Knife material: Cr12,quenched 58°-62°
  • Oil cylinder dia: 100mm
  • Material of press-folding mould: Cr12 with heat treatment
  • The folding system is connecting with hydraulic station, all the action is controlled by computer and hydraulic pressure.
  • Folding width is base on customer’s size to finish,
  • Hydraulic power: 7.5Kw
  • Cutting and folding in the same time working


(6) Hydraulic station

  • Hydraulic power: 7.5kw
  • Working pressure: 12Mpa adjustable
  • Solenoid valve: 2 groups
  • Hydraulic oil: 46# hydraulic oil


(7) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization


6. Installation and training:


a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.


b.Without visiting, we will send you user manual and video to teach you to install and operate.


C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
