| Place of Origin: | China |
|---|---|
| Brand Name: | Saibo |
| Certification: | CE/IS09001/SGS |
| Model Number: | YX52-169 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Suitable for ocean shipment |
| Delivery Time: | 50 working days after received deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300 sets per year |
| Product Name: | Door Frame Roll Forming Machine | Usage: | Door Application |
|---|---|---|---|
| Steel Thickness: | 1.2mm | Decoiler: | Manual |
| Power: | 7.5KW+5.5KW | Roller Material: | SAE1045 With Chrome |
| Drive: | 1.2inch Single Chain | Container Need: | 1X40GP |
| High Light: | Door Frame Making Machine,Cold Roll Forming Machine |
||

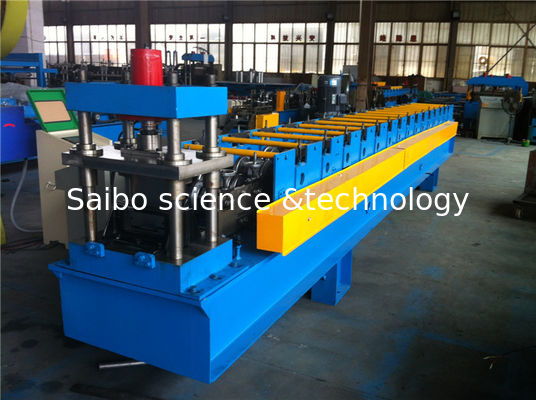

Door Frame Roll Forming Machine
Features and Structure:
*Multi-functional converter controlled speed regulation by PLC
*Main-machine interface touch screen for easy operation
*Automatic material feeding system
*The machine can be used for different types
*Automatic electric control system make production safety ang efficiency
*Solid shaft and high quality rollers make the machine working smoothly and endurable
*Low noise,low wasting ,energy saving and environmental
Profile:
All of our machine profile is customized, below profile is only for your reference.
1. Coil width: 284mm
2. Effective width: 169mm
3. Thickness: 1.2mm
Layout:
Manual de-coiler—Feeding—Roll Forming—Cutting—Out table
Specifications:
| Item NO |
Description |
Offered specification |
| 1 | Roll Forming Machine |
Door frame
|
| 2 | Coil width | 284mm |
| 3 | Rolling Speed | 12-15m/min(not include cutting & time) |
| 4 | Rolling Thickness | 1.2mm GI |
| 5 | Control System | PLC (Panasonic) as list in the note |
| 6 | Un Coiler | 3T manual decoiler |
| 7 | Roller Stations | About 16 stations (according the final design) |
| 8 | Roller Material | SAE1045 coated with chrome |
| 9 | Shaft Material and DIA | ￠65mm, material is 45# forge steel |
| 10 | Post cutting | Hydraulic cutting after forming |
| 11 | Maim Motor Power | 7.5kw |
| 12 | Hydraulic Station Power | 5.5kw |
| 13 | Hydraulic Pressure | 12-16Mpa adjustable |
| 14 | Material Of Cutting | Cr12Mov quenching 58-62℃ |
| 15 | Sturcture Of The Stations | Wall panel |
| 16 | Tolerance | 3m+-1.5mm |
| 17 | Electric Source |
380V, 50HZ,3 phase According to customer’s require
|
| 18 | Way Of Drive | By chain |
| 19 | Color Of The Machine | Yellow and blue |
| 20 | Size of the machine | L*W*H about 7.8m*1m*1.2m |
| 21 | Container Need | 1x40 feet |
Main Features
1. Simple structure in linear type ,easy in installation and maintenance.
2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3. Running in a high automatization and intellectualization, no pollution
4. No need foundation, easy operation
Packing & Delivery
Warranty
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
