Flying Saw Cutting Door Frame Making Machine 3 Ton 15 Stations

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/IS09001/SGS
Model Number: YX17-122.5
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Suitable for ocean shipment
Delivery Time: 55 working days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 330 sets per year
Detail Information
Product Name: Door Frame Roll Forming Machine Usage: Door Shutter
Steel Thickness: 0.5-0.8mm Decoiler: 3T Manual
Power: 5.5KW+3KW Roller Material: #45 Forged Steel With Chrome
Station: 15 Stations Drive: Chain
Container Need: 1X20GP
High Light:

Shutter Roll Forming Machine


Cold Roll Forming Machine

Product Description

YX17-122.5 Shutter Roll Forming Machine



All of our machine profile is customized, below profile is only for your reference.

1. Coil width: 193mm

2. Effective width: 122.5mm

3. Thickness: 0.5-0.8mm

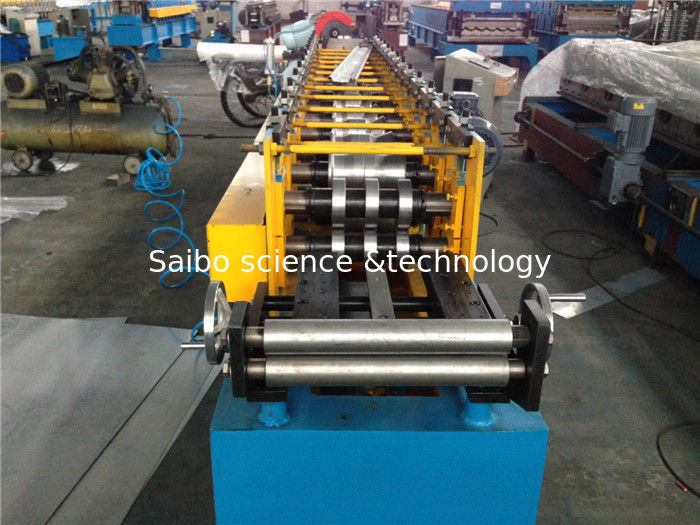

Flying Saw Cutting Door Frame Making Machine 3 Ton 15 Stations 0


Flying Saw Cutting Door Frame Making Machine 3 Ton 15 Stations 1

Manual de-coiler—Feeding—Roll Forming—Cutting—Out table



Item NO




Offered specification

1 Roll Forming Machine



2 Coil width 193mm
3 Rolling Speed 12-15m/min(not include cutting time)
4 Rolling Thickness 0.5-0.8mm GI
5 Control System PLC (Panasonic) as list in the note
6 Un Coiler 3T manual decoiler
7 Pre-cutting By manual
8 Roller Stations About 15 stations (according the final design)
9 Roller Material 45# forge steel, coated with chrome
10 Shaft Material and DIA ¢56mm, material is 45# forge steel
11 Post cutting Flying saw cutting after forming
12 Maim Motor Power 5.5kw
13 Material Of Cutting Cr12Mov quenching 58-62℃
14 Structure Of The Stations Wall panel
15 Tolerance 3m+-1.5mm
16 Electric Source

380V, 50HZ,3 phase

According to customer’s require


17 Way Of Drive By chain
18 Color Of The Machine Yellow and blue
21 Size of the machine L*W*H about 6.2m*1m*1.2m
22 Container Need 1x40 feet


Main Features

1. Simple structure in linear type ,easy in installation and maintenance.

2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.

3. Running in a high automatization and intellectualization, no pollution

4. No need foundation, easy operation
