Manual Decoiler Liner Panel Profile Roll Forming Machine 5.5kw Drive By Chain

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX12-289-1156
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T or L/C
Supply Ability: 300 sets per year
Detail Information
Product Name: Liner Panel Profile Roll Forming Machine Power: 5.5KW+4kw
Size Of Purlin: YX12-289-1156 Decoiler: Manual Or Hydraulic
Roller Material: ASTM1045 Chrome Plated Surface With Chrome Drive: By Chain
Container Need: 1X40GP Cutting System: Hydraulic Cutting System
High Light:

roof tile roll forming machine


metal roof forming machine

Product Description

Manual Decoiler Liner Panel Profile Roll Forming Machine 5.5kw Drive by chain


In the current market trend, aesthetics, sturdiness, and practicality are still a theme, and under this theme, color steel plates are undoubtedly more consistent. Therefore, the market share of color steel plates is still rising.
Because the color steel plate is light in weight, has good thermal insulation performance, low thermal conductivity, and relatively high strength, if the building uses this building material in the field of housing construction, beams and columns can be omitted, and this The houses built with color steel plates are generally very bright in color, which makes the surface look pretty without decoration. And such a building allows it to be maintained for 10 to 15 years. The life span is very long, which is in line with modern people's choice and is very durable.



1. Specification of the material



Suitable Material GI/PPGI



Width of the raw material According to the final profile
3 Thickness 0.3mm-0.8mm


2. Machine Detailed Parameters

1 Roll Forming Machine YX12-289-1156
  Machine structure Wall panel structure
2 Total power

Motor power-5.5kw

Hydraulic power-4kw

3 Roller stations About 18 stations
4 Productivity 0-15m/min
5 Drive system By chain
6 Diameter of shaft ¢70mm solid shaft



Voltage 380V 50Hz 3phases
  Color Of The Machine Yellow and blue



Container need 40GP container
  Deliver Time 70 days
  Terms Of Payment 30%T/T 70% pay before shipment




3. Profile drawing

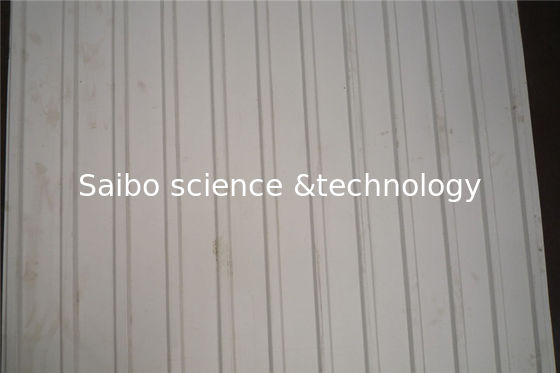

Manual Decoiler Liner Panel Profile Roll Forming Machine 5.5kw Drive By Chain 0


4. The Chart of Process Flow

Manual Decoiler Liner Panel Profile Roll Forming Machine 5.5kw Drive By Chain 1

5. Specification of Components

(1) 5T Manual Un-coiler

  • Width of feeding: 1250mm
  • Capability: 5 Ton
  • Inter diameter: 500-590mm
  • Maximal out diameter: 1500mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual


(2) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢70mm material: SAE1045 with quenching and tempering
  • Main frame by 350H beam welding
  • Machine structure: wall panel


(3) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Uses two hydraulic cylinders for operation.
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,4KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product

Installation of the Production Line

The Purchaser will provide;

  1. Media supply (electrics, compressed air, etc.) to the machine
  2. Raw material for testing the machine
  3. Transport and lifting devices
  4. Auxiliary staffs
  • The individual components of the lines will be installed in accordance with the layout drawings and then execute the test running stage
  • Installation will be done by the Seller’s Service and Installation Engineer(s).
  • Installation engineer(s) will install Machine/Line components
  • Installation engineer(s) will adjust Machine/Line components
  • Installation engineer(s) will connect of all motors to the control cabinet
  • Installation engineer(s) will install all required safety device
