Forge Steel Roof Panel Roll Forming Machinery 0.8mm 22 Stations

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: LYSAGHT KLIP-LOK 700
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T or L/C
Supply Ability: 300 sets per year
Detail Information
Product Name: LYSAGHT KLIP-LOK 700 Roll Forming Machine Power: 7.5KW+5.5kw
Steel Thickness: 0.3-0.8mm Size Of Purlin: LYSAGHT KLIP-LOK 700
Decoiler: 45# Forge Steel, Surface With Chrome Station: About 22 Stations
Productivity: 0-15m/min Color: Bule And Yellow
High Light:

Forge Steel Roof Panel Roll Forming Machine

,

0.8mm Roof Panel Forming Machine


Product Description

LYSAGHT KLIP-LOK 700 Roll Forming Machinery Manufacture for Sale



LYSAGHT KLIP-LOK® 700 is a new generation, widecover, concealed fixed cladding. Made of high tensile steel of 550 MPa yield strength, it has a wider span, with better uplift performance than all available comparable profiles. Visually, you get a bold rib that makes a strong statement rising from the flat pans that are cross micro fluted.

Our extensive research shows that thermal expansion and contraction can be controlled better using a concealed fixed system. Since the effect is on the longitudinal direction, wider coverage of LYSAGHT KLIP-LOK® 700 provides the best alternative. It is well suited to both general environment and coastal environment.

The profile is fixed on a specially designed clip known as KL-70, manufactured from high tensile steel base and designed tower to withhold high wind pressure. This provides accuracy, economy and ease during the installation and makes it a superior product designed to last long.

1. Specification of the material

1Suitable MaterialColored Steel plate, Galvanized steel
2Width of the raw materialAccording to final profile
3Thickness 0.3-0.8mm



2. Machine Detailed Parameters

1

Roll Forming Machine


LYSAGHT KLIP-LOK 700
2

Machine structure


Wall board structure
3Total power

Motor power-7.5kw
Hydraulic power-5.5kw

4

Roller stations


About 22 stations
5

Productivity


12-15m/min
6

Drive system


By chain,1.0 inch
7

Diameter of shaft


¢75mm solid shaft
8

Voltage


380V 50Hz 3phases (Customized)
9

Color Of The Machine


Bule and yellow
10

Deliver time


70 days
11

Terms Of Payment


30%T/T 70% pay before shipment


3. Profile drawing

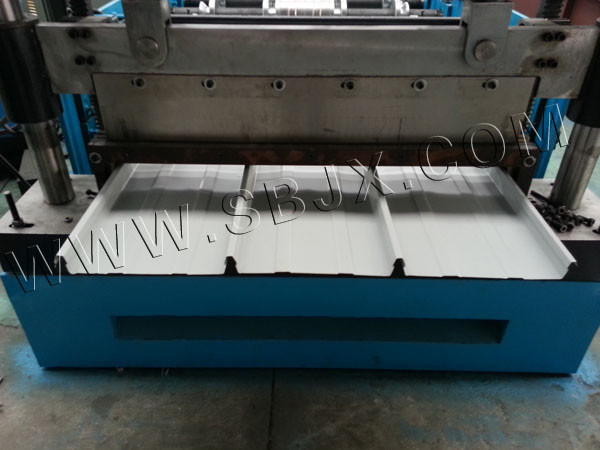

Forge Steel Roof Panel Roll Forming Machinery 0.8mm 22 Stations 0

4. The Chart of Process Flow

Hydraulic Uncoiler—Roll Forming—Cutting—Out table
Forge Steel Roof Panel Roll Forming Machinery 0.8mm 22 Stations 1


5. Specification of Components

(1) 5T Hydraulic Un-coiler

  • Width of feeding: 1250mm
  • Capability: 5 Ton
  • Inter diameter: 470-520mm
  • Maximal out diameter: 1500mm
  • Working speed: 0--20m/min adjustable
  • Main motor power: 5.5KW AC motor
  • Hydraulic power: 4kw


(2) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢70mm material: SAE1045 with quenching and tempering
  • Main frame by 350H beam welding
  • Machine structure: wall board


(3) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,4KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product


(4) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization
