Adjustable Standing Seam Roll Forming Machine Drvie By Chain With 20GP Container

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX610/760
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T or L/C
Supply Ability: 300 sets per year
Detail Information
Product Name: Standing Seam Roll Forming Machine Power: 5.5KW+4kw
Size Of Purlin: 610/760mm Steel Thickness: 0.45-0.8mm
Decoiler: Manual Decoiler On The Machine Station: About 15 Stations
Roller Material: 45#, Surface With Chrome Machine Structure: Wire Electrode Cutting Structure
Productivity: 0-15m/min
High Light:

Adjustable Standing Seam Roll Forming Machine

,

20GP Container Seam Roll Forming Machine

,

Standing seam roll former 0.8mm


Product Description

Standing seam roll forming machine



The state-of-the-art roll forming equipment is housed in 20 feet Container that can be mounted on trailors and transported to job sites.
The single biggest advantage of the system is that roof sheets can be roll formed as site in single length from ridge to eave upto 100 mtrs.

At site roof sheets can be roll formed at the ground level or at theroof level with supporting platform at roof level.



1. Specification of the material

1 Suitable Material PI/ PPGI, 345Mpa
2 Width of the raw material 610/760mm
3 Thickness 0.3-0.8mm




2. Machine Detailed Parameters

1

Roll Forming Machine



610/760mm
2

Machine structure



Wire electrode cutting structure
3 Total power

Motor power-5.5kw

Hydraulic power-4kw

4

Roller stations



About 15 stations
5

Productivity



0-15m/min
6

Drive system



By chain
7

Diameter of shaft



¢65mm solid shaft
8

Voltage



415V 50Hz 3phases (Customized)
9

Color Of The Machine



Bule and yellow
10

Deliver time



70 days
11

Terms Of Payment



30%T/T 70% pay before shipment



3. Profile drawing

Adjustable Standing Seam Roll Forming Machine Drvie By Chain With 20GP Container 0

Adjustable Standing Seam Roll Forming Machine Drvie By Chain With 20GP Container 1

4. The Chart of Process Flow



Manual Decoiler—Roll Forming—Cutting—Out table





5. Specification of Components



(1) Un-coiler



Option1: 5T Manual de-coiler

  • Width of feeding: 760mm
  • Capability: 5 Ton
  • Inter diameter: 450-600mm
  • Maximal out diameter: 1500mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual



(2) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢65mm material: SAE1045 with quenching and tempering



(3) Machine Structure

  • Main frame by 350H beam welding
  • Machine structure: wire electrode cuttting



(4) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,4KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product



(5) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization

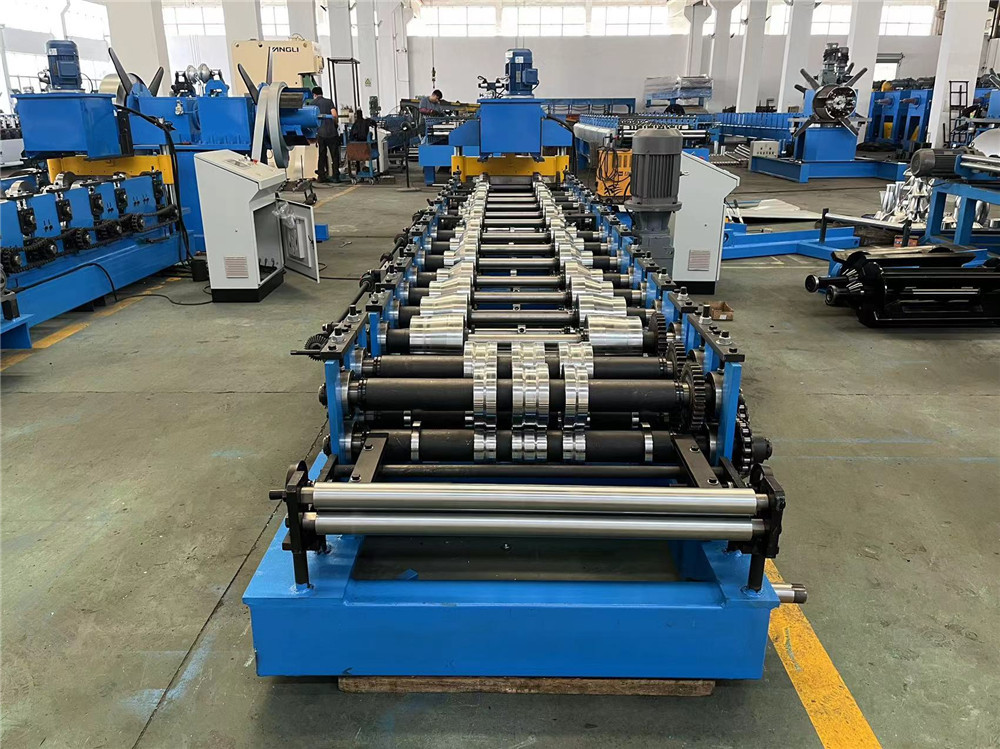

6.Photos for reference
