22kw Efficiency Strut Solar CU Channel Roll Forming Machine With PLC Control System

Basic Information
Place of Origin: China
Brand Name: Solar Roll Forming Machine
Model Number: CU
Minimum Order Quantity: 1set
Price: 40000
Packaging Details: Suitable for sea transportation
Delivery Time: 30days
Payment Terms: TT/LC
Supply Ability: 100sets
Detail Information
Shaft Diameter: 65mm Solid Shaft Control System: PLC
Roller Stations: About 14 Stations Cutting: Post Track Cutting
Hydraulic Cutting Power: 7.5kw Main Power: 22kw
Chang Size: Flange And Width Is Adjust By Hand Wheel Cutting Material: Cr12 With Heat Treatment 58-60°

Product Description

Product Description:

This machine is designed to handle steel thicknesses ranging from 0.8mm to 2.0mm, making it a versatile and reliable choice for a wide range of applications. The cutting material used in the machine is Cr12 with heat treatment 58-60°, which ensures that the machine is capable of producing precise and accurate cuts every time.

The Solar Roll Forming Machine features a 65mm solid shaft that is designed to provide reliable performance and durability over time. Additionally, the machine's chang size is adjustable via a hand wheel, making it easy to adjust the flange and width as needed to produce the desired product.

The machine has about 14 roller stations, which ensures that it is capable of producing high-quality roll-formed products with consistent accuracy and precision. The machine is also designed to be fully automatic, which means that it can operate with minimal human intervention, ensuring that production is efficient and cost-effective.

Overall, the Solar Roll Forming Machine is a reliable and efficient choice for anyone looking to produce high-quality strut roll forming products. Its solid construction and adjustable features make it ideal for a wide range of applications, and its full automation ensures that production is streamlined and cost-effective.



Features:

  • Product Name: Solar Roll Forming Machine
  • Control System: PLC
  • Roller Stations: About 14 Stations
  • Shaft Diameter: 65mm Solid Shaft
  • Cutting: Post Track Cutting
  • Steel Thickness: 0.8-2.0mm
  • Features:
    • With post cutting
    • Guide Rail roll forming machine
    • Full automatic


Technical Parameters:

Technical Parameters Specifications
Shaft Diameter 65mm Solid Shaft
Control System PLC
Chang Size Flange And Width Is Adjust By Hand Wheel
Cutting Material Cr12 With Heat Treatment 58-60°
Main Power 22kw
Hydraulic Cutting Power 7.5kw
Steel Thickness 0.8-2.0mm
Cutting Post Track Cutting
Roller Stations About 14 Stations
Raw Material Carbon Steel, 345Mpa
Features With post cutting, Full automatic

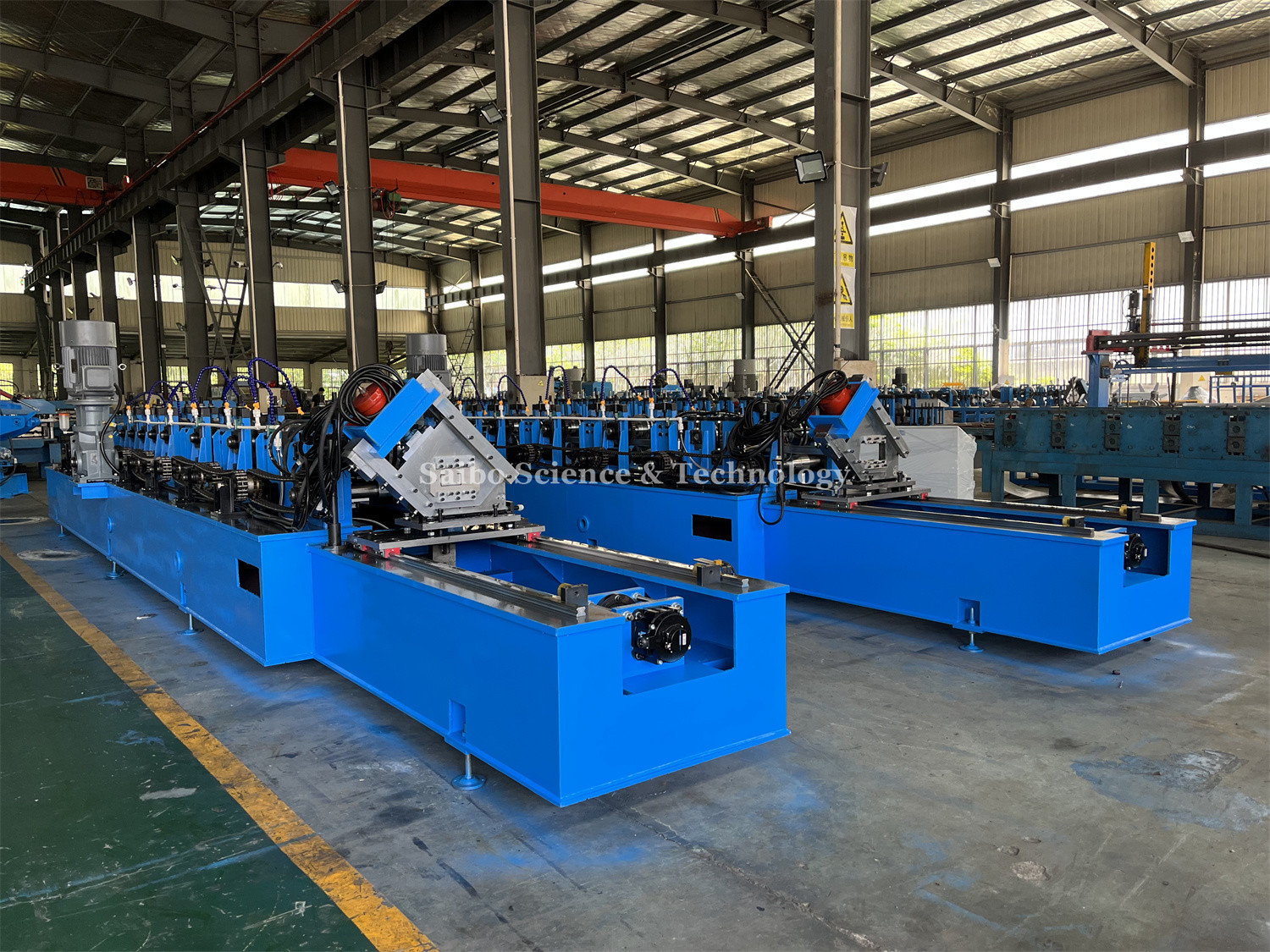

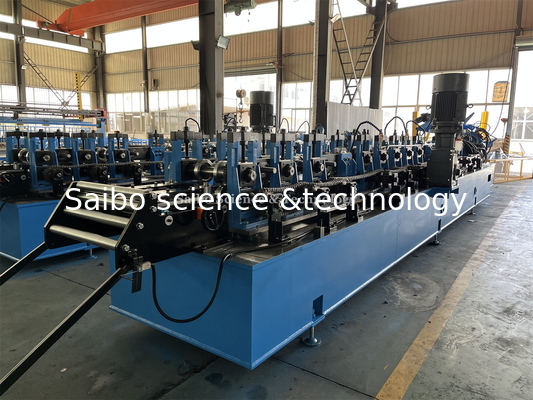

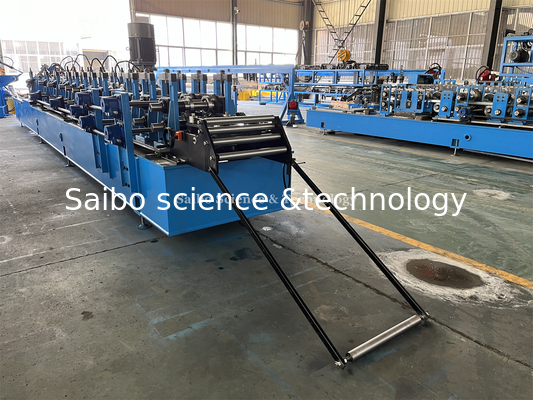

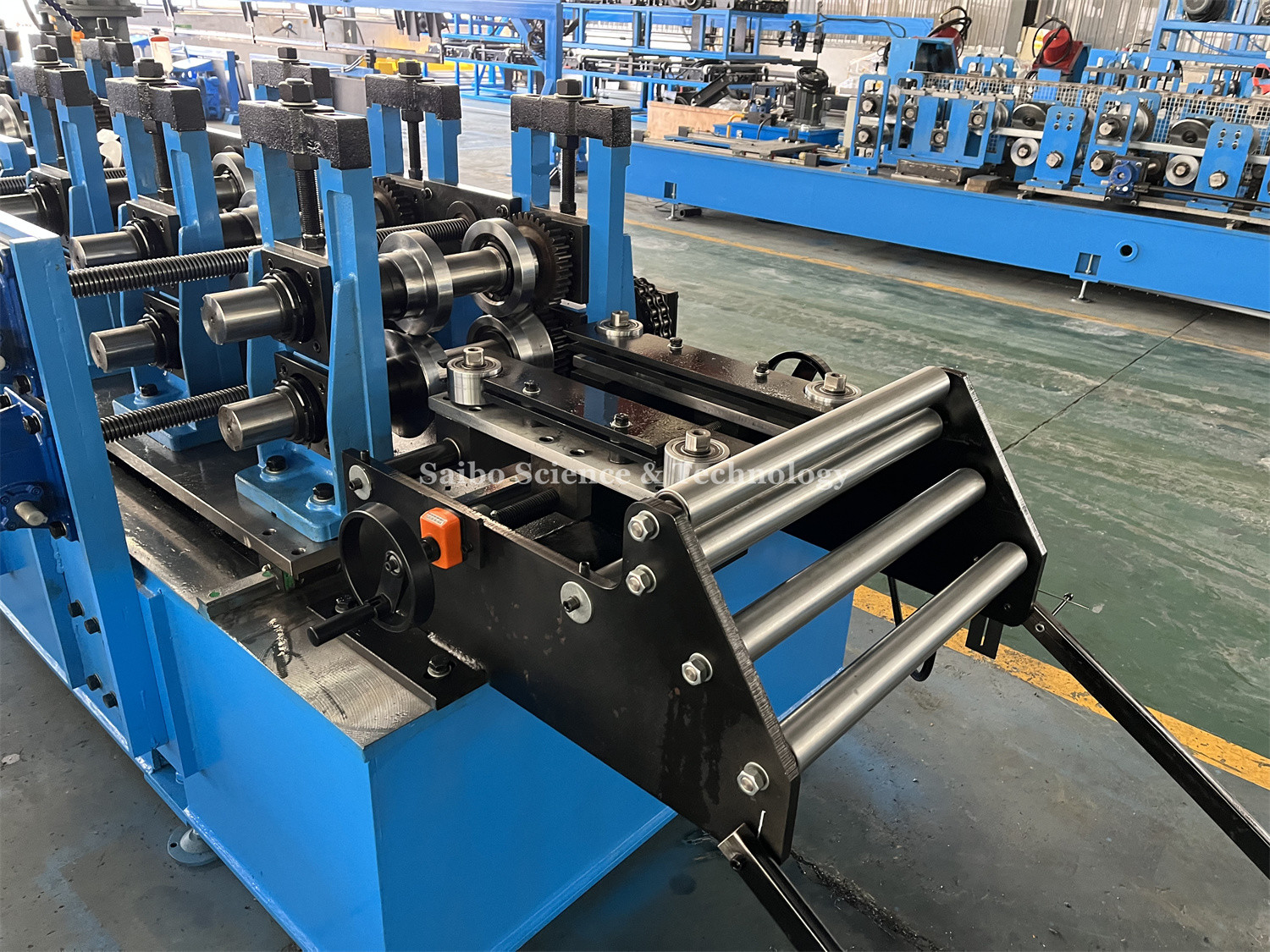

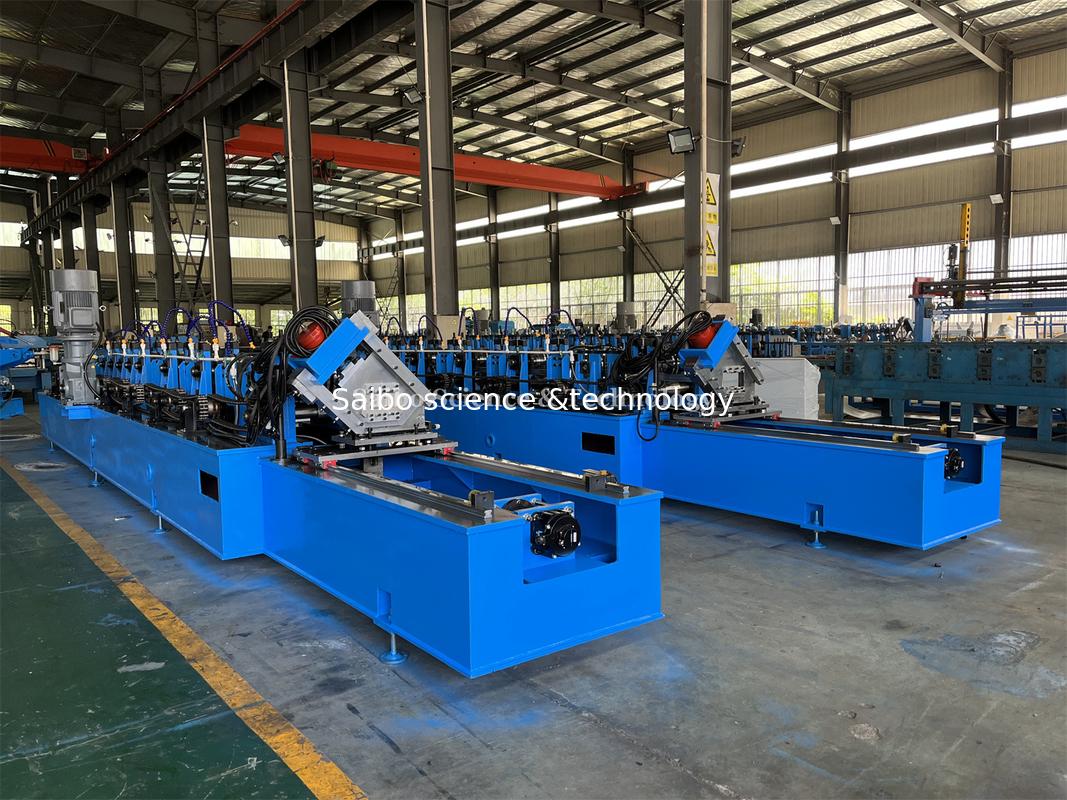

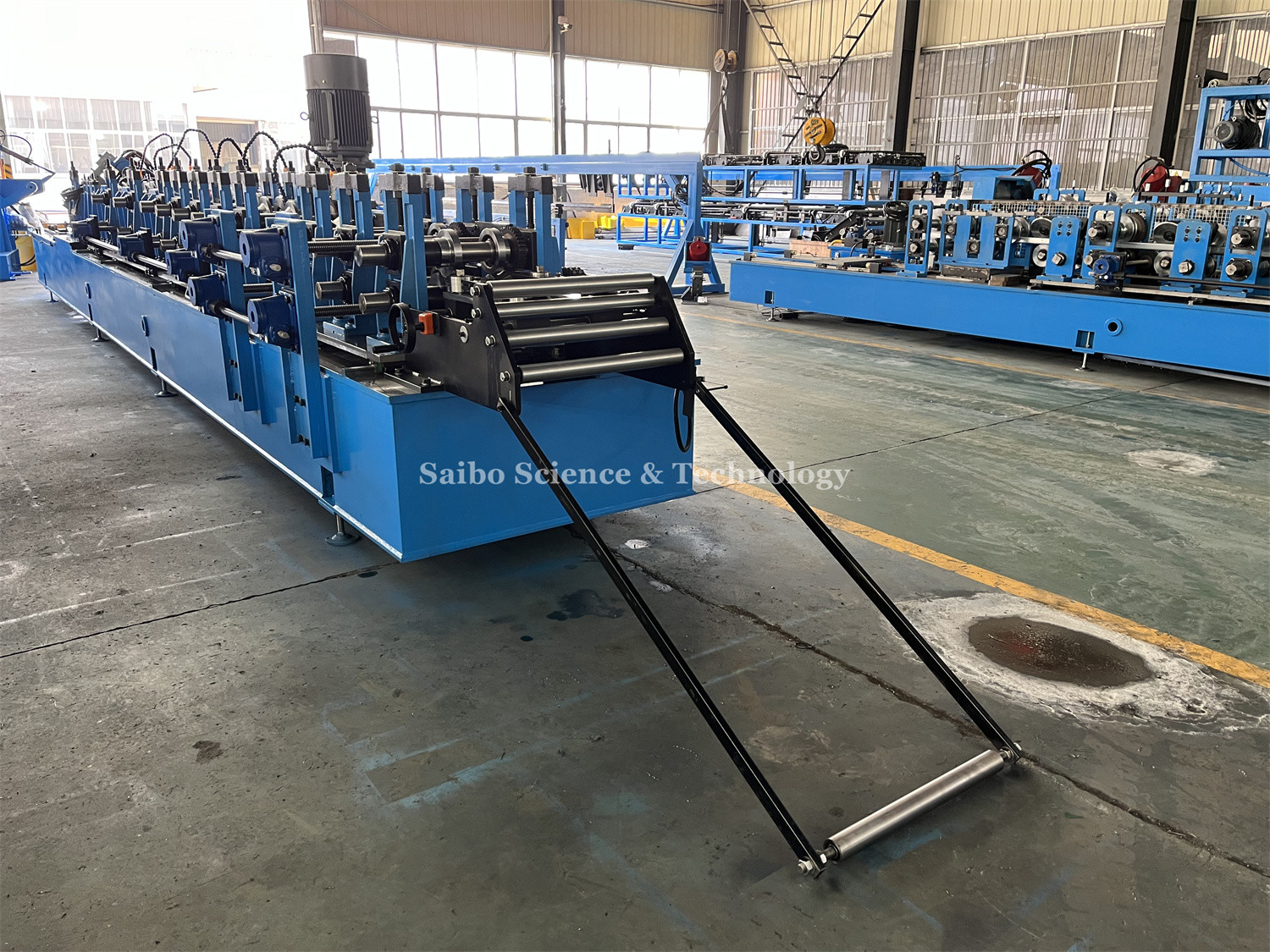

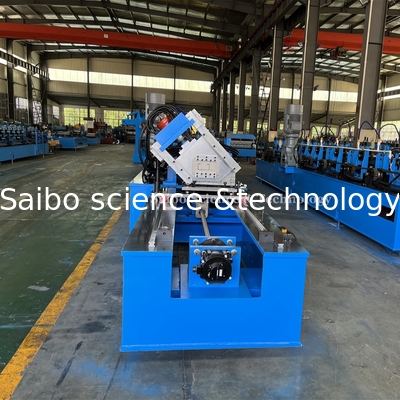

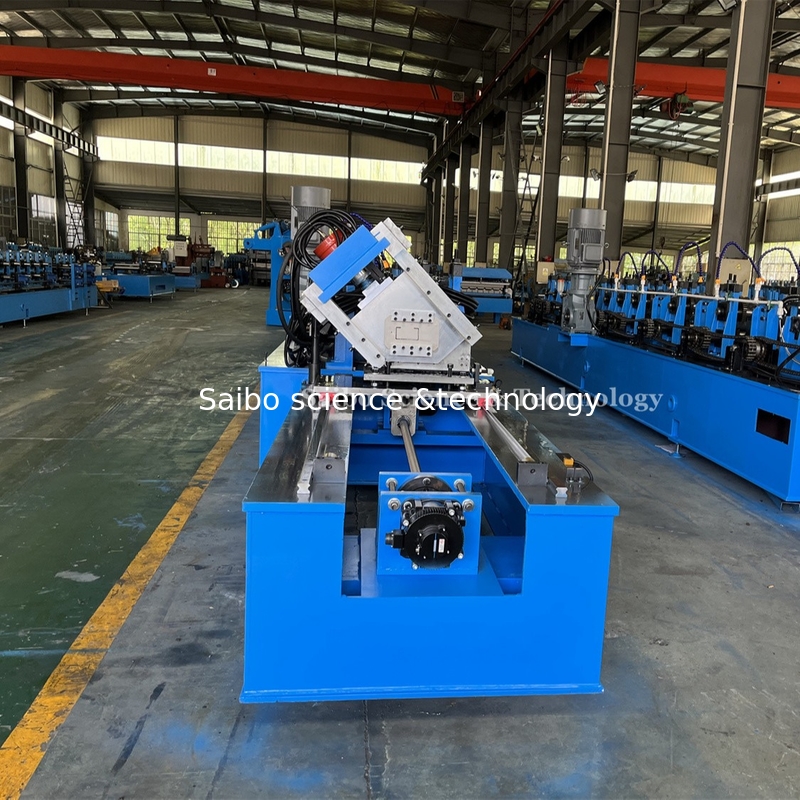

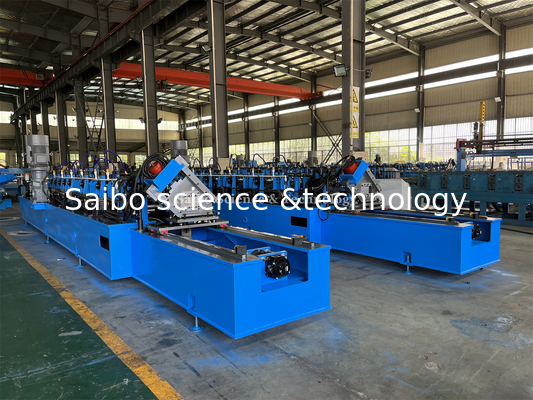

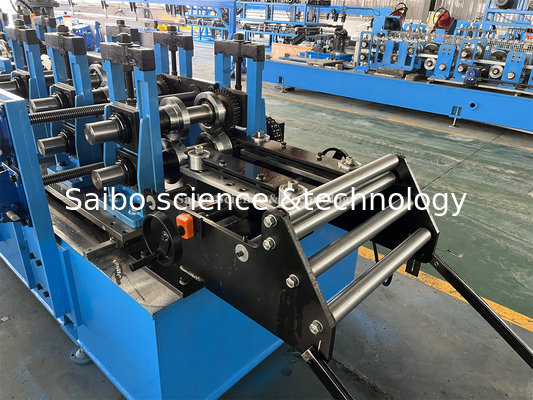

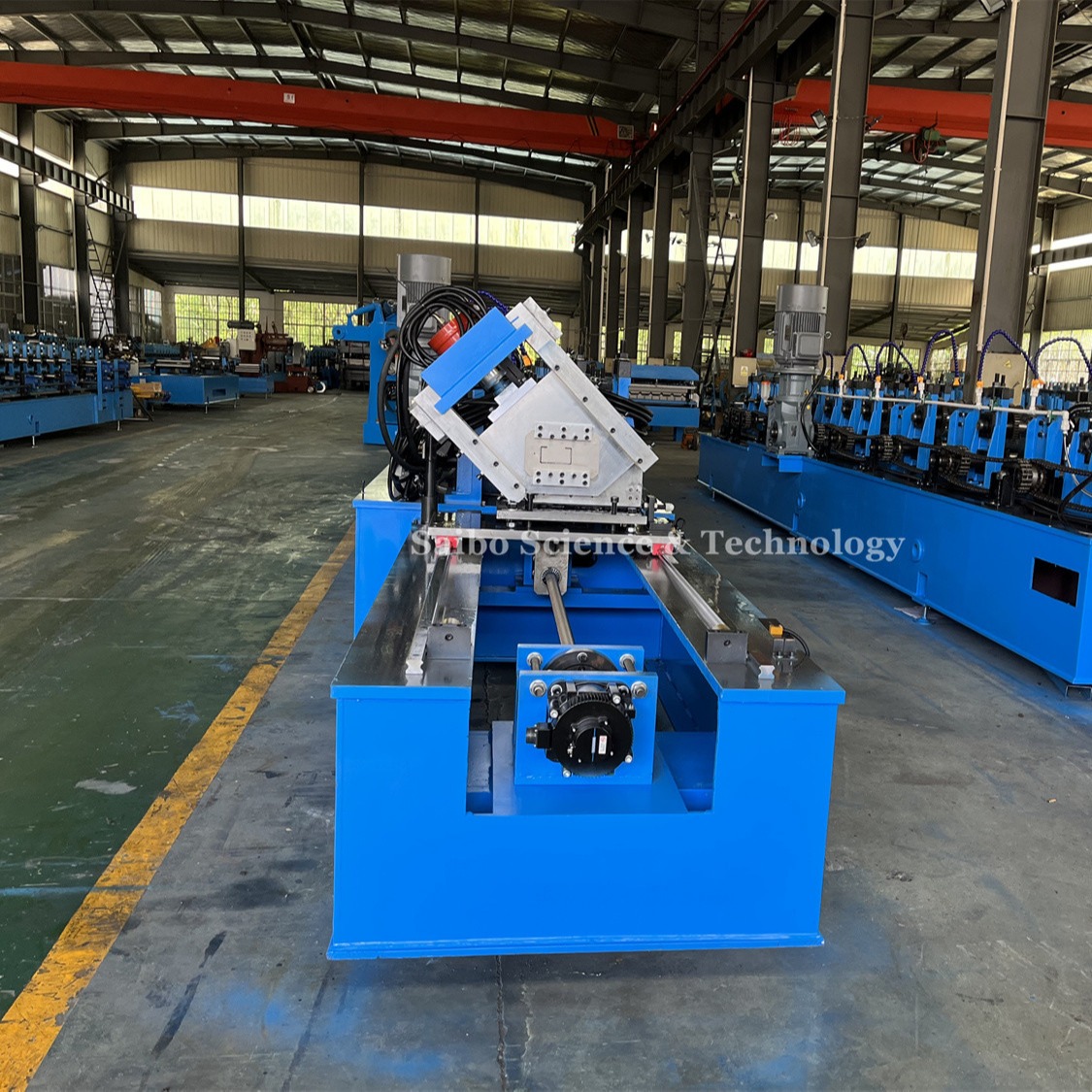

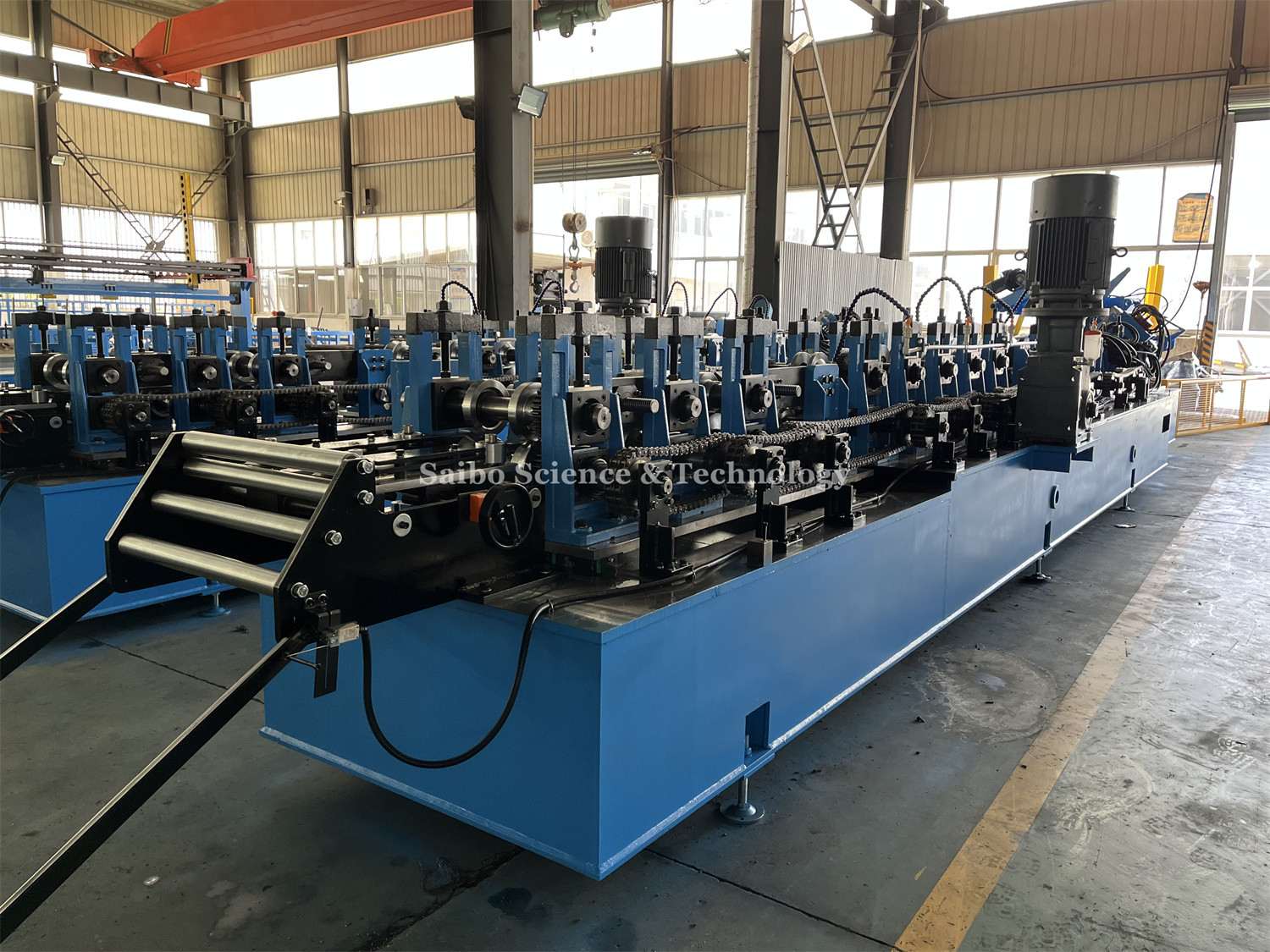

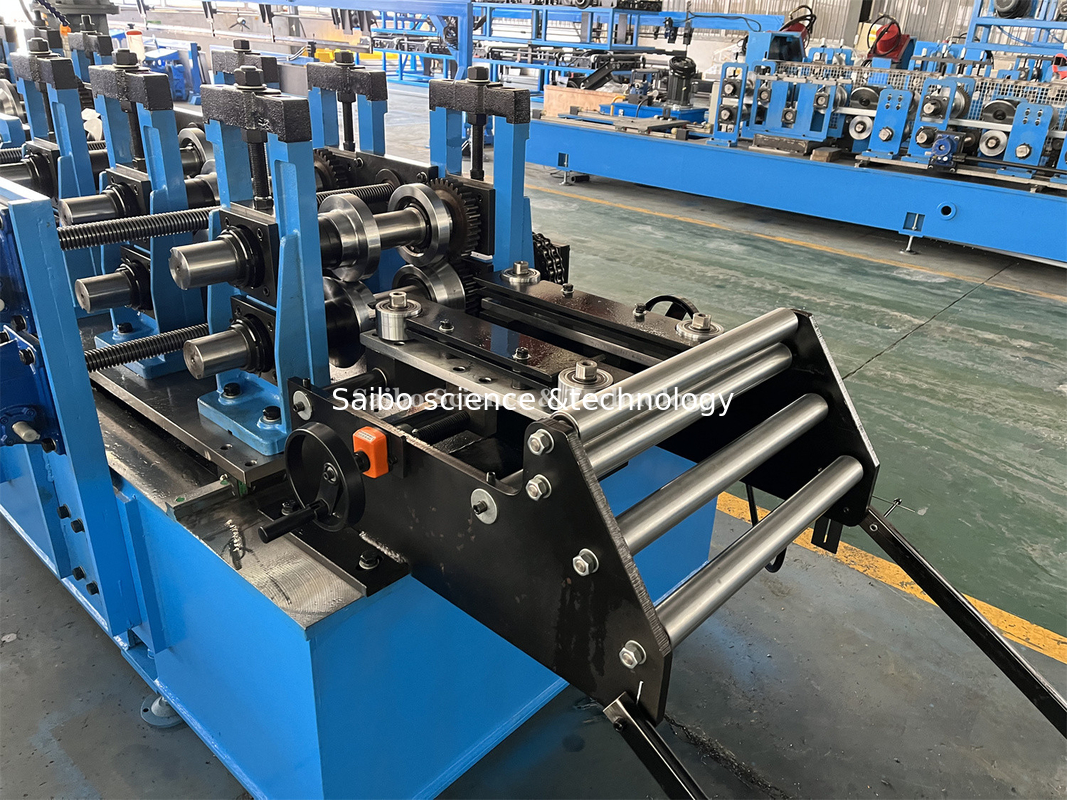

Machine photos for reference

22kw Efficiency Strut Solar CU Channel Roll Forming Machine With PLC Control System 022kw Efficiency Strut Solar CU Channel Roll Forming Machine With PLC Control System 122kw Efficiency Strut Solar CU Channel Roll Forming Machine With PLC Control System 2

Applications:

  • Construction sites
  • Industrial factories
  • Roofing contractors
  • Manufacturing plants

The Solar Roll Forming Machine CU model is a full automatic machine that can be used to create various shapes and sizes of metal sheets. It is capable of forming steel thickness ranging from 0.8-2.0mm. The machine can be used to produce metal sheets with a width and flange that can be adjusted by handwheel. The machine is capable of producing high-quality sheets with a raw material of carbon steel, 345Mpa.

The Solar Roll Forming Machine CU model is equipped with a 65mm solid shaft that provides excellent stability and durability. This makes the machine suitable for use in heavy-duty applications that require high precision and accuracy. The machine is also equipped with track cutting, which ensures that the sheets are cut to the desired length with high precision. This makes it ideal for use in applications that require high precision and accuracy.

The Solar Roll Forming Machine CU model has a minimum order quantity of 1 set and is priced at 40000. The packaging details are suitable for sea transportation, and the delivery time is 30 days. The payment terms are TT/LC, and the supply ability is 100 sets. This machine is an excellent investment for any business that requires high-quality metal sheets for their applications.



Packing and Shipping:

Product Packaging:

  • Dimensions: 2.5m x 1.5m x 1.8m
  • Gross weight: 1500kg
  • Wrapped in protective film
  • Packed in sturdy wooden crate

Shipping:

  • Ships worldwide
  • Delivery time: 4-6 weeks
  • Shipping method: Sea freight
  • Shipping cost: Calculated at checkout


FAQ:

A: The minimum order quantity for Solar Roll Forming Machine CU is 1 set.

2. Q: What is the price of Solar Roll Forming Machine CU?

A: The price of Solar Roll Forming Machine CU is $40,000 USD.

3. Q: Where is Solar Roll Forming Machine CU made?

A: Solar Roll Forming Machine CU is made in China.

4. Q: What is the delivery time for Solar Roll Forming Machine CU?

A: The delivery time for Solar Roll Forming Machine CU is 30 days.

5. Q: What are the payment terms for Solar Roll Forming Machine CU?

A: The payment terms for Solar Roll Forming Machine CU are TT/LC.
