High Speed Automatic Cable Tray Roll Former Precision Forming PLC Control

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Model NO.:

Cable Tray Forming Machine

Certification:

Security Properties:

Stable And Reliable

Environmental Protection:

Sustainable Development

Package Size:

25000mm*3000mm*1500mmm

Package Gross Weight:

6000.000kg

Warranty:

1 Year

Accuracy:

High Accuracy

Economy:

High Efficiency

Production Capacity:

500ppieces/Year

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

automatic cable tray roll former

automatic cable tray roll forming machine manufacturers

plc cable tray roll former

Product Description

Cable Tray Roll Forming Machine High Speed Automatic Cable Management System Production Line

The Automatic Mechanical Cable Tray High-Speed Metal Forming Machine is a specialized production line designed for manufacturing various types of cable trays used in electrical and construction systems. It processes metal coils through a continuous workflow—including uncoiling, leveling, punching, roll forming, and cutting—to produce precise tray profiles such as ladder, trough, and channel types.

One of the key advantages of this machine is its high-speed forming capability combined with stable performance. With multiple forming stations (typically around 28 processes), it gradually shapes the material to achieve accurate dimensions and smooth finishes. This allows manufacturers to maintain both speed and quality, making it ideal for large-scale projects such as data centers, industrial facilities, and commercial buildings.

The machine is highly adaptable, supporting different material types like cold-rolled and galvanized steel, as well as a wide range of widths and thicknesses. Its advanced punching and cutting system ensures precise hole positioning and clean edges, which simplifies installation and improves the final product's functionality.

Dongguang Hengfu Roll Forming Machine Co., Ltd. has developed this equipment with a strong focus on automation, precision, and reliability. Their machines offer stable operation, low processing loss, and long service life, supported by comprehensive technical service and global export experience.

Technical Specifications

Model NO	Cable tray forming machine
Condition	New
Feed width	200~1250mm
Molding process	about 28 processes
Transmission method	Chain wheel chain transmission
Spindle diameter	Φ 70mm
Forming frame	H400 steel welding
Electric control system	PLC
Punching working method	Punching with a punch press
Automatic Grade	Automatic
Transport Package	Container
Customized	Customized
Origin	Cangzhou, Hebei
Warranty	1 year

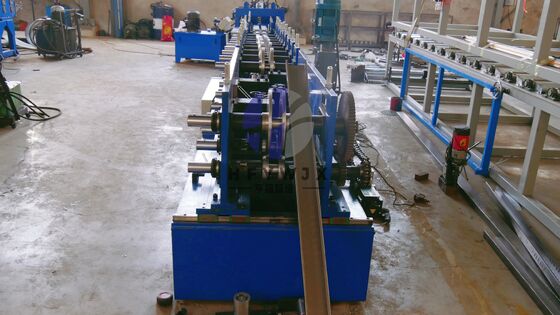

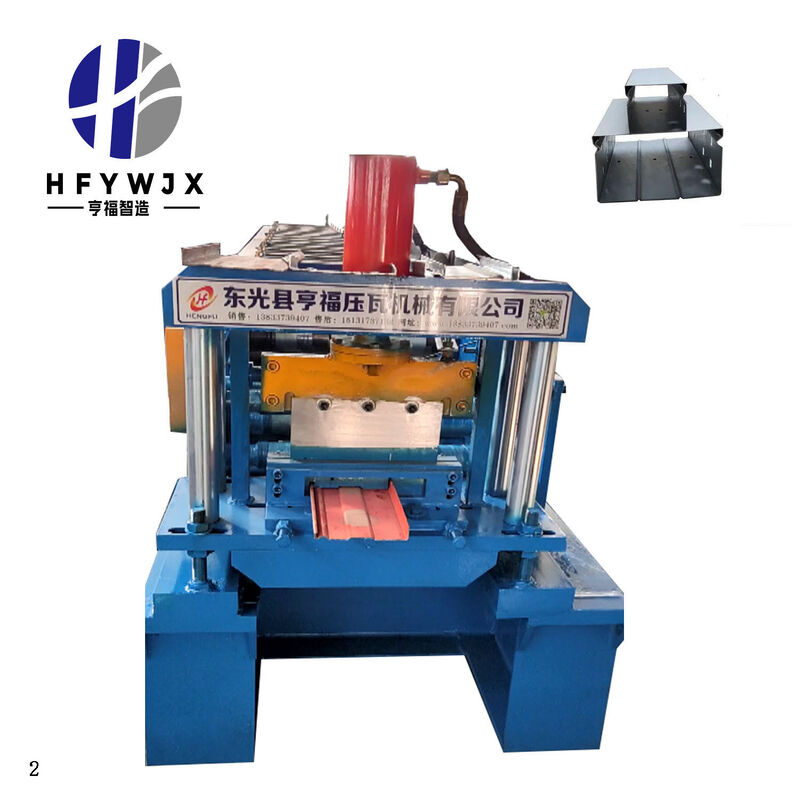

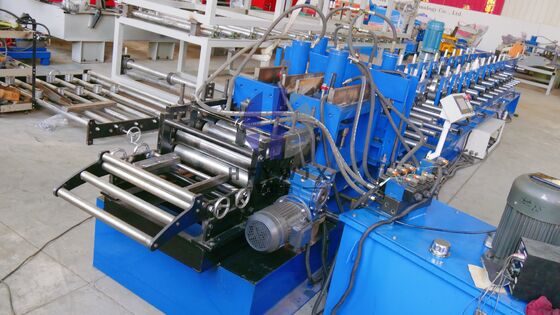

Product Gallery

Frequently Asked Questions

Is it normal for burrs to appear on the cut edges of the sheet metal after cutting?

Minor burrs are normal and acceptable; however, severe burrs are typically caused by a dull cutting blade or improper blade clearance.

How should the machine be stored when not in use for an extended period?

Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.

How many people are required to operate the machine?

It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.

How long is the warranty period?

The entire machine comes with a 12-month warranty, excluding wear parts.

Can a single machine produce multiple types of profiles?

Standard models are typically designed to produce one specific profile type per machine. However, customizable models—such as those with interchangeable rollers, double-layer machines, or triple-layer machines—can be configured to enable a single machine to serve multiple purposes.
