| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |

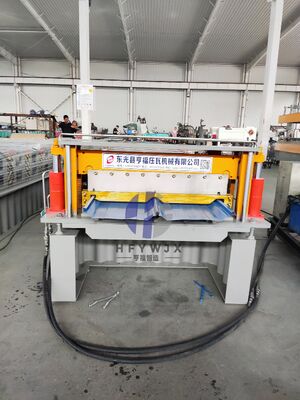

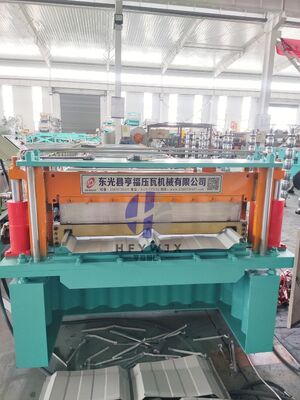

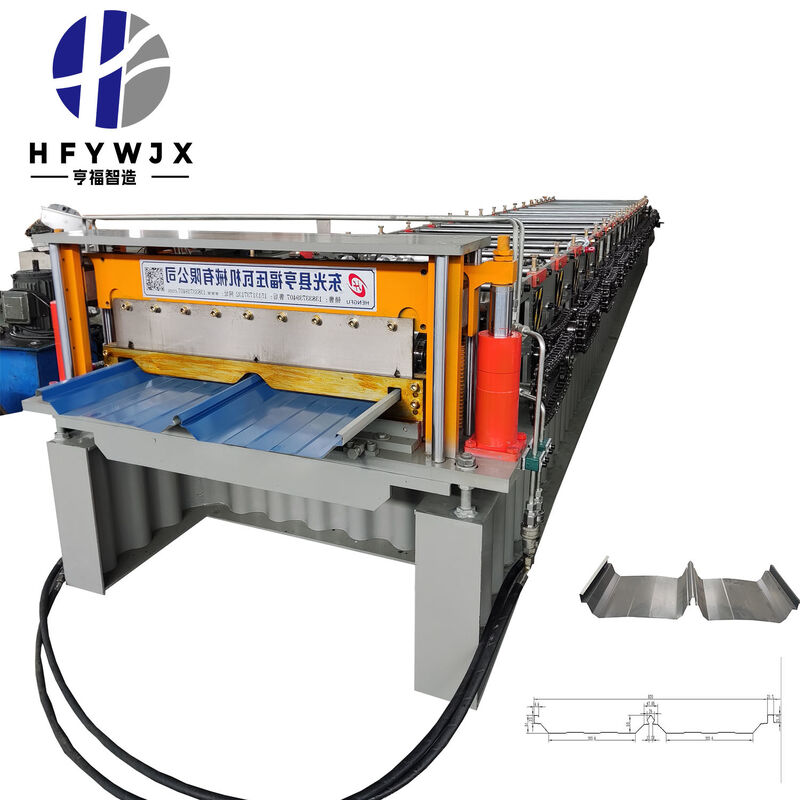

This high-altitude roll forming linear guide rail shearing equipment is a CNC intelligent operation solution customized for industrial production. It integrates roll forming and shearing processes to meet personalized user requirements.
The main framework is constructed from 400H steel, providing high strength and excellent rigidity for stable equipment operation. The rolls are made from 45# steel and undergo precision processing including rough turning, finish turning, outer circle grinding, and electroplating, ensuring high hardness and wear resistance for precise forming.

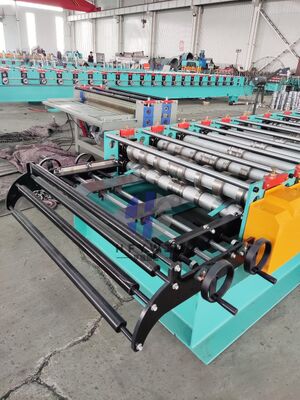

Equipped with 20 rows of forming rolling mill units and a Φ70mm spindle, the machine delivers strong transmission performance for continuous linear guide rail production. The dual-hand rocking feeding rack provides safe and reliable manual operation control.
After forming, the straight guide rail undergoes shearing with the capability to cut three pieces simultaneously, significantly improving production efficiency. The CNC intelligent operation system enables automatic control throughout the production process, reducing labor intensity while ensuring consistent product quality for various mechanical equipment applications.
| Specification | Details |
|---|---|
| Model NO. | 820 |
| Condition | New |
| Usage | Roof, Wall, Building |
| Feeding Width | 1000mm |
| Machine Frame | 400H steel frame |
| Forming Speed | 0-35M/min |
| Type of Driven | Chain Transmission |
| Transmission Method | Hydraulic pressure |
| Number of Rolling Mill Sets | 20 row molding |
| Spindle Diameter | Φ70mm (Solid shaft) |
| Feeding Method | Double hand rocking feeding rack |
| Specification | 9300mm x 1400mm x 1100mm |
| Origin | Cangzhou, Hebei |
| Warranty | 1 year |
| Raw Materials | Aluminum magnesium manganese |
The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
