High Precision Automatic 820 Standing Seam Roll Former CNC Intelligent Operating System And 20 Sets

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Tile Type:

Colored Steel

Certification:

CE, SGS

Condition:

New

Customized:

Customized

Usage:

Roof, Wall

Transmission Method:

Hydraulic Pressure

Transmission Mode:

1.2-Inch Quenched Chain

Cutting Method:

Linear Guide Rail Cutting

Transport Package:

Plastic Film & Steel Wire Fixed

Specification:

9300mmx1400mmx1100mm

Package Size:

930.00cm * 140.00cm * 110.00cm

Package Gross Weight:

6500.000kg

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

820 standing seam roll former

standing seam roll former cnc

automatic standing seam metal roof roll former

Product Description

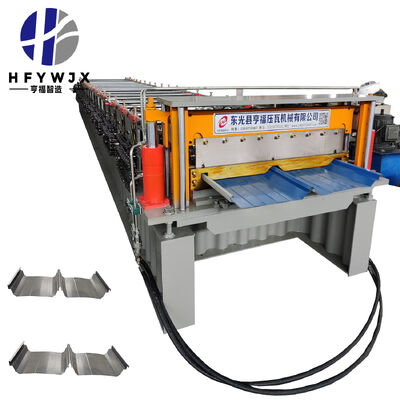

High Precision Automatic 820 Roll Forming Machine

This high-altitude roll forming linear guide rail shearing machine is equipped with a CNC intelligent operating system, fully customizable to meet customers' actual production needs, serving as an efficient automated solution in the metal forming industry. Centered on high-precision roll forming, the equipment integrates linear guide rail shearing technology, balancing production efficiency and processing accuracy, and providing stable and reliable production support for industrial manufacturing.

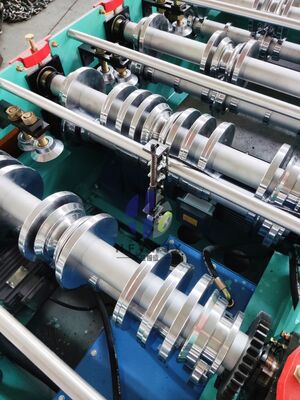

The main frame of the equipment is made of 400H steel, featuring excellent structural strength and load resistance, which can withstand long-term high-intensity production operations and ensure the stability and service life of the equipment. The core rolls are made of 45# steel, processed through multiple precision procedures including rough turning, finish turning, and outer circle grinding, followed by electroplating treatment, which greatly improves the wear resistance, hardness and surface finish of the rolls, ensuring the dimensional accuracy and surface quality of the formed workpieces.

The equipment is equipped with 20 sets of forming rolling mill units, which can meet the continuous roll forming requirements of workpieces with complex sections and adapt to the processing of various specifications of linear guide rail workpieces. The spindle diameter reaches Φ70mm, providing strong transmission torque for the equipment and ensuring stable operation under heavy-load processing conditions.

The equipment adopts the process logic of "shearing after forming". With the precise positioning of the straight guide rail, it can complete the synchronous cutting of three workpieces at one time, greatly improving processing efficiency and reducing process flow time. The CNC intelligent operating system realizes full-process automatic control, reduces manual operation errors, improves processing consistency, and supports parameter adjustment, which can quickly adapt to the production needs of workpieces of different specifications and realize flexible production.

This equipment is widely used in the roll forming and shearing processing of metal workpieces such as linear guide rails and hardware profiles, meeting the production needs of many industries such as construction hardware, machinery manufacturing, and automation equipment, providing customers with a one-stop metal forming solution from customized design to efficient mass production.

Technical Specifications

Model NO.	820
Condition	New
Usage	Roof, Wall
Feeding Width	1000mm
Machine Frame	400H steel frame
Forming Speed	0-35M/min
Color	Customized
Type of Driven	Chain Transmission
Transmission Method	Hydraulic pressure
Number of rolling mill sets	20 row molding
Spindle diameter	Φ70mm (Solid shaft)
Customized	Customized
Feeding method	Double hand rocking feeding rack
Specification	9300mm x 1400mm x 1100mm
Origin	Cangzhou, Hebei
Warranty	1 year
Usage	Building
Raw materials	Aluminum magnesium manganese
Feed width	1000mm

Product Gallery

Frequently Asked Questions

How long is the warranty period?

The entire machine comes with a 12-month warranty, excluding wear parts.

Do you have customers for your equipment in our country?

Yes, we have established customers in the Middle East, North Africa, and various European countries.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

How many people are required to operate the machine?

It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.

How can issues such as skewed or off-center sheet feeding be resolved?

The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
