High Accuracy Round Duct Flange Forming Machine With Smooth Operation And Durable

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Model NO.:

Circular Flange Forming Machine

Maintenance:

Friendly

Efficiency:

High-Efficiency

Transport Package:

Plastic Film & Steel Wire Fixed

Origin:

Cangzhou, Hebei

Production Capacity:

500pieces/Year

Warranty:

1 Year

Operation:

Stability:

Strong Stability

Specification:

7000mmx2000mmx1800mm

HS Code:

8455221000

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

round duct flange forming machine

smooth flange making machine

smooth flange forming machine

Product Description

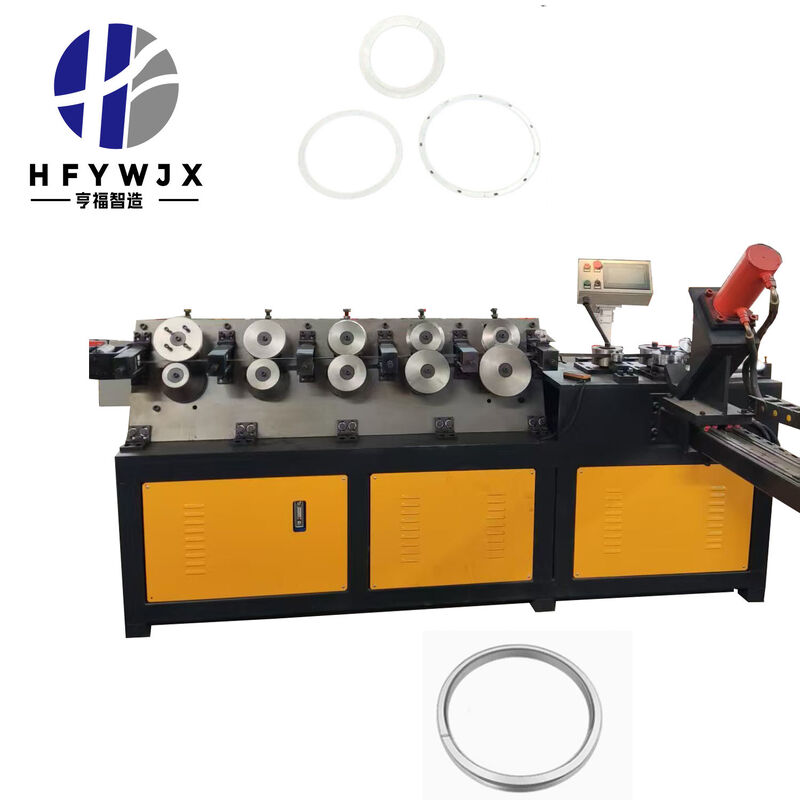

Round Duct Flange Forming Machine

This Automated Flange Former Hydraulic Round Flange Forming Machine is a precision industrial solution engineered for efficient and consistent production of round flanges used in HVAC ductwork, pipeline connections, and structural assemblies. Designed with an integrated hydraulic forming system, it accurately shapes metal strips into strong, smooth flanges with uniform bending and dimensional control, meeting the strict quality standards required in modern fabrication.

The machine frame is constructed from heavy-duty square-tube steel and supported by an overall iron plate platform that enhances rigidity and long-term durability during continuous operation. Its robust forming components and linear arc transmission ensure stable material control and reduced deformation throughout the bending process, resulting in high-precision flange geometry.

Equipped with an automated hydraulic system, this flange former delivers powerful forming force with smooth and reliable movement. The hydraulic mechanism enables consistent repeatability and stable output, significantly improving production efficiency and reducing manual intervention. Operators can achieve precise diameter adjustment, ensuring compatibility with a wide range of flange sizes.

The user-oriented PLC control system and intuitive interface allow for easy setup and quick changeovers. Users can program forming parameters such as flange diameter, material type, and production speed, enabling flexible customization for specific project needs. Automated feeding, forming, and cutting processes enhance workflow efficiency and shorten cycle times.

Dongguang Hengfu Roll Forming Machine Co., Ltd. is recognized for delivering top-tier manufacturing equipment with meticulous craftsmanship, precision engineering, and exceptional reliability. Their flange forming machines are built with premium components and undergo stringent quality checks to ensure long service life and stable performance. With comprehensive after-sales support and strong technical expertise, Hengfu provides customers with dependable production solutions that elevate operational productivity.

Technical Specifications

Machine Frame	80*80 square tube large frame style
Machine Platform	Overall iron plate platform
Tile Box	Upper removable tile box
Angle Shear Axis	50 (Material: Cr40 tempered)
Transmission Mode	1.2-inch quenched chain transmission
Forming	5 rows of forming linear guide arc transmission
Round Diameter	200-1600mm
Pressing Plate Thickness	1.5-3mm carbon steel, 1.2-2mm stainless steel

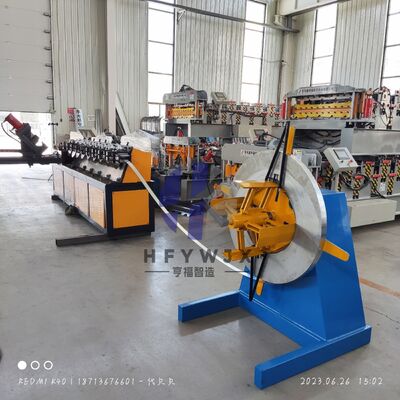

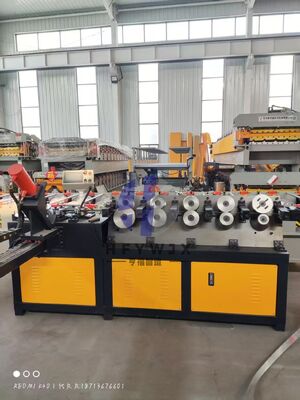

Product Images

Frequently Asked Questions

Can you provide semi-automatic or fully automatic receiving tables?

Yes, optional configurations include pneumatic receiving, hydraulic receiving, and automatic stackers.

What checks need to be performed before starting the machine?

Check the lubrication, voltage, emergency stop button, cutter position, feed guides, etc.

There are no professional maintenance personnel available locally; what should we do in the long run?

We provide lifetime remote video guidance; most issues do not require on-site repair.

Is the length of the discharge rack adjustable?

Yes, our standard telescopic discharge rack can be adjusted to accommodate sheet materials of varying lengths.

Can it be integrated into a complete color steel production line?

Yes, it can—forming a fully automated line covering uncoiling, leveling, roll forming, shearing, and stacking.
