Industrial Round Flange Forming Machine With 1.5-3mm Carbon Steel Plate And 1.2Inch Quenched Chain Transmission

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Package Size:

700.00cm * 200.00cm * 180.00cm

Package Gross Weight:

5000.000kg

Stability:

Strong Stability

Operational Attribute:

Easy To Operate

Applicability:

Suitable For Different Materials Of Metal

Precision:

Meet The Flange Accuracy Requirements Of Various I

Transport Package:

Plastic Film & Steel Wire Fixed

Origin:

Cangzhou, Hebei

HS Code:

8474801000

Warranty:

1 Year

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

industrial round flange forming machine

industrial tdf flange forming machine

3mm tdf flange forming machine

Product Description

Industrial Circular Flange Making Machine

Dongguang Hengfu Roll Forming Machine Co., Ltd. delivers a high-performance, fully automatic HVAC pipe flange making machine engineered for stable, efficient, and precise flange production. Designed specifically for the HVAC and ventilation industry, this machine combines robust structure, advanced transmission technology, and user-friendly operation to meet modern manufacturing demands.

This round flange forming machine supports a wide processing range, producing flanges with diameters from 200mm to 1600mm, making it highly adaptable for various ductwork projects. It efficiently processes carbon steel (1.5-3mm) and stainless steel (1.2-2mm), delivering stable forming even with different metal materials.

Key Features

Built for heavy-duty operation, the machine features a 5-row forming linear guide arc transmission system that ensures smooth, accurate, and stable flange forming. It uses a 1.2-inch quenched chain drive for reliable power delivery and low wear, while the Cr40 tempered angle shear axis guarantees clean cutting and long-lasting durability.

The machine offers full-automatic operation with strong stability and high forming precision, fully meeting the strict accuracy requirements of HVAC flange production. With a compact footprint of 7000mm × 2000mm × 1800mm, the machine fits well in standard workshops while maintaining excellent structural rigidity.

Technical Specifications

Product Name	Round flange forming machine
Suitable Material	Carbon steel plate, stainless steel plate
Tile Box	Upper removable tile box
Angle Shear Axis	50 (Material: Cr40 tempered)
Transmission Mode	1.2-inch quenched chain transmission
Forming System	5 rows of forming linear guide arc transmission
Round Diameter	200-1600mm
Pressing Plate Thickness	1.5-3mm carbon steel, 1.2-2mm stainless steel
Color	Customized

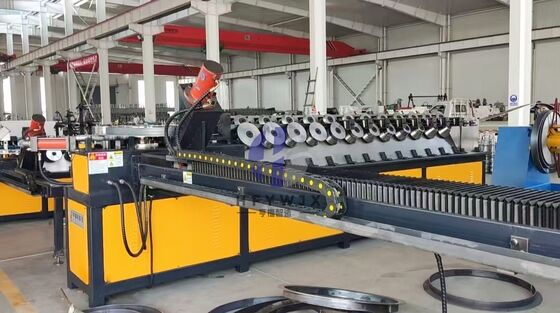

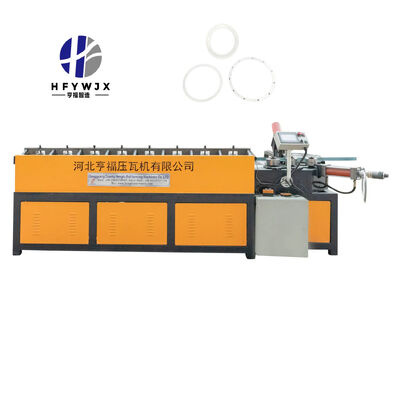

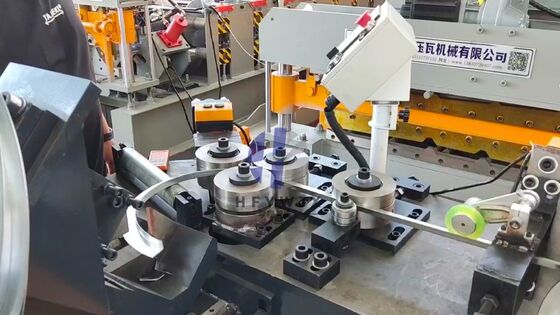

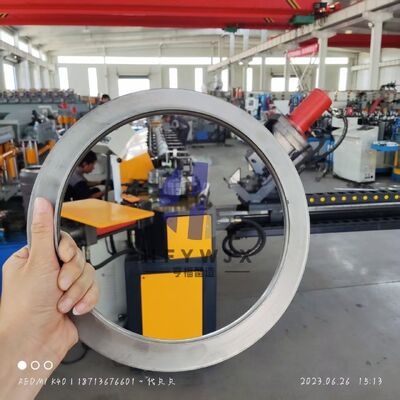

Product Images

Frequently Asked Questions

What are the available cutting methods?

Hydraulic Flying Shear or Servo Tracking Flying Shear (Higher precision, faster speed, burr-free cuts)

What is the structure of the machine frame?

It features a fully welded steel plate frame, constructed from thickened steel plates that have undergone stress-relieving annealing to ensure they remain free from deformation.

What types of profiles can you produce?

Trapezoidal roof panels, corrugated sheets, floor decking, C/Z-purlins, columns/beams, hoarding panels, standing seam roofing, etc. We can also customize products according to customer drawings.

Will the machine's precision be compromised during transport?

Thanks to its fully welded structure and reinforced packaging, transportation will not affect the precision of the rollers or the machine frame.

Is the electrical system susceptible to moisture damage?

The electrical cabinet features a dust-proof and moisture-resistant design, allowing it to operate normally even within a simple outdoor shelter.
