The Flange Forming Machine is a specialized solution designed for producing high-precision flanges used in HVAC duct systems, ventilation pipelines, and structural connections. It processes carbon steel, stainless steel, and other metal materials, forming consistent and accurate flange profiles. With a wide forming range—typically supporting diameters from 200mm to 1600mm—this machine meets diverse industrial requirements while ensuring excellent product strength and dimensional accuracy.

Key Features

Heavy-duty frame structure for outstanding stability during continuous operation
Multi-row forming design with linear guide transmission for smooth material flow
High-quality tempered shafts and durable rollers for long service life
Fully automatic control system for simplified operation and improved productivity
Strong adaptability supporting various material thickness ranges
Compact structure with optimized layout for efficient space utilization

Technical Specifications

Model NO	Circular flange forming machine
Condition	New
Usage	Pipeline
Round Diameter	200-1600mm
Machine Frame	80 * 80 square tube frame style
Machine Platform	Integrated iron plate platform
Tile Box	Upper detachable tile box
Type of Driven	Chain Transmission
Transmission Method	Hydraulic pressure
Number of Rolling Mill Sets	5-row forming linear guide arc transmission
Specification	7000mm x 2000mm x 1800mm
Customized	Customized
Origin	Cangzhou, Hebei
Warranty	1 year
Production Capacity	400/Set

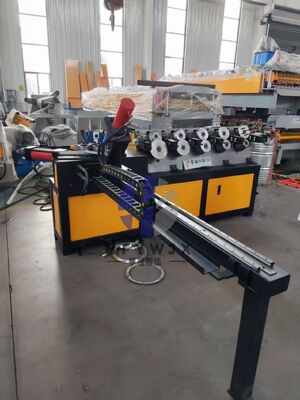

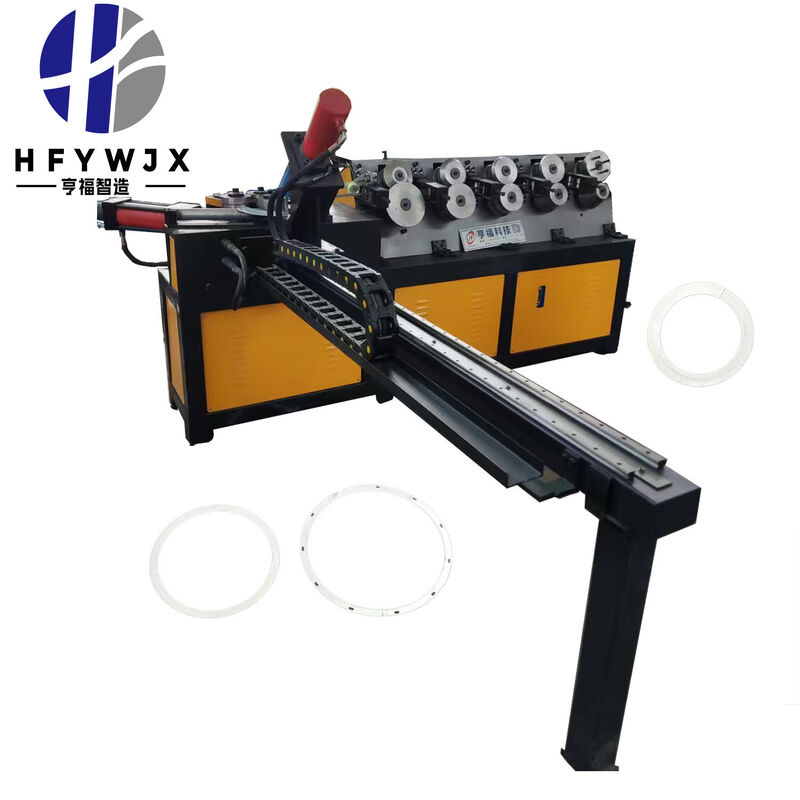

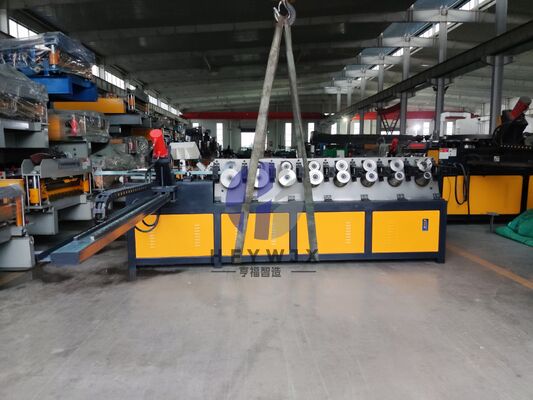

Product Gallery

Frequently Asked Questions

Can a laminating machine be added?

Yes, it allows for an integrated production line combining lamination and forming.

Can the voltage be customized to meet our country's standards?

Yes: 380V/220V, 50Hz/60Hz—both three-phase and single-phase options are available.

How can issues such as skewed or off-center sheet feeding be resolved?

The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.

Can the machine produce curved or irregularly shaped panels?

Yes, it can be customized with arching and bending mechanisms to enable the forming of curved roofing tiles.

Is there a leveling device at the material inlet?

It is equipped with a set of leveling rollers to ensure flat feeding and prevent waves or distortion in the sheet material.
