Simple Speed 0 - 15m/min Guard Rail Roll Forming Machine For Highway

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/IS09001/SGS
Model Number: YX83-310
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Suitable for ocean shipment
Delivery Time: 60 working days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 250 sets per year
Detail Information
Product Name: Guard Rail Roll Forming Machine Power: 37KW+7.5KW
Usage: Highway Guardrail Steel Thickness: 2.0-3.1mm
Roller Material: Gcr15 With Chrome Or Black Treatment Station: 12 Stations
Drive: Gear Box Container Need: 1X40GP+1X20GP
High Light:

Guardrail Roll Forming Machine


Highway Guardrail Forming Machine

Product Description

YX83-310 Two Waves Guard Rail Roll Forming Machine



All of our machine profile is customized, above profile is only for your reference.

1. Coil width: 470mm

2. Effective width: according the profile

3. Thickness: 2.0-3.1mm

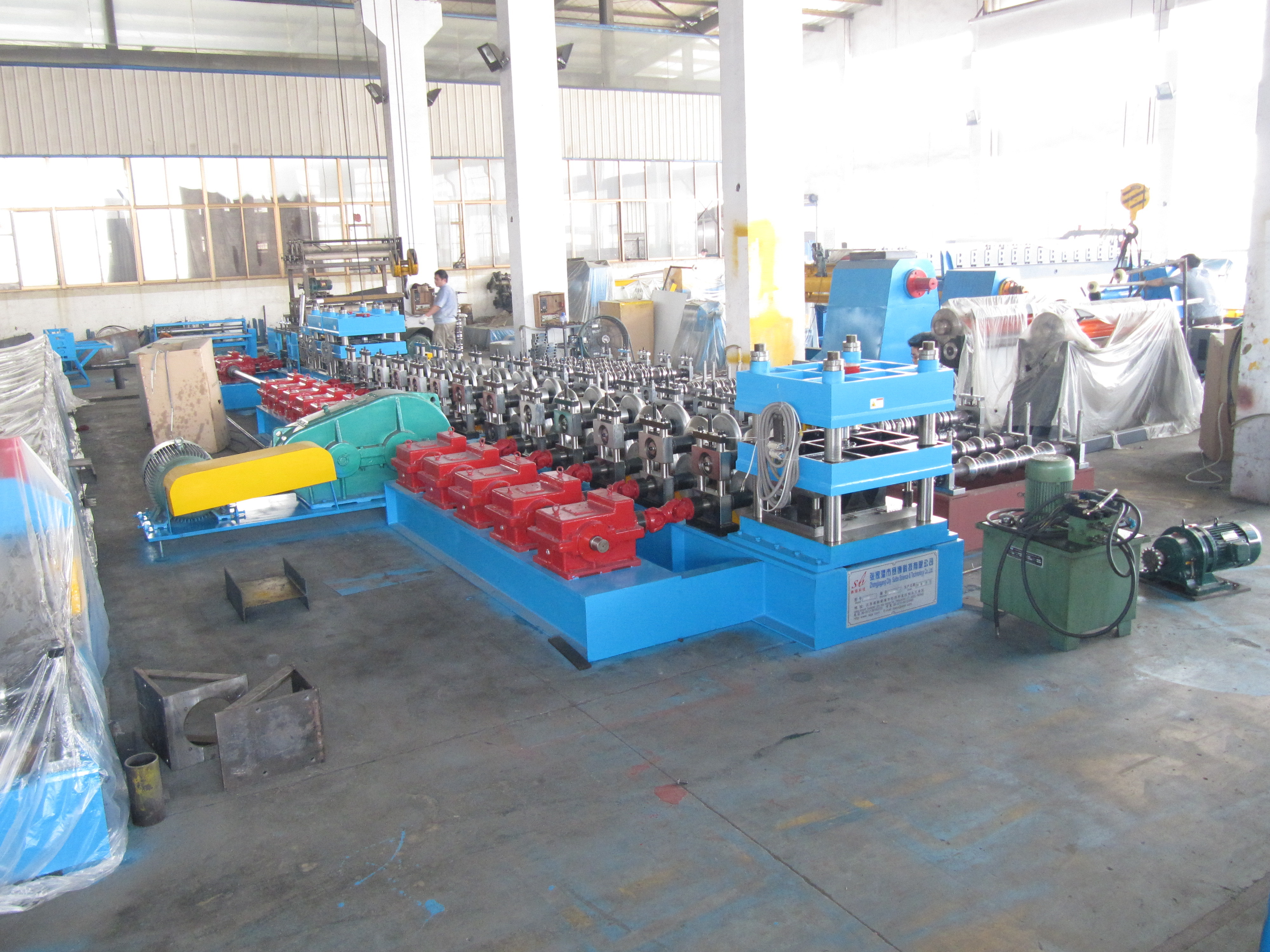

Simple Speed 0 - 15m/min Guard Rail Roll Forming Machine For Highway 0

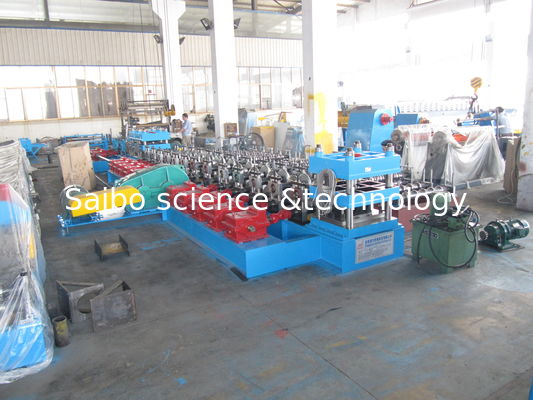

Simple Speed 0 - 15m/min Guard Rail Roll Forming Machine For Highway 1

Coil car—Hydraulic decoiler—Leveling—Punching—Roll Forming—Rectify—Cutting—Out table



Item NO




Offered specification

1 Roll Forming Machine



2 Material Width According the profile
3 Rolling Speed 12-15m/min(not include cutting & punching time)
4 Rolling Thickness 2.0-3.1 mm
5 Control System PLC (Panasonic) as list in the note
6 Un Coiler 5 ton hydraulic de-coiler with coil car
7 Roller Stations 12 stations (according the final design)
8 Leveling Station 1 station (three rollers over four)
9 Punching Two sets
10 Roller Material

GCR15, HRC58-62℃

coated with chrome

11 Shaft Material and DIA ¢100mm, material is 45# forge steel
12 Maim Motor Power 37kw
13 Hydraulic Station Power 7.5kw
14 Hydraulic Pressure 16Mpa
15 Material Of Cutting Cr12Mov quenching 58-62℃
16 Structure Of The Stations Guide pillar
17 Tolerance 3m+-1.5mm
18 Electric Source

380V, 50HZ,3 phase

According to customer’s require


19 Way Of Drive By gearbox
20 Color Of The Machine Yellow and blue
21 Container Need 1 x40 feet & 1 x20 feet


Main Features

1. Simple structure in linear type ,easy in installation and maintenance.

2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.

3. Running in a high automatization and intellectualization, no pollution

4. No need foundation, easy operation


Photos of each component
