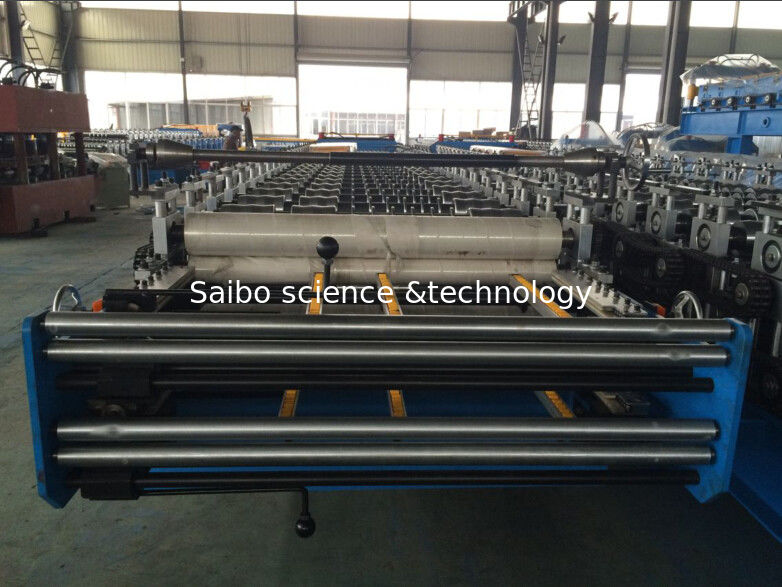

5T Roof Panel Double Layer Roll Forming Machine 0.3-0.8mm 18 Stations

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX23-148-1040/ YX18-76-990
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T or L/C
Supply Ability: 300 sets per year
Detail Information
Product Name: Double Layer Roll Forming Machine Power: 7.5KW+5.5kw
Size Of Purlin: YX23-148-1040/ YX18-76-990 Steel Thickness: 0.3-0.8mm
Decoiler: Manual Station: About 18 Stations
Roller Material: ASTM1045 Chrome Plated Surface With Chrome Size Of Line: About 7.0mx2.1mx1.6m
Highlight:

Double Deck Roll Forming Machine

,

Metal Roll Forming Machines


Product Description

Double Layer Roll Forming Machine



1. Specification of the material

1 Suitable Material PI/ PPGI
2 Width of the raw material 1220mm
3 Thickness 0.3-0.8mm




2. Machine Detailed Parameters

1

Roll Forming Machine



YX23-148-1040/ YX18-76-990
2

Machine structure



Guide pillar structure
3 Total power

Motor power-7.5kw

Hydraulic power-5.5kw

4

Roller stations



Up layer- 18 stations

Down Layer-18 stations

5

Productivity



0-15m/min
6

Drive system



By chain
7

Diameter of shaft



¢70mm solid shaft
8

Voltage



380V 50Hz 3phases (Customized)
9

Color Of The Machine



Bule and yellow
10

Deliver time



70 days
11

Terms Of Payment



30%T/T 70% pay before shipment



3. Profile drawing



Up Layer:

5T Roof Panel Double Layer Roll Forming Machine 0.3-0.8mm 18 Stations 0



Down Layer:



5T Roof Panel Double Layer Roll Forming Machine 0.3-0.8mm 18 Stations 1

4. The Chart of Process Flow



Manual Decoiler—Roll Forming—Cutting—Out table

5T Roof Panel Double Layer Roll Forming Machine 0.3-0.8mm 18 Stations 2





5. Specification of Components



(1) 5T Manual Un-coiler

  • Width of feeding: 1250mm
  • Capability: 5 Ton
  • Inter diameter: 500-590mm
  • Maximal out diameter: 1500mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual



(2) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢70mm material: SAE1045 with quenching and tempering



(3) Machine Structure

  • Main frame by 350H beam welding
  • Machine structure: guide pillar



(4) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,5.5KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product



(5) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization
