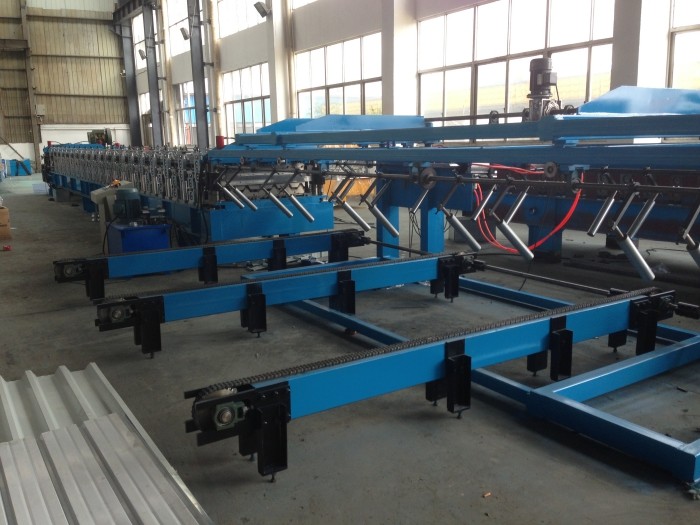

Auto Stacker Double Layer Roll Forming Machine with Hydraulic Decoiler 15m/min

Auto Stacker Double Layer Roll Forming Machine with Hydraulic Decoiler 15m/min

PEB stands for Pre Engineered Buildings. It can fulfill a wide range of structural and aesthetic design requirements. This flexibility allows PEBs to fulfill a vast range of building configurations, custom designs, requirements and applications. The technology offers several advantages over conventional concrete or steel structures, both in terms of cost and time savings.

1. Specification of the material

2. Machine Detailed Parameters

3. Profile drawing

Up Layer

Down Layer

4. The Chart of Process Flow

Hydraulic Decoiler—Roll Forming—Cutting—Auto Stacker

5. Specification of Components

(1) 5T Hydraulic Un-coiler

• Width of feeding: 1250mm
• Capability: 5 Ton
• Inter diameter: 470-520mm
• Maximal out diameter: 1500mm
• Main motor power: 5.5KW AC motor
• Hydraulic power: 4kw

(2) Main Roll Forming Machine

• Roller material:ASTM1045 chrome plated surface with chrome
• Shaft diameter: ￠70mm material: SAE1045 with quenching and tempering
• Main frame by 350H beam welding
• Machine structure: guide pillar

(3) Hydraulic Cutting System

• Cutting after forming: Cut the sheet after roll forming to required length
• Material of blade:Cr12, 58-62 HRC hardness
• Cutting power by hydraulic,5.5KW
• Working pressure: 12Mpa adjustable
• Length measuring: Automatic encoder length measuring
• Tolerance of length: +/- 1.5mm for each piece end product

(4) Computer Control Cabinet

• Programmable setting of profile length and quantity
• Operating system language: English and Chinese
• Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved

• PLC: Panasonic or customerization

(5) Auto Stacker

• Run out motor power: 0.75KW
• Max stacking length: 6m
• Max stacking thickness: 300mm
• Max stacking weight: about 2.5 tons
