4.0MM Thickness Highway Metal Guard Rails Roll Forming Machine

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/IS09001/SGS
Model Number: M192
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Suitable for ocean shipment
Delivery Time: 60 working days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 280 sets per year
Detail Information
Product Name: Guard Rail Roll Forming Machine Usage: Highway Guardrail
Steel Thickness: 3.0-4.0mm Decoiler: Hydraulic Decoiler
Power: 45KW+11KW Roller Material: Gcr15 With Chrome Or Black Treatment
Station: 13 Stations Drive: Gear Box
Container Need: 1X40GP+1X20GP
High Light:

Highway Guardrail Roll Forming Machine


Highway Guardrail Forming Machine

Product Description

M192 Two Waves Guard Rail Roll Forming Machine



All of our machine profile is customized, above profile is only for your reference.

1. Coil width: according the profile

2. Effective width: according the profile

3. Thickness: 3.0-4.0mm

4.0MM Thickness Highway Metal Guard Rails Roll Forming Machine 0


4.0MM Thickness Highway Metal Guard Rails Roll Forming Machine 1

Hydraulic decoiler—Leveling—Punching—Roll Forming—Rectify—Cutting—Out table



Item NO




Offered specification

1 Roll Forming Machine



2 Material Width According the profile
3 Rolling Speed 12-15m/min(not include cutting & punching time)
4 Rolling Thickness 3.0-4.0 mm
5 Control System PLC (Panasonic) as list in the note
6 Un Coiler 5 ton hydraulic de-coiler
7 Roller Stations 13 stations (including two feeding station)
8 Leveling Station 1 station (three rollers over four)
9 Punching Two sets punching
10 Roller Material

GCR15, HRC58-62℃

coated with chrome

11 Shaft Material and DIA ¢110mm, material is 45# forge steel
12 Maim Motor Power 45kw
13 Hydraulic Station Power 11kw
14 Hydraulic Pressure 20Mpa
15 Cutting & pressing By hydraulic
16 Material Of Cutting/pressing Cr12Mov quenching 58-62℃
17 Structure Of The Stations Guide pillar
18 Tolerance 3m+-1.5mm
19 Electric Source

380V, 50HZ,3 phase

According to customer’s require


20 Way Of Drive By gearbox
21 Color Of The Machine Yellow and blue
22 Container Need 1 x40 feet & 1 x20 feet

Main Features

1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.

2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.

4. It is very easy to install the equipment and suitable for producing in the factory.

5. The machine has features of low noise and high efficiency.



1) Q: Are you manufacturer or trading company?

A: We are manufacturer and trading company .


2) Q: Do you provide installing and training overseas?

A: Overseas machine install and worker training services are optional.


3) Q: How is your after sales support?

A: We provide technical support on line as well as overseas services by skillful technicians.


4) Q: How does your factory do regarding quality control?

A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.


5) How can I trust you that machines pasted testing running before shipping?

A: 1) We record the testing video for your reference. Or,

2) We welcome you visit us and test machine by yourself in our factory.


6) Q: Do you have this roof panel roll forming machine in stock?

A: No, machine is made to order.

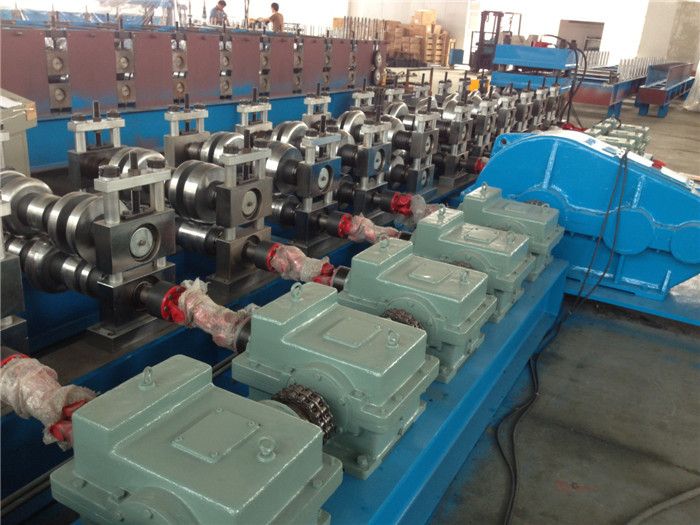

Machine picture for reference

4.0MM Thickness Highway Metal Guard Rails Roll Forming Machine 2
