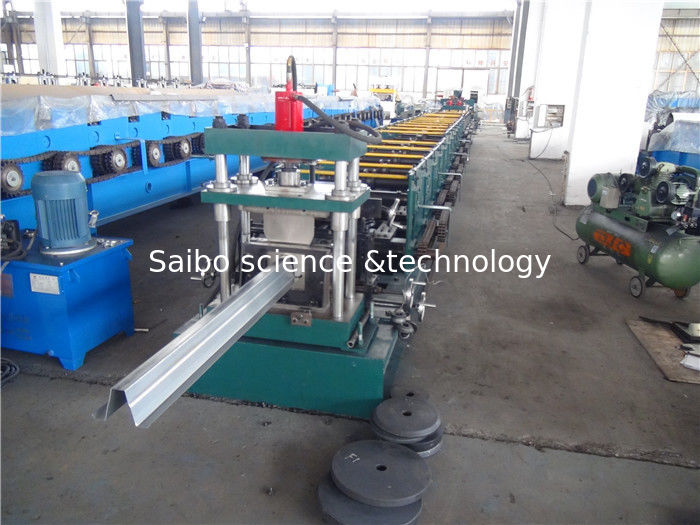

Hat Profile Cold Roll Forming Machine Chain Driving 550mm Steel Coil Width

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX40-60
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 60 working days after received deposit
Supply Ability: 300 sets per year
Detail Information
Product Name: Hat Profile Roll Forming Machine Power: 15kw+7.5kw+5.5kw
Size: 40-60 Steel Thickness: 0.8-2.0mm
Decoiler: Hydraulic Station: 19 Stations
Roller Material: Cr12 Drive: Chain
Container Need: 1X40GP
High Light:

Metal Roll Forming Machine


Angle Roll Forming Machine

Product Description

Main specification


No Specification of the material



Suitable Material Carbon steel



Width of the raw material Based on the purlin sizes.
3 Thickness 0.8-2.0mm


1. Profile drawing:

Hat Profile Cold Roll Forming Machine Chain Driving 550mm Steel Coil Width 0




The Chart of Process Flow


Hydraulic Un-coiler—Leveling — punching —Roll Forming—Cutting—out table



Specification of Components


No   Technical Specification & Remark

Hydraulic Un-coiler


Hat Profile Cold Roll Forming Machine Chain Driving 550mm Steel Coil Width 1

  • Steel coil width: 550 mm;
  • Internal diameter of coil: variable, from 470 mm to 520 mm
  • Maximum coil weight: 5000 Kg;
  • Main motor power: 5.5KW
  • Hydraulic power: 4kw

Leveling part



  • Flattener roller: upper is 3 rollers, down is 4 stations(total is 7 rollers)
  • Flattener roller material: SAE 1045 thermal treatment hardness 48-52 HRC.

Pre-punching and pre-cutting


  • hydraulic pre-punching and pre-cutting
  • pre-cutting to change the material
  • material of the punching mold: Cr12

Main Roll Forming Machine



  • Roll station:19 stations+ 1 station of torque head
  • Roller material:Cr12, 58-62,HRC hardness and chrome plated surface
  • Shaft diameter: ¢85mm material: SAE1045

Machine structure:



  • Main frame by 350H beam welding
  • Machine structure: wall board

Hydraulic cutting system



  • Machine adopt hydraulic post cutting system.
  • Cutting power by hydraulic, 7.5KW
  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12 with heat treatment 58-60°

Hydraulic System






  • Hydraulic power: 7.5kw
  • Solenoid valve: 2 groups
  • Hydraulic oil: 46# hydraulic oil




Computer Control Cabinet





  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC brand: Panasonic

Out table



  • Size: about 2.0m long*0.8mwide*0.6-1mhigh
  • One out table with three support roller
  • Quantity: 2 units



6. Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
