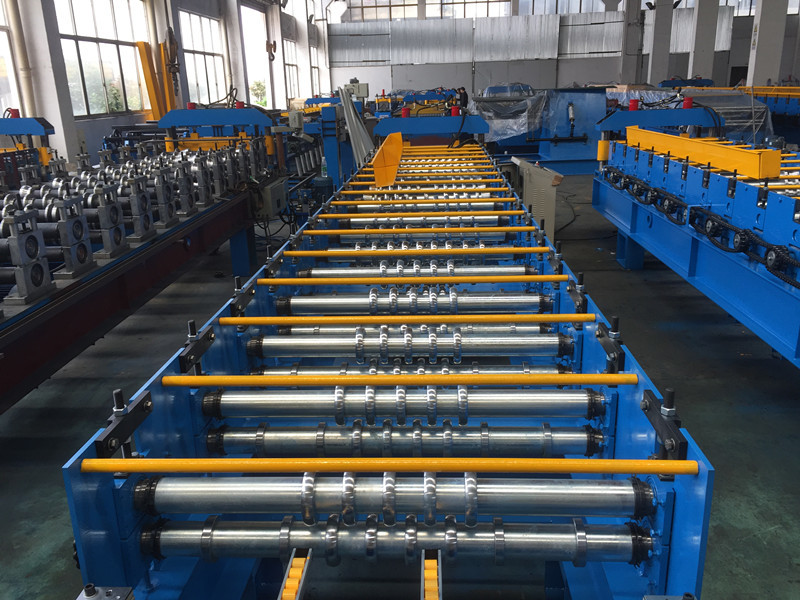

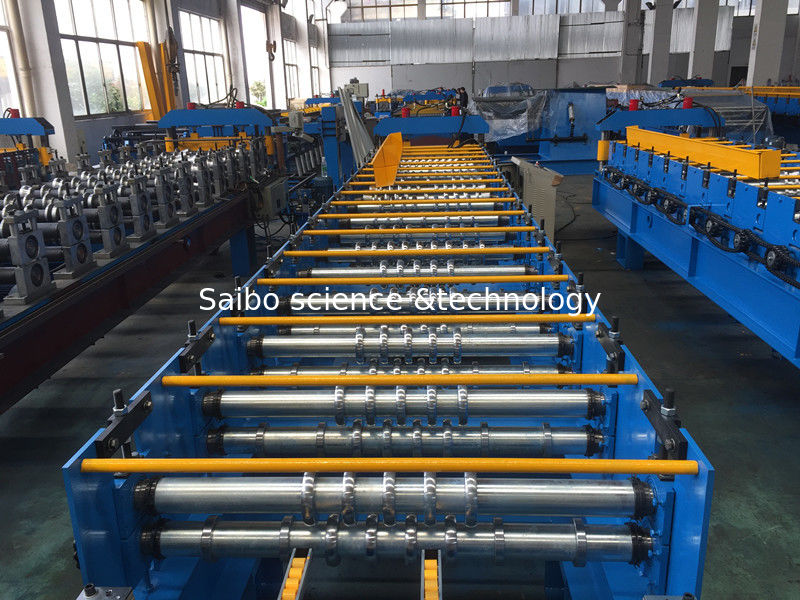

Manual Decoiler 7.5KW Roofing Sheet Making Machine With Hydraulic Cutting

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX18-76.2-762
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T or L/C
Supply Ability: 300 sets per year
Detail Information
Product Name: Corrugated Roll Forming Machine Power: 7.5KW+5.5kw
Steel Thickness: 0.26-0.42mm Decoiler: Manual
Station: About 21 Stations Roller Material: ASTM1045 Chrome Plated Surface With Chrome
High Light:

Wall Panel Roll Forming Machine


Roof Sheet Roll Forming Machine

Product Description

Corrugated Roll Forming Machine


1. Specification of the material

1 Suitable Material PI/ PPGI( 0.26-0.42mm)
2 Width of the raw material 900-914mm


2. Machine Detailed Parameters


Roll Forming Machine



Machine structure


Wall board structure
3 Total power

Motor power-7.5kw

Hydraulic power-5.5kw


Roller stations


About 21 stations




Drive system


By chain

Diameter of shaft


¢80mm solid shaft



380V 50Hz 3phases (Customized)

Color Of The Machine


Bule and yellow

Deliver time


70 days

Terms Of Payment


30%T/T 70% pay before shipment


3. Profile drawing

Manual Decoiler 7.5KW Roofing Sheet Making Machine With Hydraulic Cutting 0

Manual Decoiler 7.5KW Roofing Sheet Making Machine With Hydraulic Cutting 1

4. The Chart of Process Flow


Manual Decoiler—Roll Forming—Cutting—Out table

Manual Decoiler 7.5KW Roofing Sheet Making Machine With Hydraulic Cutting 2




5. Specification of Components


(1) 5T Manual Un-coiler

  • Width of feeding: 1250mm
  • Capability: 5 Ton
  • Inter diameter: 500-590mm
  • Maximal out diameter: 1500mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual

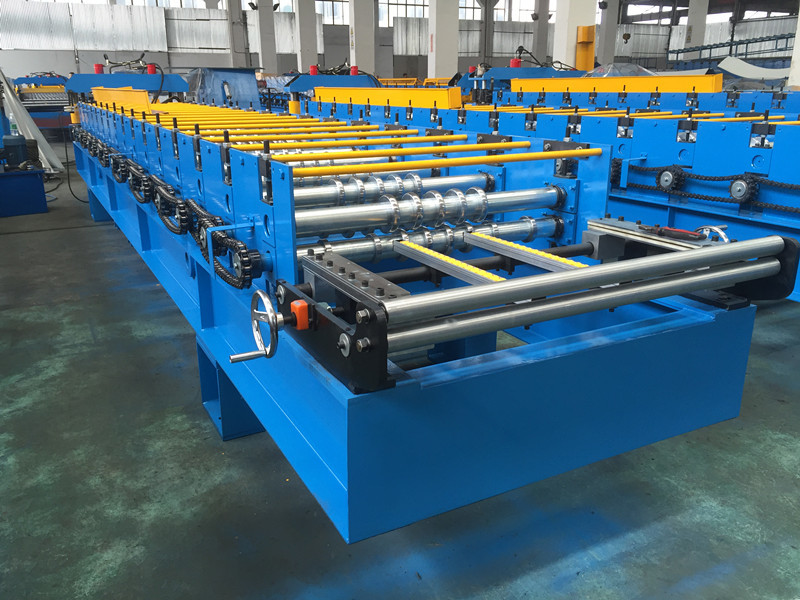

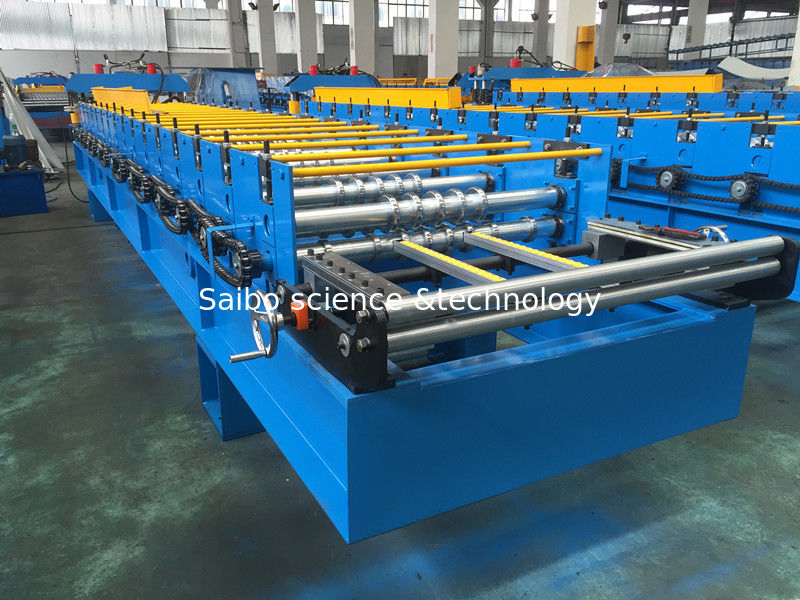

(2) Main Roll Forming Machine

  • Roller material: 45# forge steel, chrome plated surface with chrome
  • Shaft diameter: ¢80mm material: material is 45# forge steel


(3) Machine Structure

  • Main frame by 350H beam welding
  • Machine structure: wall board

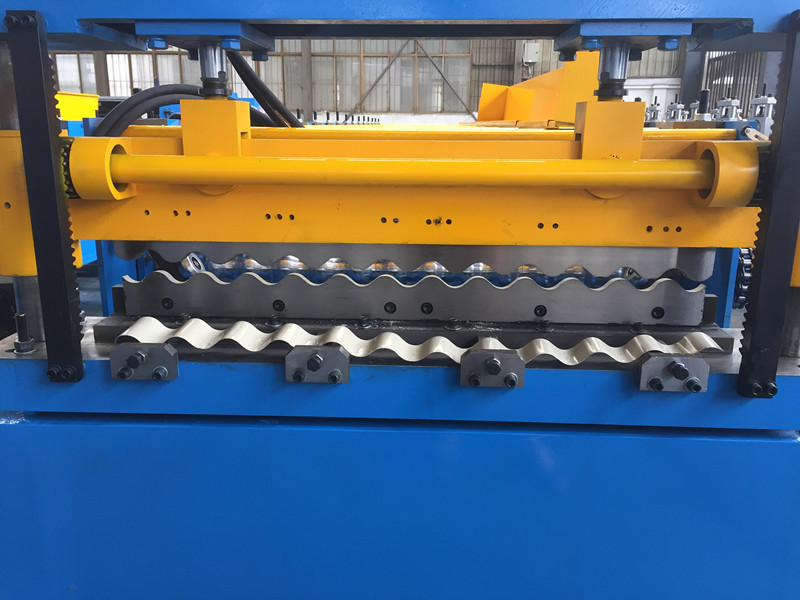

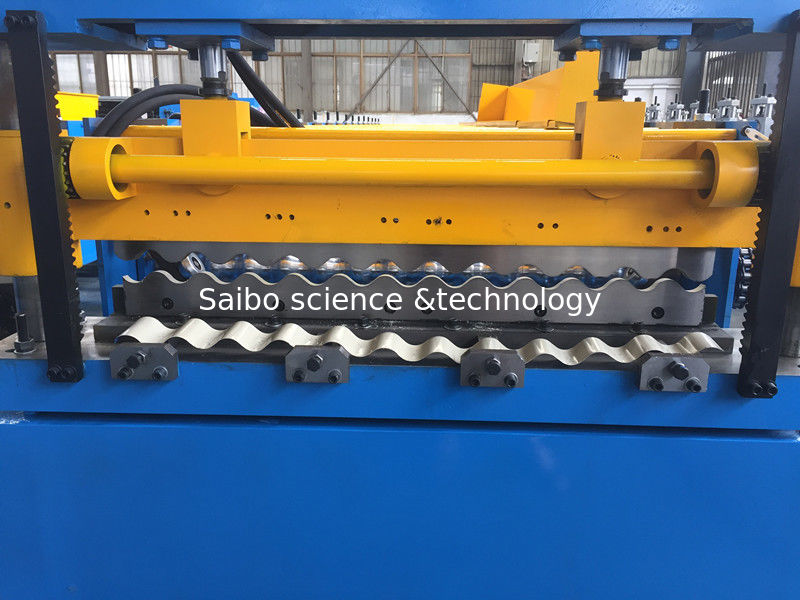

(4) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,5.5KW
  • Working pressure: 16Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product


(5) Hydraulic station

  • Hydraulic station power: 5.5kw
  • Hydraulic pressure: 16Mpa


(6) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization



6. Our advantage

  • Our advantage

     1. Short delivery period.
     2. Effective communication
     3. Interface customized.

  • Training and Installation

     1. We offer installation service local in paid, reasonable charge.
     2. QT test is welcome and professional.
     3. manual and using guide is optional if no visiting and no installation.

  • Certification and after service

     1. Match the technology standard, ISO producing certification
     2. CE certification
     3. 12 months warranty since the delivery. Board.
