| Place of Origin: | China |
|---|---|
| Brand Name: | Saibo |
| Certification: | CE/ISO |
| Model Number: | YX35-128-768 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Suitable for ocean shipment |
| Delivery Time: | 70 working days after received deposit |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 300 sets per year |
| Product Name: | Corrugated Roll Forming Machine | Power: | Motor Power-5.5kw , Hydraulic Power-4kw |
|---|---|---|---|
| Size Of Purlin: | YX35-128-768 | Steel Thickness: | 0.4-0.7mm |
| Coil Width: | 1000mm | Station: | 25 Stations ( According To The Final Design) |
| Roller Material: | ASTM1045 Chrome Plated Surface With Chrome | Drive System: | By Chain |
| Diameter Of Shaft: | ￠70mm Solid Shaft | ||
| High Light: | Wall Panel Roll Forming Machine,Roof Sheet Roll Forming Machine |
||

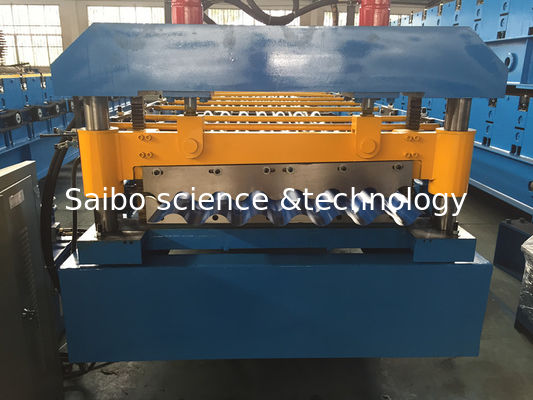

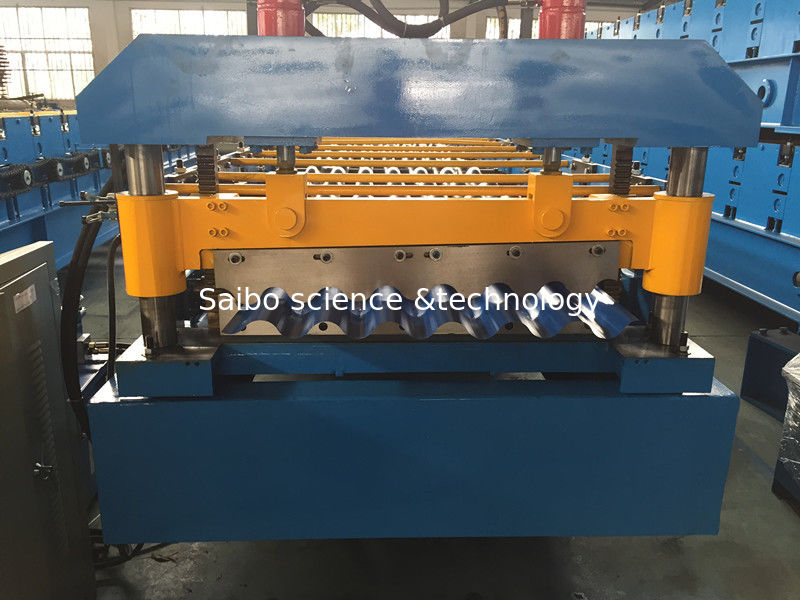

YX35-128-768 Corrugated Roll Forming Machine
1.
2. Components of machine:
| 1 |
5T Manual decoiler
|
1set |
| 2 |
Feeding
|
1set |
| 3 |
Main roll forming machine
|
1set |
|
4 |
Hydraulic cutting system
|
1set |
| 5 |
Controlling system
|
1set |
| 6 |
Run out table
|
2 set |
2. Specification of the material
| 1 | Suitable Material | PI/ PPGI |
| 2 | Width of the raw material | 1000mm |
| 3 | Thickness | 0.4-0.7mm |
3. Machine Detailed Parameters
| 1 |
Roll Forming Machine
|
YX35-128-768 |
| 2 |
Machine structure
|
Wall board structure |
| 3 | Total power |
Motor power-5.5kw Hydraulic power-4kw |
| 4 |
Roller stations
|
About 25 stations |
| 5 |
Productivity
|
0-15m/min |
| 6 |
Drive system
|
By chain, 1.2 inch, single line |
| 7 |
Diameter of shaft
|
￠70mm solid shaft |
| 8 |
Voltage
|
380V 50Hz 3phases (Customized) |
| 9 |
Color Of The Machine
|
Bule and yellow |
| 10 |
Deliver time
|
70 days |
| 11 |
Terms Of Payment
|
30%T/T 70% pay before shipment |
4. Profile drawing
5. The Chart of Process Flow
Manual Decoiler—Roll Forming—Cutting—Out table
6. Specification of Components
(1) 5T Manual Un-coiler
(2) Main Roll Forming Machine
(3) Machine Structure
(4) Hydraulic cutting system
(5) Hydraulic station
(6) Computer Control Cabinet
Why choose us ?
Advanced machinery, well trained workers.
More than 12 years experience in roll forming machine Ad industry.
Unique designed, good quality, competitive price.
Full range of roll forming machine solution.
Product Application
This type of roof sheet has advantage inclouding beautiful, classical appearance and grace taste.
It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.
