| Place of Origin: | China |
|---|---|
| Brand Name: | Saibo |
| Certification: | CE/ISO |
| Model Number: | YX70 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Suitable for ocean shipment |
| Delivery Time: | 70 working days after received deposit |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 300 sets per year |
| Product Name: | Drip Trim Roll Forming Machine | Main Power: | 5.5KW |
|---|---|---|---|
| Hydraulic Power: | 4KW | Steel Thickness: | 0.5mm |
| Station: | About 9 Stations | Roller Material: | 45# Forge Steel, Surface With Chrome |
| Shaft Diameter: | Ф56mm, 40CR | Drive: | By Chain |
| High Light: | Drip Trim Roll Forming Machine,Structure Drip Trim Roll Forming Machine,0.5mm Drip Trim Forming Machine |
||
Drip Trim Roll Froming Machine
For Keel roll forming machine, everyone has different special concerns about it, and what we do is to maximize the product requirements of each customer, so the quality of our Keel roll forming machine has been well received by many customers and enjoyed a good reputation in many countries. Zhangjiagang City Saibo Science&Technologu Co.,Ltd. Keel roll forming machine have characteristic design & practical performance & competitive price, for more information on the Keel roll forming machine, please feel free to contact us.
Drip Trim Roll Forming Machine
1. Composition of machine
Roll forming main machine……………………………1 unit
Manual Un-coiler……………………………………… 1 unit
Control panel…………………………………………..1 unit
Hydraulic station…………………………………… …1 unit
Out table ………………………………… ……………2 unit
Spare tools……………………………………………...one box
2. Machine Detailed Parameters
| 1 | Roll Forming
|
YX40-135/175 |
| 2 | Coil width
|
315/275mm |
| 3 |
Rolling Speed
|
0-15m/min |
| 4 |
Rolling Thickness
|
0.5mm aluminium alloy steel |
| 5 |
Control System
|
PLC |
| 6 |
Un Coiler
|
3 ton manual un-coiler |
| 7 |
Roller Stations
|
9 stations |
| 8 |
Roller Material
|
45 forge steel, surface with chrome |
| 9 |
Shaft Material and DIA
|
￠56mm, material is 40CR |
| 10 |
Maim Motor Power
|
5.5KW |
| 11 |
Hydraulic Station Power
|
4KW |
|
12
|
Hydraulic Pressure | 12Mpa |
| 13 | Cutting type |
Hydraulic cutting, 4kw
|
|
14
|
Material Of Cutting | Cr12, quenching 58-62℃ |
|
15
|
Tolerance | 3m+-1.5mm |
|
16
|
Electric Source |
380V, 50HZ,3 phase According to customer’s require |
|
17
|
Way Of Drive | By chain |
|
18
|
Color Of The Machine | Yellow and blue |
3. Profile drawing
4. The Chart of Process Flow
5. Specification of Components
(1) 3T Manual Un-coiler
(2) Main Roll Forming Machine
Roll station: 9 stations
Material of roller: 45＃forge steel, coated with chrome
Material of main shaft:40CR diameter roller: Ф56mm
Main power: 5.5kw
Forming thickness: 0.5mm, aluminium alloy steel
Transmission: By chain, 1.0inch, single line

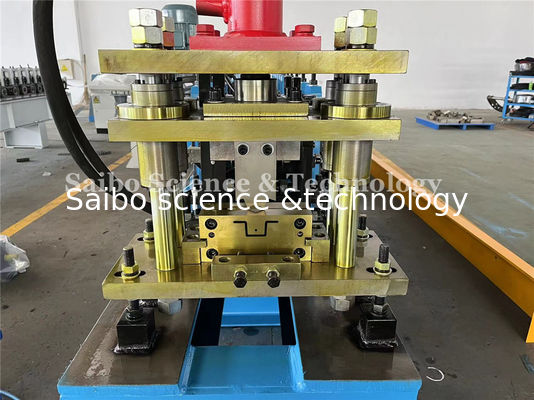

(3) Post cutting system
(4) Computer Control Cabinet

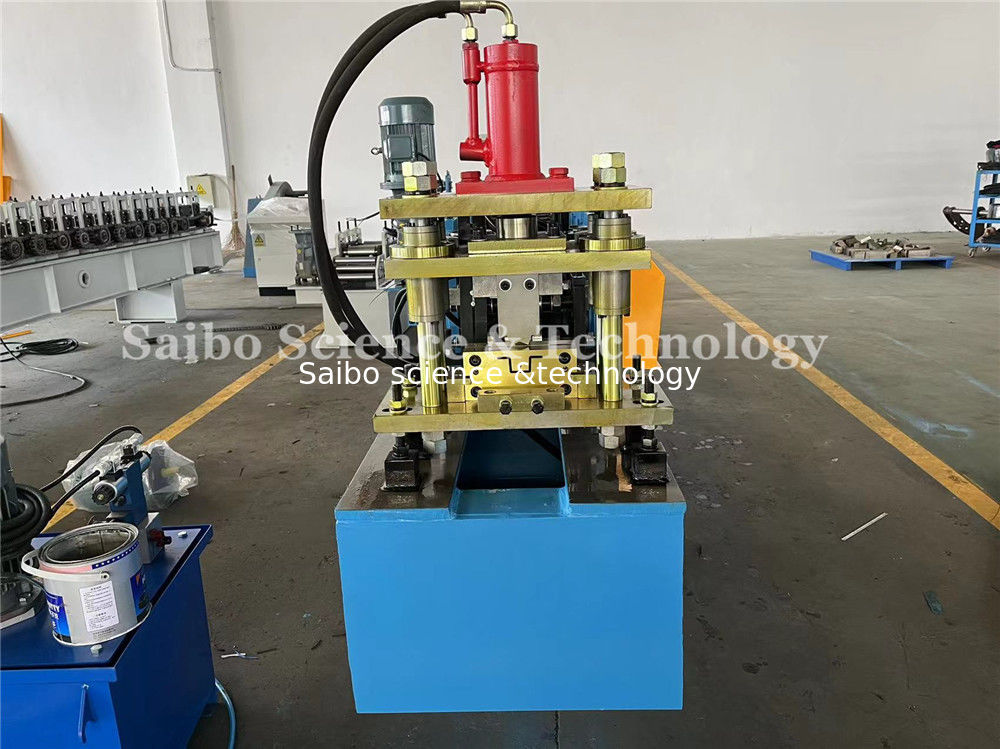

6. Machine pictures
FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you have this roof panel roll forming machine in stock?
A: No, machine is made to order.
