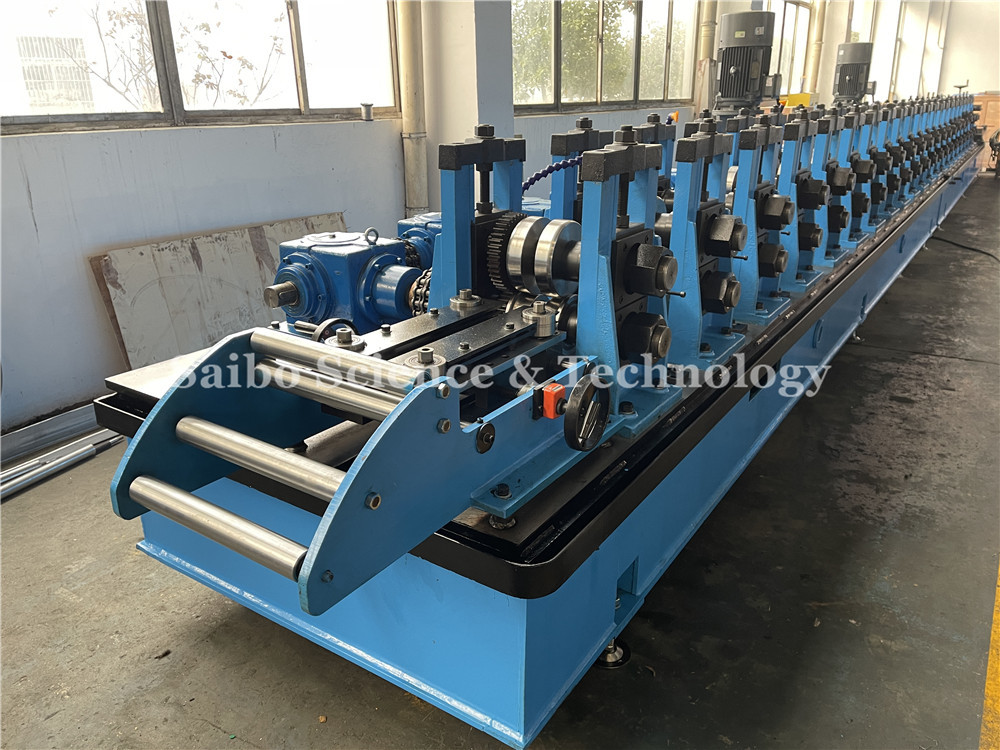

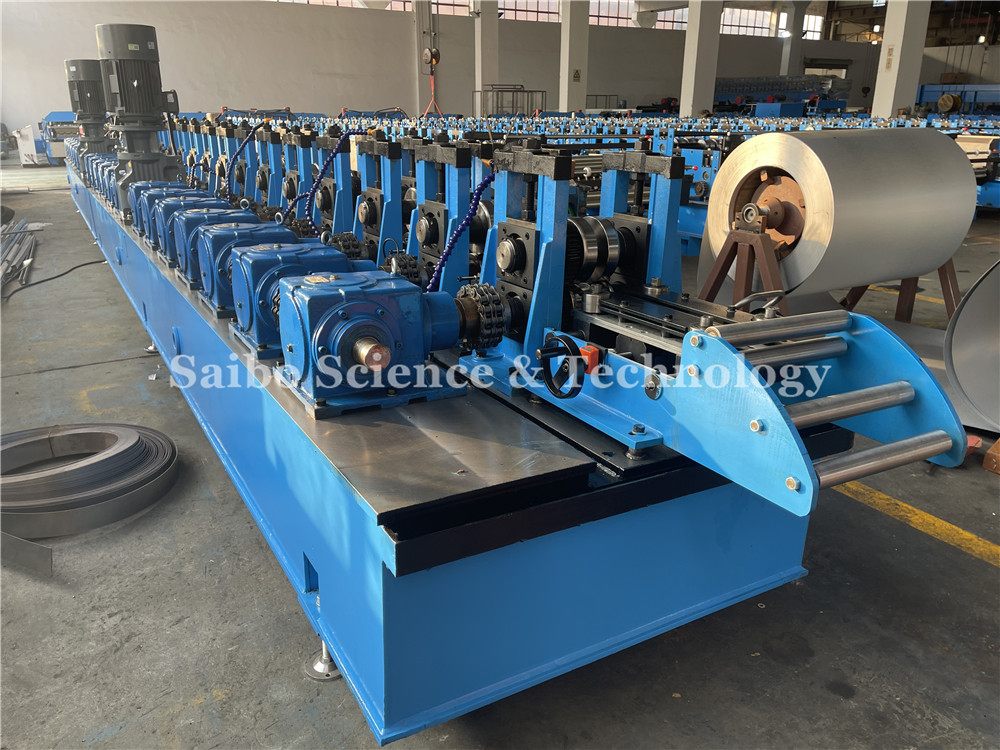

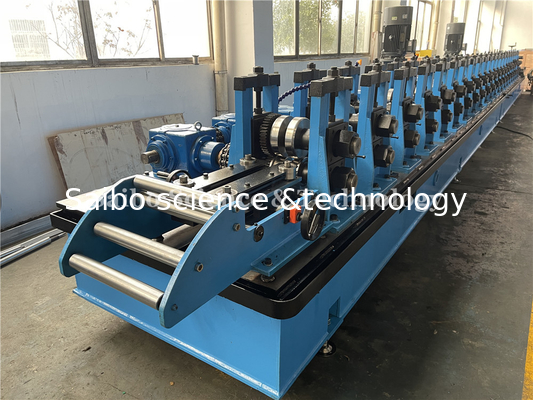

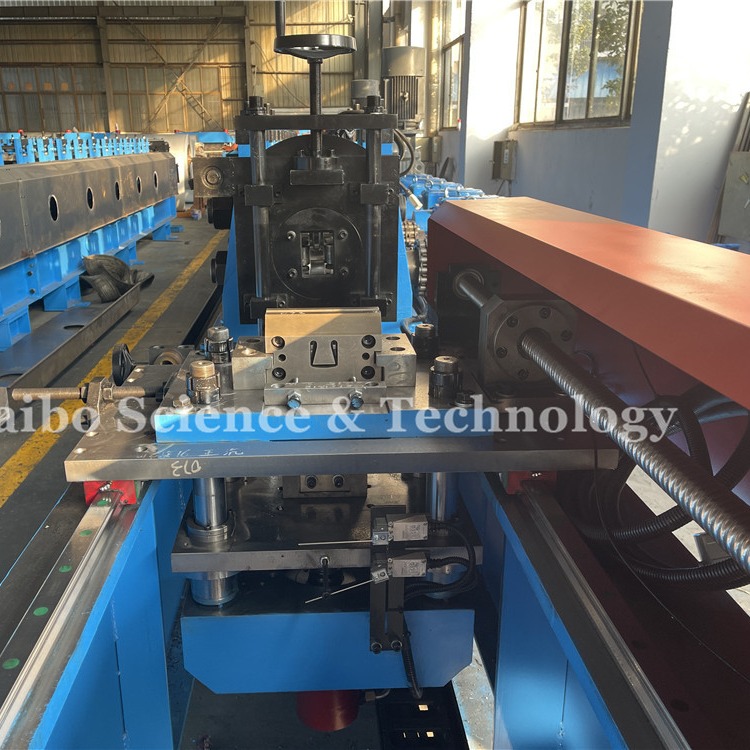

2.5mm Steel Thickness Guide Rail Roll Forming Machine With 22 Stations

Product Description:

The Guide Rail Roll Forming Machine is a full automatic production line designed for the efficient manufacturing of guide rail for solar panel support. With a size of approximately 11.5m x 1.6m x 1.6m, it is compact and easy to install in any production facility. The machine is powered by a 22kW x2main motor and a 7.5kW secondary motor, ensuring high speed and precision in the roll forming process.

One of the key features of this machine is its ability to handle steel thickness of up to 2.5mm, making it suitable for the production of high-quality guide rails. The suitable material for this machine is SS316, known for its excellent corrosion resistance and durability, making it a perfect fit for outdoor solar panel applications.

The control system of the guide rail Roll Forming Machine is equipped with a PLC (Programmable Logic Controller) that allows for easy and efficient operation. The user-friendly interface and intuitive controls make it easy for operators to set up and adjust the machine for different production requirements.

The machine is designed specifically for the production of guide rails used in solar panel support systems. It features a specialized guide rail roll forming machine that ensures consistent and precise shaping of the guide rails. The track cutting mechanism ensures clean and accurate cuts, resulting in high-quality guide rails that meet industry standards.

Overall, the Solar Roll Forming Machine is a highly efficient and reliable production line that provides a cost-effective solution for manufacturing guide rails for solar panel support. With its full automatic operation and user-friendly controls, it offers easy operation and requires minimal maintenance, making it a valuable investment for any solar panel production facility.

Key features:

• Full automatic production line
• Guide rail roll forming machine

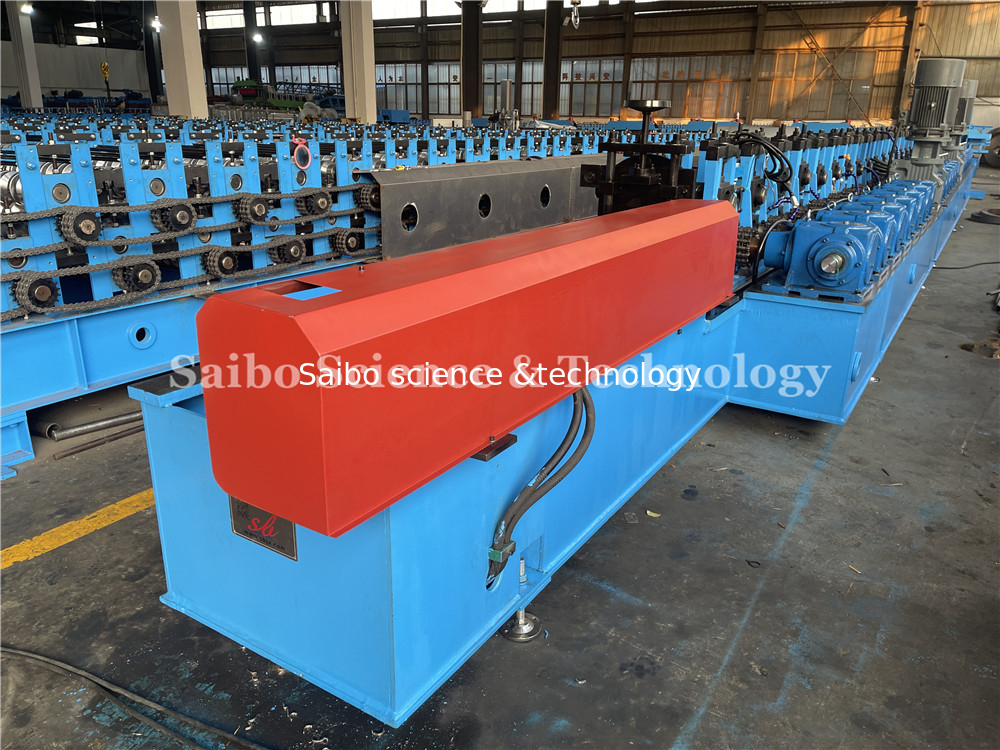

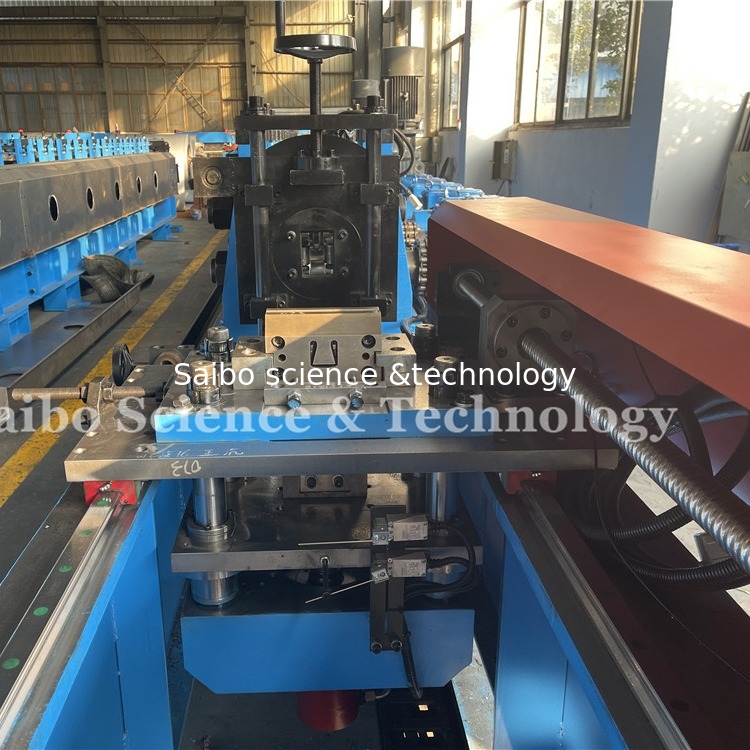

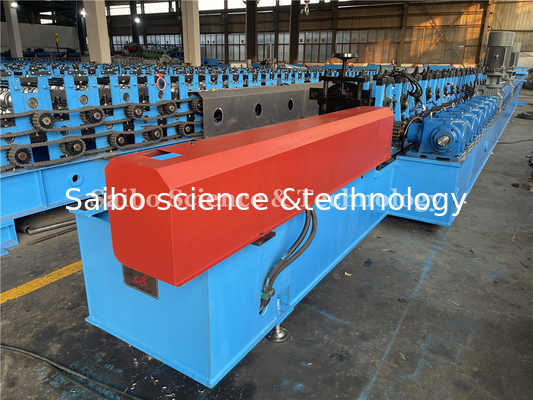

• Track cutting mechanism
• Suitable for SS316 material
• Easy operation with PLC control system
• Compact size - 11.5m x 1.6m x 1.6m
• Powerful motors - 22kWx 2 + 7.5kW
• Handles steel thickness up to 2.5mm
• Durable and corrosion-resistant

• Product Name: Solar Roll Forming Machine
• Hydraulic Power: 7.5KW
• Main Power: 22kwX2
• Raw Material: SS316
• Cutting Material: Cr12 With Heat Treatment 58-60°
• Size Of Line: About 11.5mx1.6x1.6m
• With post cutting
• Full automatic
• High precision
• Easy operation

Technical Parameters:

Applications:

If you are looking for a high-quality and efficient machine to produce solar panels, then look no further than the Guide Rail Roll Forming Machine. This advanced machine is designed to create perfectly-shaped guide rails for solar panels, ensuring high precision and durability for your solar energy production.

• Brand Name: Guide Rail Roll Forming Machine
• Model Number: YX41-41/21-41
• Place of Origin: China
• Shaft Diameter: 85mm Solid Shaft
• Chang Size: Flange And Width Is Adjust By Hand Wheel
• Hydraulic Cutting Power: 7.5kw
• Raw Material: SS316
• Power: 18.5KW+7.5KW

The Guide Rail Roll Forming Machine is ideal for use in the production of solar panels. It is specifically designed to create the precise shape and size of guide rails needed for solar panel installation. With this machine, you can easily and efficiently produce high-quality solar panels with consistent dimensions.

The Guide Rail Roll Forming Machine is a highly versatile and efficient tool for solar panel production. Its key features and benefits include:

• High Precision: The machine is designed to create guide rails with perfect dimensions, ensuring precise and accurate installation of solar panels.
• Efficient Production: With the use of advanced technology and precise cutting mechanisms, this machine can produce a large number of guide rails in a short amount of time, increasing your production efficiency.
• Durable Materials: The machine is made with high-quality materials, such as SS316, ensuring durability and longevity even with continuous use.
• Easy Adjustment: The Chang Size feature allows for easy adjustment of the flange and width of the guide rails, making it suitable for different sizes of solar panels.
• Hydraulic Cutting Power: The 7.5kw hydraulic cutting power ensures clean and precise cuts, reducing the need for manual finishing.
• Smooth Drive: The machine is drive by a gear box, providing a smooth and stable operation for consistent and high-quality production.

The Guide Rail Roll Forming Machine can be used in a variety of settings, such as:

• Solar panel manufacturing factories
• Solar energy installation companies
• Industrial workshops
• Construction sites

With its compact size and easy operation, this machine can be used in both large-scale production facilities and smaller workshops, making it a versatile tool for solar panel production.

The Guide Rail Roll Forming Machine is a crucial tool for the production of high-quality and efficient solar panels. Its high precision, efficient production, and durability make it a valuable asset for solar energy companies and manufacturers. With its advanced technology and reliable performance, this machine is an essential investment for anyone in the solar energy industry.

Customization:

Brand Name: Guide Rail Roll Forming Machine

Model Number: YX41-41/21-41

Place of Origin: China

Control System: PLC

Main Power: 22kwX2

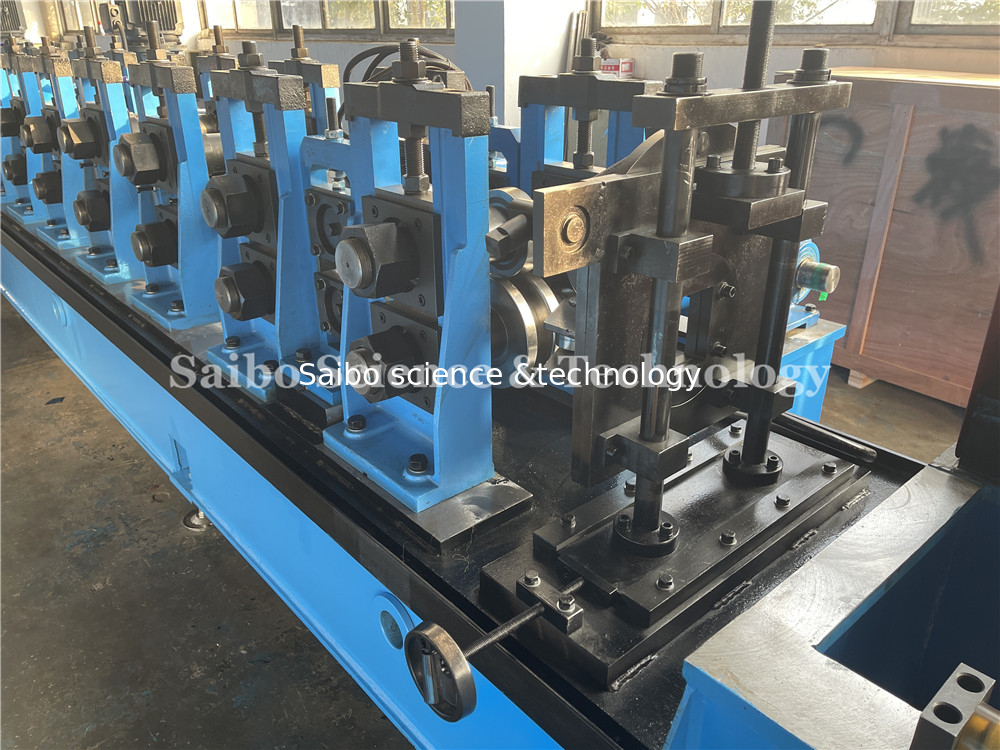

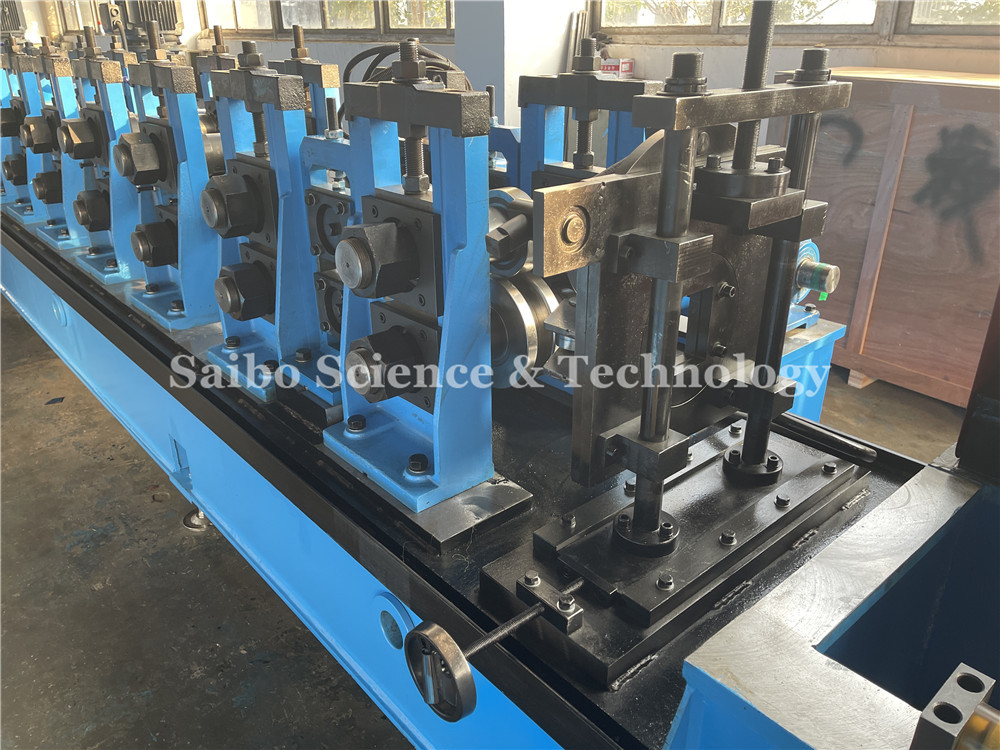

Roller Stations: About 22 Stations

Size Of Line: About 11.5mx1.6x1.6m

Chang Size: Flange And Width Is Adjust By Hand Wheel

• Advanced Guide Rail roll forming technology
• Efficient track cutting mechanism
• Drive by Gear box for smooth operation
• PLC control system for precise and automated production
• High power capacity with 22kwX2 main power
• Approximately 22 roller stations for efficient production
• Compact size of 11.5mx1.6x1.6m for space-saving installation
• Easy adjustment of flange and width with hand wheel
