Manual / Hydraulic Ceiling Roll Forming Machine , Steel Frame Roll Forming Machine 4KW

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX18-36
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T, L/C
Supply Ability: 300 sets per year
Contact Now
Detail Information
Product Name: Stud Panel Roll Forming Machine Power: 4KW+3kw
Size Of Purlin: YX18-36 Steel Thickness: 0.4-1.0mm
Decoiler: Manual Or Hydraulic Station: 13 Stations + One Station For Rectify
Roller Material: ASTM1045 Chrome Plated Surface With Chrome Size Of Line: About 6mx2.1x1.6m
Drive: By Chain Container Need: 1X20GP

Product Description

1. Specification of the material

1 Suitable Material Colored Steel plate, Galvanized steel
2 Width of the raw material 81mm
3 Thickness 0.4mm-1.0mm



2. Machine Detailed Parameters

1 Roll Forming



YX18-36



2 Machine structure



Wire-electrode cutting structure
3 Total power

Motor power-4kw

Hydraulic power-3kw
4 Roller stations



bout 13 stations + one station for rectify >



5

Productivity



0-15m/min
6

Drive system



By chain
7

Diameter of shaft



¢56mm solid shaft
8

Voltage



380V 50Hz 3phases (Customized)
9

Container need



20GP container
10

Color Of The Machine



Yellow and blue

11

Deliver Time



70 days
12

Terms Of Payment



30%T/T 70% pay before shipment



3. Profile drawing

Manual / Hydraulic Ceiling Roll Forming Machine , Steel Frame Roll Forming Machine 4KW



4. The Chart of Process Flow

Manual / Hydraulic Ceiling Roll Forming Machine , Steel Frame Roll Forming Machine 4KW





5. Specification of Components

(1) 3T Manual Un-coiler

  • Adopt automatic hydraulic system for expand
  • Width of feeding: 350mm
  • Capability: 3 Ton
  • Bound of expand &fight: 380mm—520mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual



(2) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢56mm material: SAE1045 with quenching and tempering
  • Main frame by 350H beam welding
  • Machine structure: Wire-electrode cutting

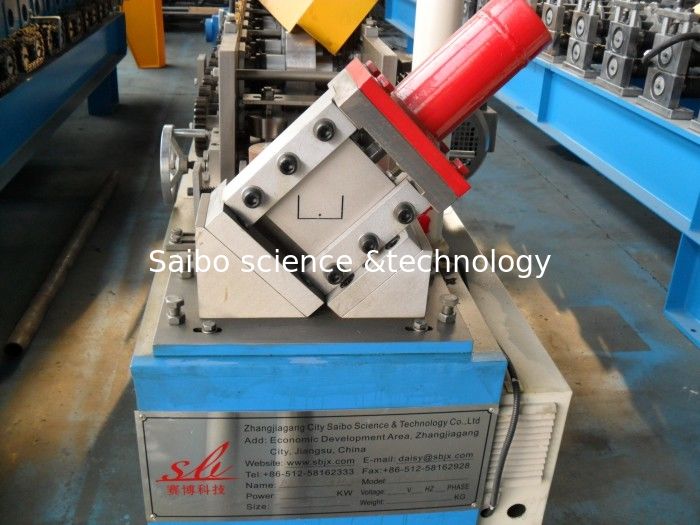

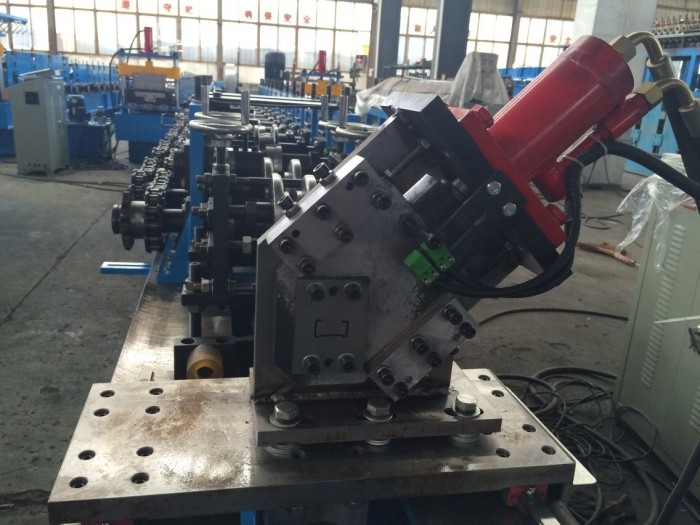

(3) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Uses two hydraulic cylinders for operation.
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,3KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product



(4) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization
