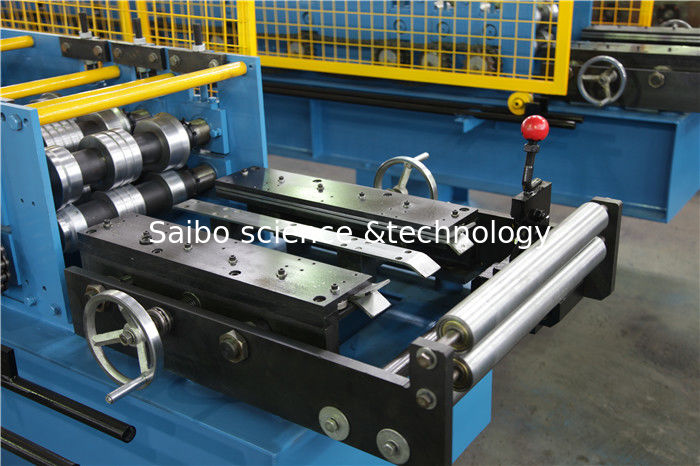

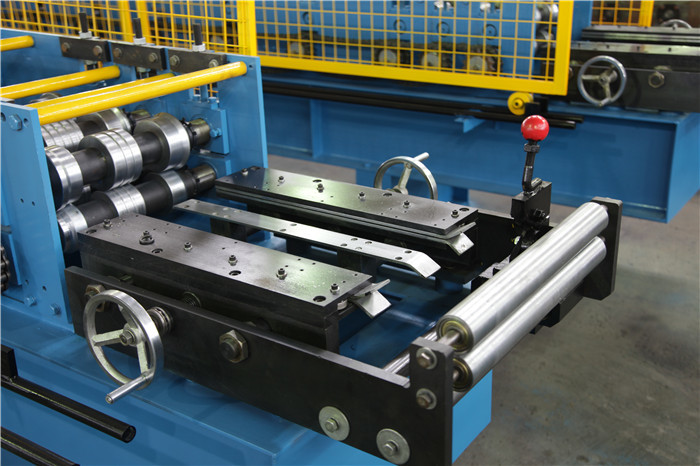

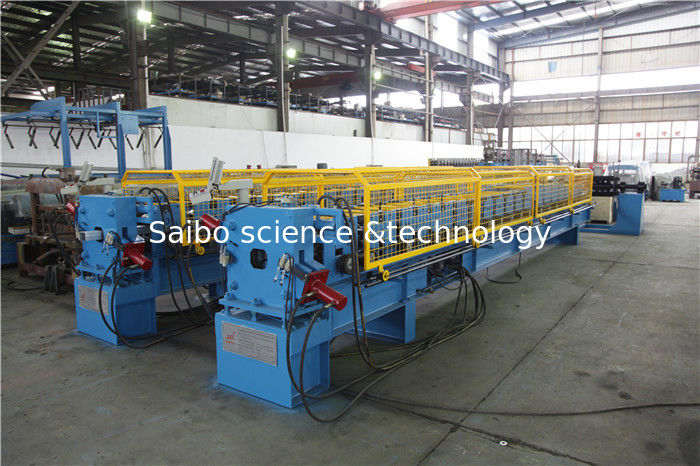

Square Downspout Roll Forming Machine Single Chain Drive 406mm Width

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX86 - 101.7
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 60 working days after received deposit
Supply Ability: 300 sets per year
Contact Now
Detail Information
Product Name: Downspout Roll Forming Machine Power: 5.5kw+5.5kw+2.2kw
Size: 86-101.7 Decoiler: Manual
Station: 20 Stations Roller Material: 45# Steel
Drive: Single Chain Container Need: 1X40GP

Product Description

 Main specification



No Specification of the material

1



Suitable Material Colored Steel plate, Galvanized steel

2



Width of the raw material 406mm
3 Thickness 0.4-0.7mm





Profile drawing:

Square Downspout Roll Forming Machine Single Chain Drive 406mm Width

The Chart of Process Flow

Square Downspout Roll Forming Machine Single Chain Drive 406mm Width

Manual Uncoiler—Roll Forming—Cutting—out table



Specification of Components



No   Technical Specification & Remark
1

Manual Uncoiler







  • Capability: 3 Ton
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual
2

Main Roll Forming Machine





  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢65mm material: SAE1045 with tempering
3

Machine structure:





  • Main frame by 350H beam welding
  • Machine structure: wall board panel
4

Hydraulic cutting system





  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,5.5KW
5

Hydraulic System











  • Hydraulic power: 5.5kw
  • Working pressure: 12-16Mpa adjustable





6

Computer Control Cabinet







  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • PLC: Panasonic
7

Out table





  • Size: 2m
  • One out table with three support roller
  • Quantity: 2 units
8

Bending machine







  • Max bend angle: 90°
  • Function: bend and fasten at the same time
  • power; 2.2kw





6. Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
