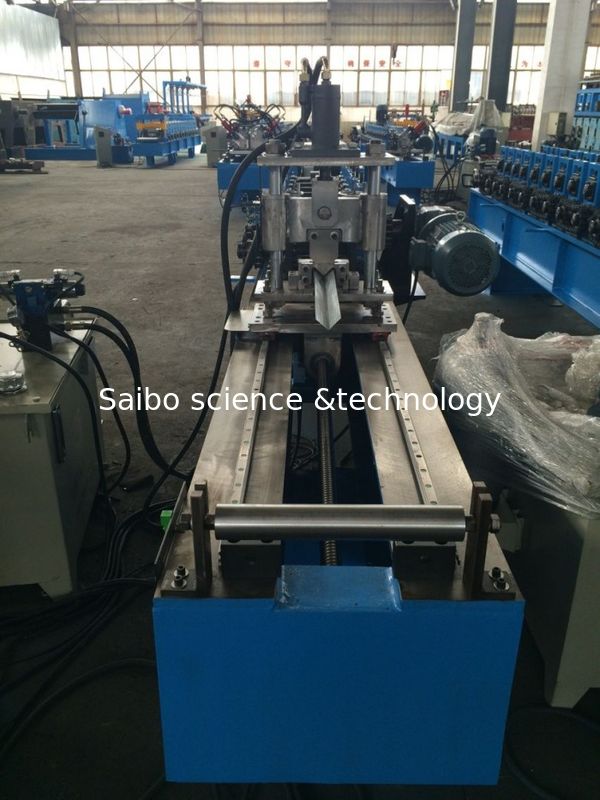

High Speed Ceiling Roll Forming Machine with Manual Decoiler 0.4-0.8mm

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: Angle roll forming machine
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T, L/C
Supply Ability: 300 sets per year
Contact Now
Detail Information
Product Name: Stud Panel Roll Forming Machine Power: 11KW+7.5w With Fan System
Size Of Purlin: Angle Roll Forming Machine Steel Thickness: 0.4-0.8mm
Decoiler: Manual Station: 7 Stations + One Station For Rectify
Roller Material: ASTM1045 Chrome Plated Surface With Chrome Drive: By Chain

Product Description

High Speed Steel Stud Roll Forming Machine with Manual Decoiler 0.4-0.8mm



1. Specification of the material

1 Suitable Material Colored Steel plate, Galvanized steel
2 Width of the raw material According to the final profile
3 Thickness 0.4mm-0.8mm



2. Machine Detailed Parameters

1 Roll Forming



Angle roll forming machine



2 Machine structure



Wire-electrode cutting structure
3 Total power

Motor power-11kw

Hydraulic power-7.5kw with fan system
4 Roller stations



About 7 stations + one station for rectify



5

Productivity



0-40m/min
6

Drive system



By chain
7

Diameter of shaft



¢56mm solid shaft
8

Servo motor



3kw
9

Voltage



380V 50Hz 3phases (Customized)
10

Color Of The Machine



Yellow and blue

11

Deliver Time



70 days
12

Terms Of Payment



30%T/T 70% pay before shipment



3. Profile drawing

High Speed Ceiling Roll Forming Machine with Manual Decoiler 0.4-0.8mm



4. The Chart of Process Flow

High Speed Ceiling Roll Forming Machine with Manual Decoiler 0.4-0.8mm





5. Specification of Components



(1) 3T Manual Un-coiler

  • Adopt automatic hydraulic system for expand
  • Width of feeding: 350mm
  • Capability: 3 Ton
  • Bound of expand &fight: 380mm—520mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual



(2) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢56mm material: SAE1045 with quenching and tempering
  •

(3) Machine Structure

  • Main frame by 350H beam welding
  • Machine structure: Wire-electrode cutting



(4) Track cutting system

  • Machine adopt track cutting system, Non-stop
  • Cutting power by hydraulic, 7.5KW
  • Track cutting by servo motor, power in 3.0KW
  • Cutting after forming: Cut the sheet after roll forming to required length
  • Cutting motion: The main machine is NON-stop when cutting
  • Material of blade:Cr12 with heat treatment 58-60°



(5) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization
