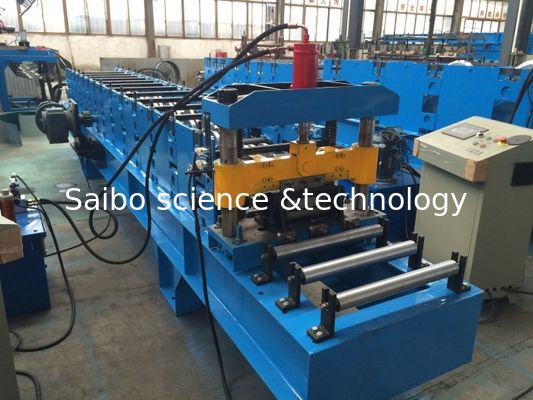

Automatic Hydraulic Ceiling Roll Forming Machine 20GP Container

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX50-162.5
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T, L/C
Supply Ability: 300 sets per year
Contact Now
Detail Information
Product Name: Stud Panel Roll Forming Machine Power: 4KW+3kw
Size Of Purlin: YX50-162.5 Steel Thickness: 0.5mm
Decoiler: Manual Station: 15 Stations
Roller Material: 45# Forge Steel, Surface With Chrome Shaft Diameter: Ф56mm Solid Shaft
Drive: By Chain Voltage: 380V, 50HZ, 3Phase

Product Description

Normal Speed Stud Roll Forming Machine YX50-162.5 Roll Forming Machine by Chain



1. Specification of the material



1. Sutiable Material: PI/PPGI
2. Width of the raw material: 300mm

3. Thickness: 0.5mm



2. Machine Detailed Parameters

1 Roll Forming



YX50-162.5



2 Machine structure



Wall board structure
3 Total power

Motor power-4kw

Hydraulic power-3kw
4 Roller stations

About 15 station



5

Productivity



0-15m/min
6

Drive system



By chain
7

Diameter of shaft



¢56mm solid shaft
8

Voltage



380V 50Hz 3phases (Customized)
9

Container need



20GP container
10

Color Of The Machine



Yellow and blue

11

Deliver Time



70 days
12

Terms Of Payment



30%T/T 70% pay before shipment



3. Profile drawing

Automatic Hydraulic Ceiling Roll Forming Machine 20GP Container



4. The Chart of Process Flow

Automatic Hydraulic Ceiling Roll Forming Machine 20GP Container





5. Specification of Components



(1) 3T Manual Un-coiler

  • Adopt automatic hydraulic system for expand
  • Width of feeding: 350mm
  • Capability: 3 Ton
  • Bound of expand &fight: 380mm—520mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual



(2) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢56mm material: SAE1045 with quenching and tempering



(3) Machine Structure

  • Main frame by 350H beam welding
  • Machine structure: Wall board



(4) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Uses two hydraulic cylinders for operation.
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,3KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product



(5) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization
