Detail Information

Product Name:	CU Purlin Roll Forming Machine	Power:	30KW+7.5KW
Size Of Purlin:	80-200	Steel Thickness:	1.5-4.0mm
Decoiler:	Hydraulic	Station:	16 Stations
Roller Material:	Gcr15 With Chrome Treatment	Drive:	One Side Of Gear Box
Container Need:	1X40GP+1X20GP	Cutting:	Post Cutting Which Can Adjust The Size
Highlight:	Rolling Shutter Strip Making Machine , Corrugated Iron Sheet Making Machine

Product Description

main speficication:

Steel thickness (t): 1,5 mm to 4,0 mm;
Profile height (h): 80 mm to 200 mm;
Flange width (b): 40 mm to 50 mm;
Flange height (c): 12 mm to 20 mm;

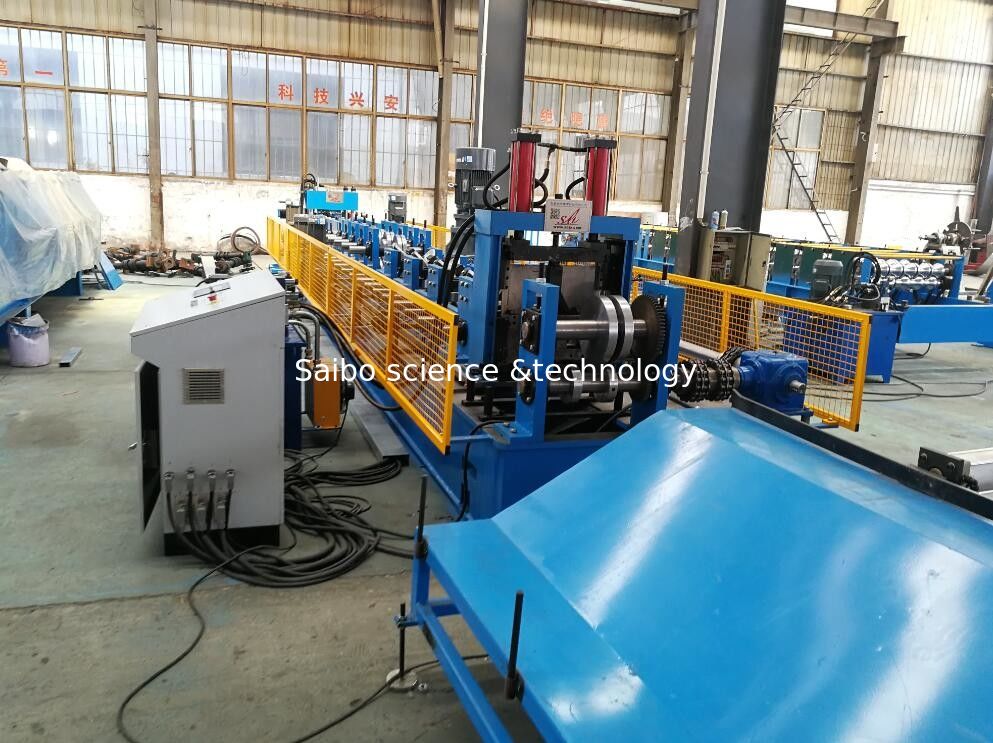

16 stations CU Channel Roll Forming Machine For Steel Constructions 4mm thickness 0

16 stations CU Channel Roll Forming Machine For Steel Constructions 4mm thickness 1

2. The Chart of Process Flow

**Specification**
No		Technical Specification & Remark
1	5T hydraulic decoiler	Steel coil width: 550 mm; Internal diameter of coil: variable, from 470 mm to 520 mm Maximum coil weight: 5000 Kg; Main motor power: 5.5KW Hydraulic power: 4kw
2	Leveling part	Flattener roller: upper is 3 rollers, down is 4 stations(total is 7 rollers) Flattener roller material: SAE 1045 thermal treatment hardness 48-52 HRC. Flattener roller: material is SAE 1045, hardening and tempering
3	Punching system	Base on customer provide punching drawing, this machine need adopt two units hydraulic punching system before roll forming. Hydraulic power: 7.5kw
4	Main Roll Forming Machine	Thickness range: 1.5-4.0mm Main motor power:30kw Adjust flange and width: by 1.5kwX3 Roll station: 16 stations Shaft diameter: ￠85mm material: SAE1045 with quenching and tempering One side gear box driving
5	Correction adjust system	Correction of the product sheet to be straight.
6	cutting system	hydraulic post cutting after roll forming one set of cutting blade can make all the sizes by adjustment Hydraulic power: 7.5kw
6	Hydraulic System	Hydraulic power: 7.5kw Working pressure: 20Mpa adjustable Solenoid valve: 3 groups Hydraulic oil: 46# hydraulic oil
7	Computer Control Cabinet	Programmable setting of profile length and quantity Operating system language: English and Chinese Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved Length inaccuracy can be amended easily. PLC brand: Panasonic
8	auto stacker	Length: 6 meters Quantity: 1 unit

4. Warranty

Warranty: 1 year warranty from date of shipment
Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.

Tag:

Place of Origin:	China
Brand Name:	Saibo
Certification:	CE/ISO
Model Number:	80-200

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	Suitable for ocean shipment
Delivery Time:	90 days
Payment Terms:	L/C, T/T
Supply Ability:	300 sets per year
