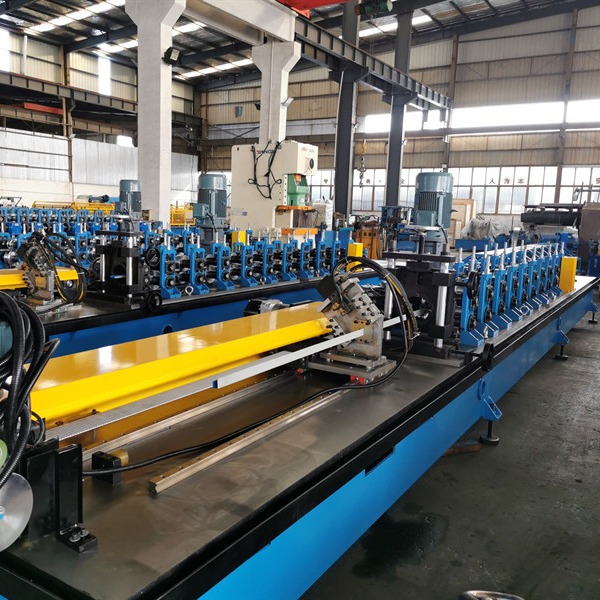

Hydraulic Double Head Ceiling Roll Froming Machine 0.8mm With Track Cutting

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: High Speed Ceiling Roll Froming Machine
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T, L/C
Supply Ability: 300 sets per year
Detail Information
Product Name: High Speed Ceiling Roll Froming Machine Power: 15KW+7.5w
Size Of Purlin: Omega Steel Thickness: 0.4-0.8mm
Decoiler: Hydraulic Double Head Decoiler Station: 14 Stations + One Station For Rectify
Roller Material: CR12 Chrome Plated Surface With Chrome Drive: By Gear Box
Speed: 0-60m/min Warranty: 1 Year
High Light:

Hydraulic double head Ceiling Forming Machine


0.8mm Ceiling Roll Froming Machine

Product Description

High Speed Ceiling Roll Froming Machine


1. Specification of the material

1 Suitable Material Galvanized steel 350Mpa
2 Width of the raw material According to the final profile
3 Thickness 0.4-0.8mm


2. Machine Detailed Parameters

1 Roll Forming


High Speed Ceiling Roll Froming Machine


2 Machine structure


Wire-electrode cutting
3 Total power

Motor power-15kw

Hydraulic power-7.5kw

Servo power-2.9kw

4 Roller stations


About 14 stations + one station for rectify






Drive system


By gear box

Diameter of shaft


¢65mm solid shaft



380V 50Hz 3phases (Customized)

Color Of The Machine


Yellow and blue


Deliver Time


70 days

Terms Of Payment


30%T/T 70% pay before shipment


3. Profile drawing

Hydraulic Double Head Ceiling Roll Froming Machine 0.8mm With Track Cutting 0


4. The Chart of Process Flow

Hydraulic Double Head Ceiling Roll Froming Machine 0.8mm With Track Cutting 1



5. Specification of Components


(1) 3T Double head decoiler

  • Steel coil width: 500 mm;
  • Internal diameter of coil: variable, from380 mm to 520 mm
  • Maximal out diameter:1200mm
  • Maximum coil weight: 3000 Kgx 2;
  • Quantity: 1


(2) Main Roll Forming Machine

  • Roller material:CR12 chrome plated surface with chrome, HRC58-62 degree
  • Shaft diameter: ¢65mm material: SAE1045 with tempering
  • To avoid accidents, the driven parts will be covered with the protective cover
  • Cooling system is consider

(3) Machine Structure

  • Main frame by 350H beam welding
  • Machine structure: Wire-electrode cutting


(4) Track cutting system

  • Machine adopt track cutting system, Non-stop
  • Cutting power by hydraulic, 7.5KW
  • Track cutting by servo motor, power in 2.9KW
  • Cutting after forming: Cut the sheet after roll forming to required length
  • Cutting motion: The main machine is NON-stop when cutting
  • Material of blade:Cr12 with heat treatment 58-60°


(5) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization




a. Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.


b. In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain

transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked whenit is working


c. Feature : Ensure stability , precision and lifetime.

Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety factor.
