4.0mm Sigma Purlin Roll Forming Machine 10m/Min High Speed

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: Sigma purlin
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 90 days
Supply Ability: 300 sets per year
Detail Information
Product Name: High Speed Sigma Purlin Roll Forming Machine 14.0mm By Gear Box Total Power: 80kw
Steel Thickness: 4.0mm Suitable Material: Galvanized Steel 345Mpa
Station: About 15stations +1 Stations Torque Head Roller Material: Cr12 Chrome Plated Surface With Hardness 58-62 Degree
Shaft Diameter: ¢100mm Productivity: 0-10m/min
Motor Brand: Siemens
High Light:

80kw Sigma Purlin Roll Forming Machine


4.0mm Sigma Purlin Roll Forming Machine


10m/min high speed roll forming machine

Product Description

High Speed Sigma Purlin Roll Forming Machine 4.0mm By Gear Box


Main speficication:


4.0mm Sigma Purlin Roll Forming Machine 10m/Min High Speed 0


2. The Chart of Process Flow

4.0mm Sigma Purlin Roll Forming Machine 10m/Min High Speed 1

5T hydraulic un-coiler— Flatten—Servo feeding& punching—Roll Forming— Rectify—Track Cutting& punching—Out table



No   Technical Specification & Remark

5T hydraulic decoiler


  • Steel coil width: 500 mm;
  • Internal diameter of coil: variable, from 470 mm to 520 mm
  • Maximum coil weight: 5000 Kg;
  • Main motor power: 5.5KW
  • Hydraulic power: 4kw

Leveling part


  • 7 roller for leveling , up 3 rollers, down 4 rollers
  • Leveling roller: 40CR, quenching, shaft diameter : 76mm
  • Feeding roller: 40CR, quenching, shaft diameter : 95mm
  • Power: 5.5KW
  • Drive by gear box, model: MTTX160
  • Leveling speed: 0-30m/min

Servo feeding& Punching


  • Servo feeding system
  • This system adopt servo feeding to make high speed and precision
  • Servo power: 3KW (Brand: YASKAWA)
  • Punching system
  • Base on customer provide punching drawing, this machine need adopt 1 unit hole punching and words punching
  • Punching table: 8m
  • The punches and dollies will be CR12MOV, quenching
  • Hydraulic power: 7.5kw
  • Solenoid valve: 3 groups

Feeding of forming

  • Guide sheet to forming section
  • Three line rollers.
  • Two hand wheel adjust size in same time

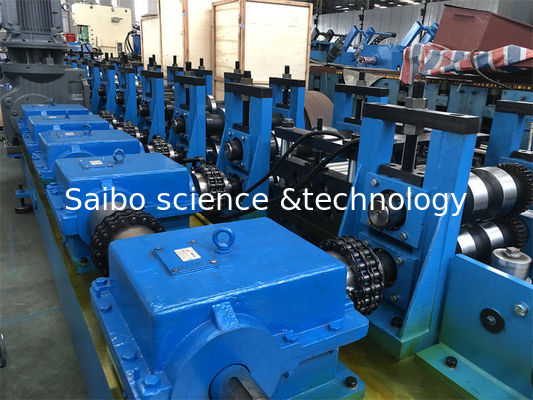

Main Roll Forming Machine



  • Stand design by wire-electrode cutting, thickness in 52mm

  • Roller material: CR12 surface quenching, HRC58-62 degree, finish turning.

  • Shaft diameter: ¢100mm , material: 40Cr with tempering and hardness

  • To avoid accidents, the driven parts will be covered with the protective cover, height: 1.5m

  • Main power: 45KW



Correction adjust system


  • Function: make the end product in straight, left and right, up and down

Hydraulic Cutting System


  • Adopt the hydraulic track cutting
  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade: CR12MOV, quenching
  • Cutting power by hydraulic, 7.5KW
  • Servo power: 3KW
  • Working pressure: maximal 25Mpa
  • Solenoid valve: 1 group
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product

Computer Control Cabinet


  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity.
  • Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • PLC brand: Panasonic
  • Touch screen: Siemens
  • VFD:Yaskawa





  • Working by air compressor
  • Air compressor: provide by buyer
  • Length in 6m


4. Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation
