Drive by Chain Stud Roll Forming Machine Normal Speed Double Line
1. Specification of the material
| 1 |
Suitable Material |
Colored Steel plate, Galvanized steel |
| 2 |
Width of the raw material |
According to the final profile |
| 3 |
Thickness |
0.3-0.8mm |

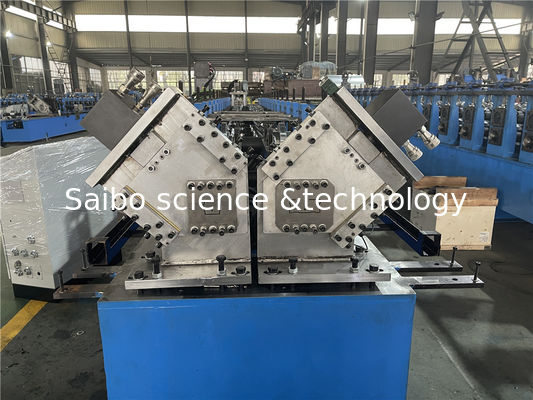

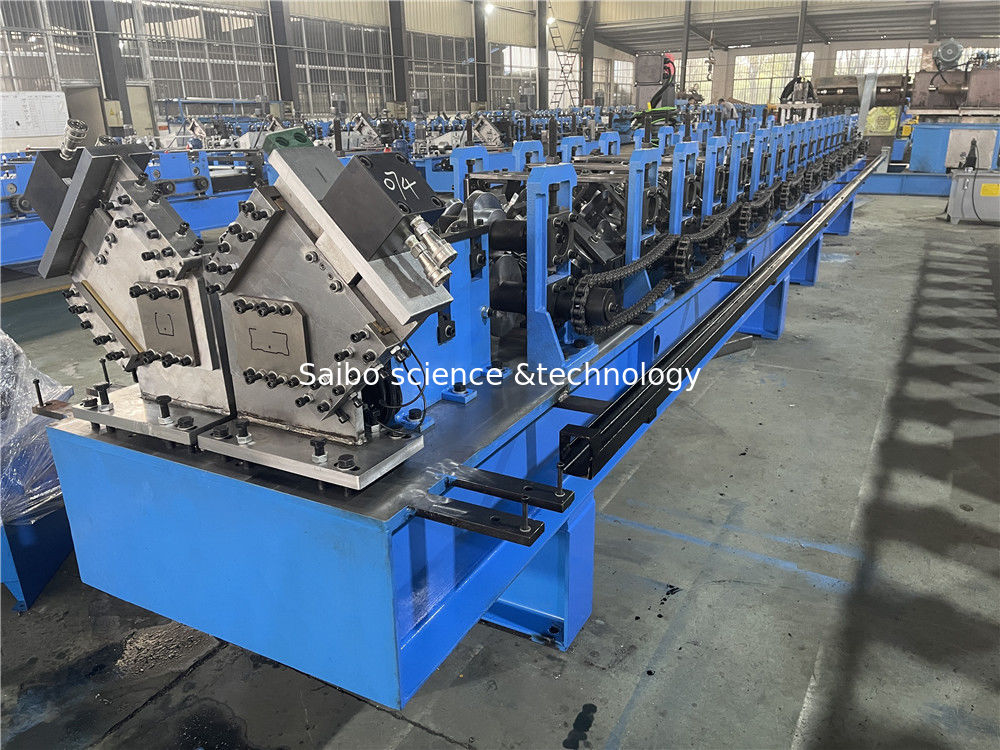

2.Photos for reference
3. Machine Detailed Parameters
| 1 |
Roll Forming
|
Double row roll forming machine
|
| 2 |
Machine structure
|
Wire-electrode cutting structure |
| 3 |
Total power |
Motor power-5.5kw
Hydraulic power-4kw |
| 4 |
Roller stations |
About 14stations
|
| 5 |
Productivity
|
0-15m/min |
| 6 |
Drive system
|
By chain |
| 7 |
Diameter of shaft
|
￠56mm solid shaft |
| 8 |
Voltage
|
380V 50Hz 3phases (Customized) |
| 9 |
Container need
|
40GP container |
| 10 |
Color Of The Machine
|
Yellow and blue
|
| 11 |
Deliver Time
|
70 days |
| 12 |
Terms Of Payment
|
30%T/T 70% pay before shipment |
4. The Chart of Process Flow
5. Specification of Components
(1) 3T Double Head Manual Un-coiler
- Adopt automatic hydraulic system for expand
- Width of feeding: 350mmx2
- Capability: 3 Tonx2
- Bound of expand &fight: 380mm—520mm
- Mode of expand &fight: inner expand &fight by manual
- Way of feeding: manual
(2) Main Roll Forming Machine
- Roller material:ASTM1045 chrome plated surface with chrome
- Shaft diameter: ￠56mm material: SAE1045 with quenching and tempering
(3) Machine Structure:
- Main frame by 350H beam welding
- Machine structure: Wire-electrode cutting
(4) Hydraulic Cutting System
- Cutting after forming: Cut the sheet after roll forming to required length
- Uses two hydraulic cylinders for operation.
- Material of blade:Cr12, 58-62 HRC hardness
- Cutting power by hydraulic,4KW
- Working pressure: 12Mpa adjustable
- Length measuring: Automatic encoder length measuring
- Tolerance of length: +/- 1.5mm for each piece end product
(5) Computer Control Cabinet
- Programmable setting of profile length and quantity
- Operating system language: English and Chinese
- Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
- PLC: Panasonic or customerization
FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you have this roof panel roll forming machine in stock?
A: No, machine is made to order.
