| Place of Origin: | China |
|---|---|
| Brand Name: | Saibo |
| Certification: | CE/ISO |
| Model Number: | Ceiling Section Roll Froming Machine |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Suitable for ocean shipment |
| Delivery Time: | 70 working days after received deposit |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 300 sets per year |
| Product Name: | Ceiling Section Roll Froming Machine | Power: | 15KW+7.5w |
|---|---|---|---|
| Size Of Purlin: | Omega | Steel Thickness: | 0.4-0.8mm |
| Decoiler: | Manual Double Head Decoiler | Station: | 13 Stations + One Station For Rectify |

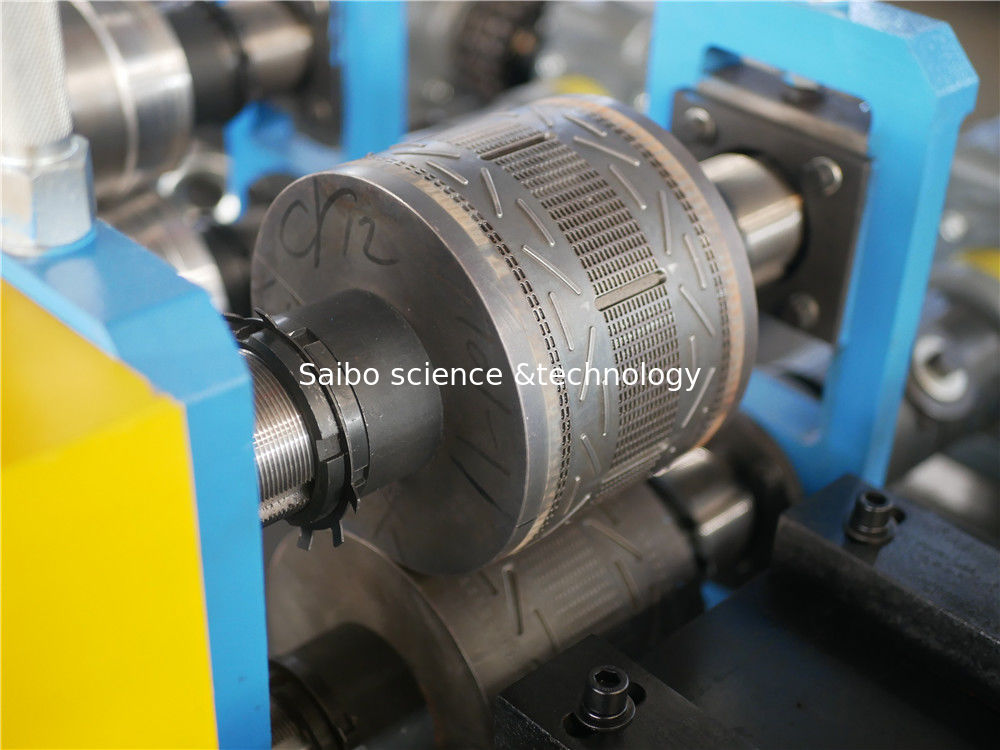

| Roller Material: | CR12 Chrome Plated Surface With Chrome | Drive: | By Gear Box |
| Speed: | 0-60m/min | Warranty: | 1 Year |
| Highlight: | Ceiling Roll Forming Machine 60m/Min,CE/ISO Ceiling Section Roll Former,0.8mm Ceiling Roll Forming Machine |
||

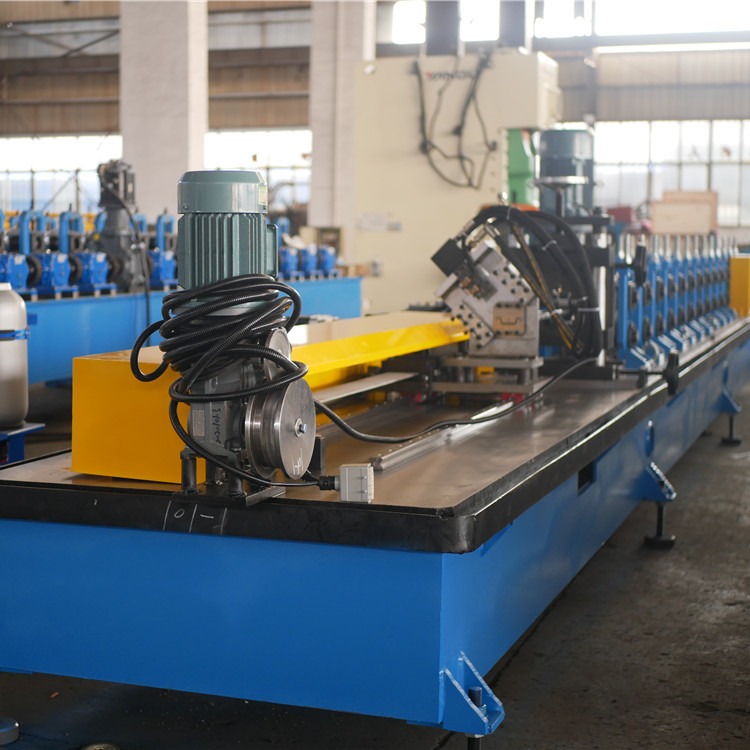

Ceiling Section Roll Froming Machine
1. Specification of the material
| 1 | Suitable Material | Galvanized steel 350Mpa |
| 2 | Width of the raw material | According to the final profile |
| 3 | Thickness | 0.4-0.8mm |
2. Machine Detailed Parameters
| 1 | Roll Forming
|
High Speed Ceiling Roll Froming Machine
|
| 2 | Machine structure
|
Wire-electrode cutting |
| 3 | Total power |
Motor power-15kw Hydraulic power-7.5kw Servo power-2.9kw |
| 4 | Roller stations |
About 14 stations + one station for rectify
|
| 5 |
Productivity
|
60m/min |
| 6 |
Drive system
|
By gear box |
| 7 |
Diameter of shaft
|
￠65mm solid shaft |
| 8 |
Voltage
|
380V 50Hz 3phases (Customized) |
| 9 |
Color Of The Machine
|
Yellow and blue |
| 10 |
Deliver Time
|
70 days |
| 11 |
Terms Of Payment
|
30%T/T 70% pay before shipment |
3. Profile drawing
4. The Chart of Process Flow
5. Specification of Components
(1) 3T Double head decoiler
(2) Main Roll Forming Machine
(3) Machine Structure
(4) Track cutting system
(5) Computer Control Cabinet
Usage:
a. Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.
b. In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain
transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked whenit is working
c. Feature : Ensure stability , precision and lifetime.
Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety factor.
