11KW Roofing Panel Roll Forming Machine With Chain Drive Include 6T Hydraulic Decoiler

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: Roofing Panel
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T or L/C
Supply Ability: 300 sets per year
Detail Information
Product Name: Roofing Roll Forming Machine Power: 11KW+7.5kw
Steel Thickness: 0.3-0.8mm Decoiler: 6T Hydraulic Decoiler
Roll Station: About 22 Stations Roller Material: ASTM1045 Chrome Plated Surface With Chrome
Shaft Diameter: 76mm Drive System: By Chain
Highlight:

6T Roll Forming Machine

,

11KW Roll Forming Machine

,

Chain Drive Roll Forming Machine


Product Description

Roofing Roll Forming Machine line



1). To design and make the best roll forming machine

2). Choose the best material and components, and adopting our 20+ years experience;

3). The machine working speed can be 20m/min;

4). Very easy to install and operate.



1. Specification of the material

1 Suitable Material PI/ PPGI
2 Width of the raw material 914/1220mm
3 Thickness 0.3-0.8mm




2. Machine Detailed Parameters

1

Roll Forming Machine



Roofing roll forming machine
2

Machine structure



Wall board structure
3 Total power

About 18.5kw

4

Roller stations



22 stations

5

Productivity



0-20m/min
6

Drive system



By chain
7

Diameter of shaft



¢76mm solid shaft
8

Voltage



480V 60Hz 3phases (Customized)
9

Color Of The Machine



Bule and yellow
10

Deliver time



60 days
11

Terms Of Payment



30%T/T 70% pay before shipment



3. Profile drawing



11KW Roofing Panel Roll Forming Machine With Chain Drive Include 6T Hydraulic Decoiler 0



4. The Chart of Process Flow



Hydraulic Decoiler—Roll Forming—Cutting—Out table

11KW Roofing Panel Roll Forming Machine With Chain Drive Include 6T Hydraulic Decoiler 1

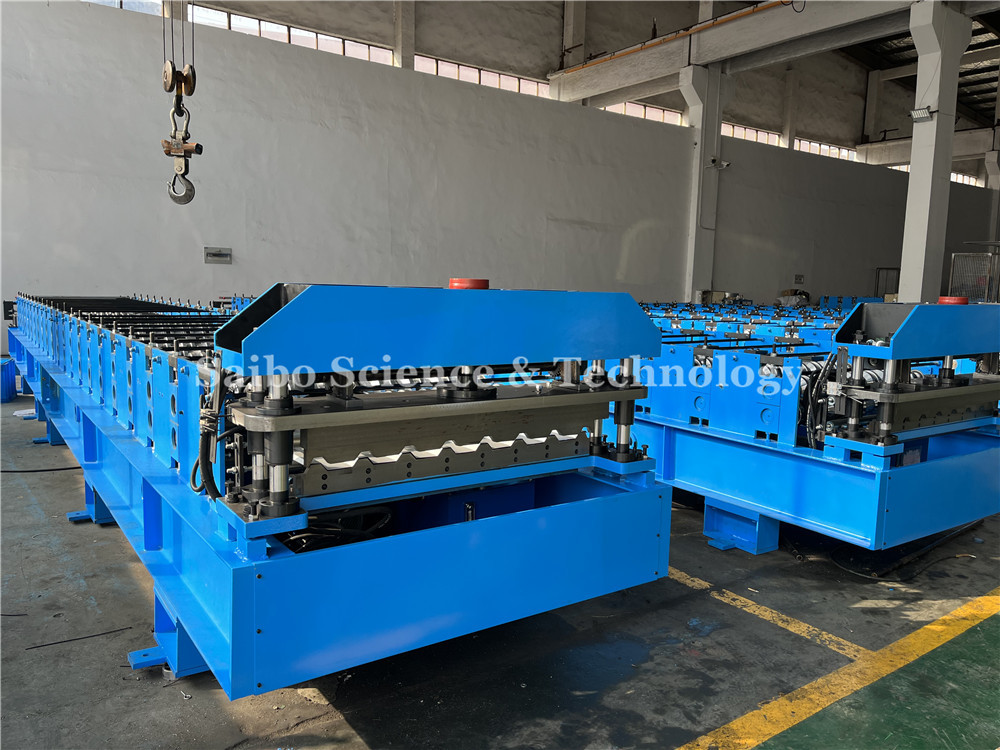

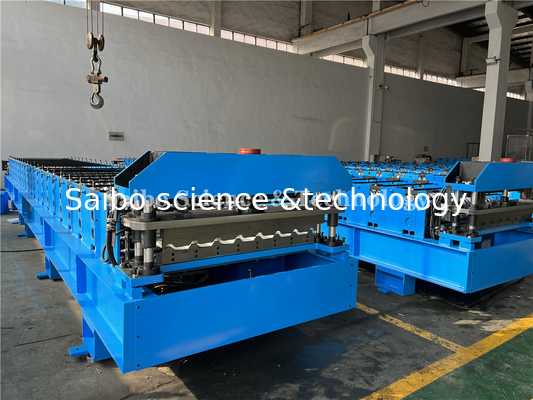

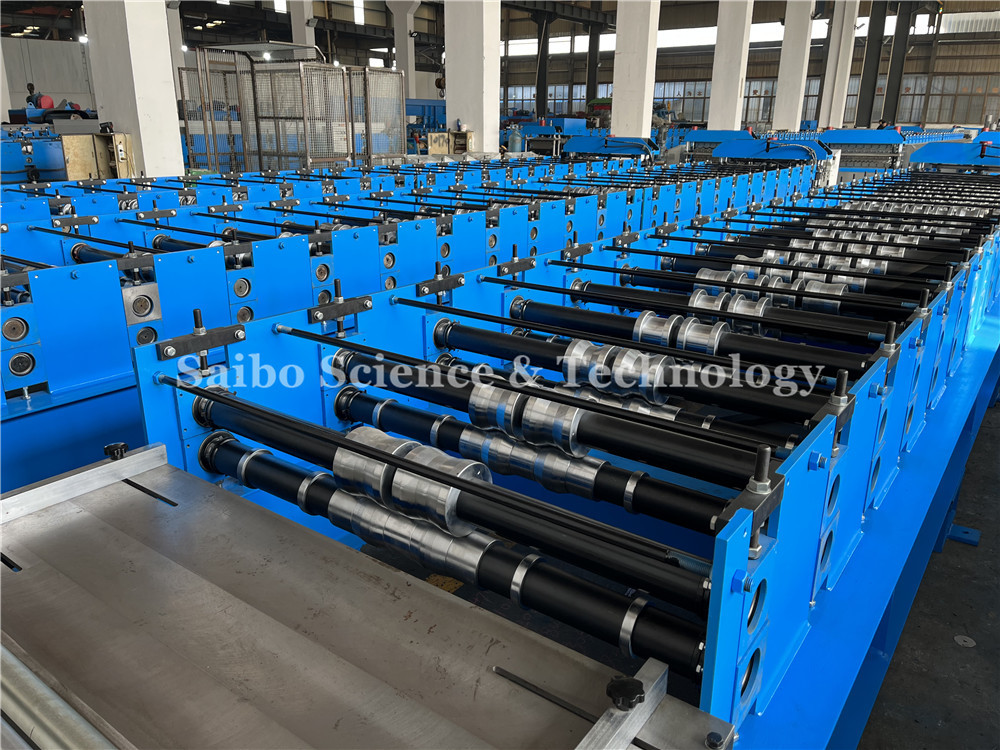

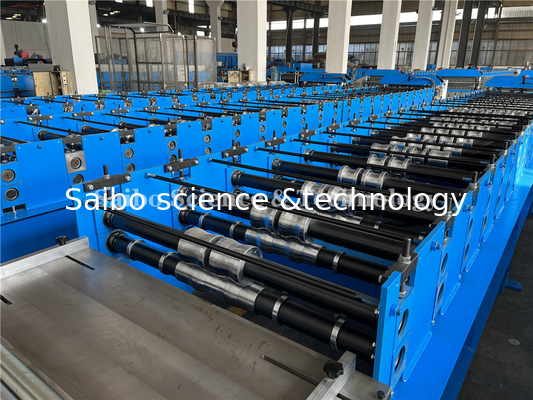

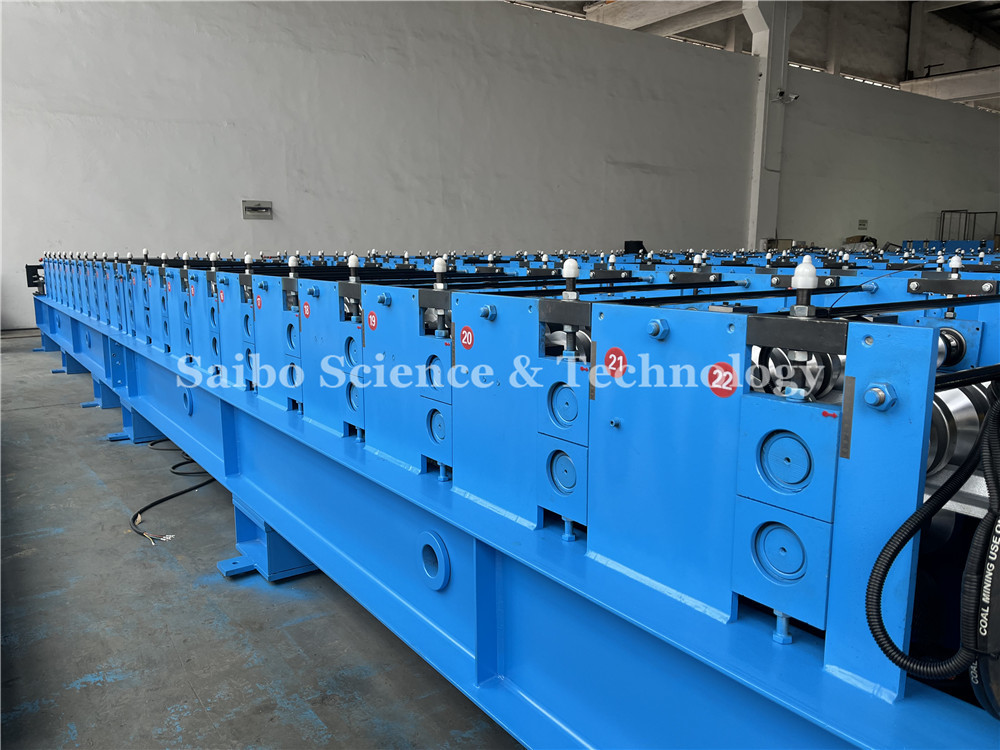

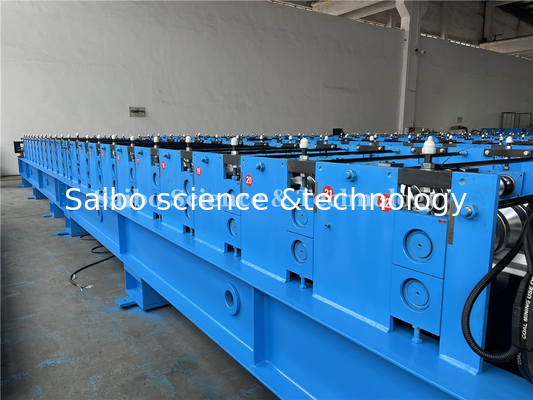

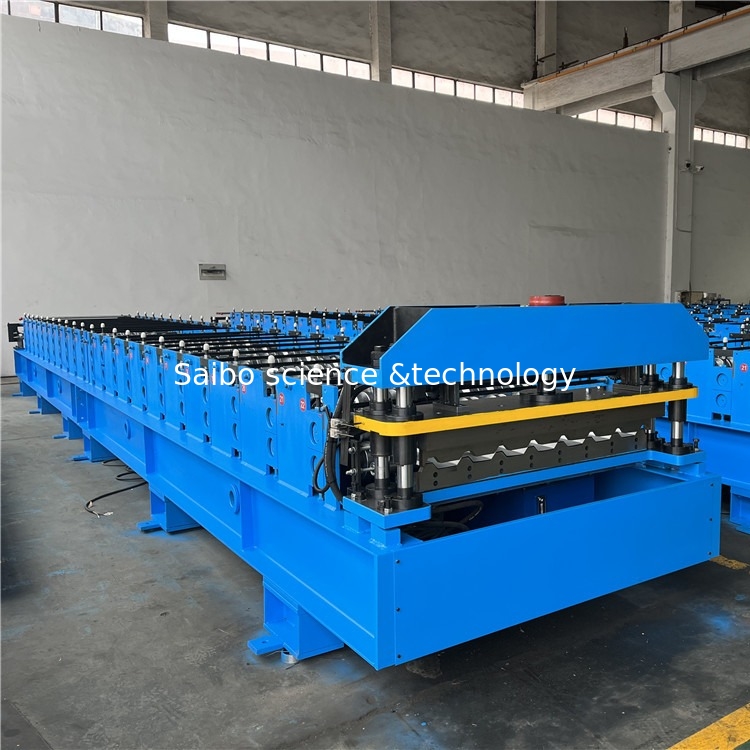

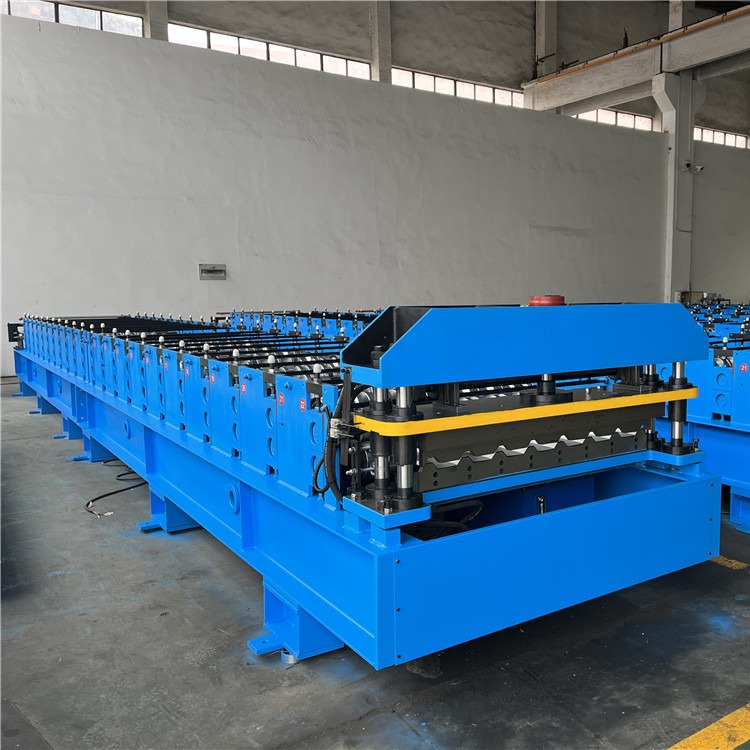

5. Machine photos for reference

11KW Roofing Panel Roll Forming Machine With Chain Drive Include 6T Hydraulic Decoiler 2

11KW Roofing Panel Roll Forming Machine With Chain Drive Include 6T Hydraulic Decoiler 3



6. Specification of Components



(1) 5T Hydraulic Un-coiler

  • Width of feeding: 1250mm
  • Capability: 5 Ton
  • Inter diameter: 460-560mm
  • Maximal out diameter: 1600mm
  • Working speed: 50m/min adjustable
  • Main motor power: 7.5KW AC motor
  • Hydraulic power: 4KW
  • Speed controlled by frequency converter
  • De-coiler should be with Loop control to prevent the material falling to the ground.
  • Color: blue
  • Quantity: 1

(2) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢76mm material: SAE1045 with quenching and tempering
  • Roll station: 22stations
  • Main machine power: 11kw



(3) Machine Structure

  • Main frame by 350H beam welding
  • Machine structure: wall board
  • Drive by chain



(4) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,7.5KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product



(5) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization
  • Touch screen: MCGS
  • Inverter: YASKAWA

7. FQA

Q1. What are the main key points for selecting right machines?

A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point. Good quality is for long-term business cooperation.

Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.

Q3. What’s your standard trade terms ?
A3: We can provide the technical offer with FOB,CFR,CIF,and so on. Please kindly tell the detailed port name for competitive ocean freight.

Q4. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
