High Efficiency Automatic 980 Glazed Tile Roll Forming Machine with 16 Stations and PLC Control

Brand Name: HENGFU
MOQ: 1 Piece
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Tile Type:
Glazed Steel
Certification:
CE, SGS
Condition:
New
Customized:
Customized
Usage:
Roof
Transmission Method:
Hydraulic Pressure
Transmission Mode:
Gear Drive
Cutting Method:
Four Column Pull Rod Guide Column Shear
Transport Package:
Plastic Film & Steel Wire Fixed
Specification:
7700mm*1800mm*1700mm
Production Capacity:
400set/Year
Package Gross Weight:
7000.000kg
Packaging Details:
Plastic Film & Steel Wire Fixed
Highlight:

automatic glazed tile roll forming machine

,

automatic glazed sheet roll forming machine

,

plc control glazed tile roll forming machine

Product Description
High Efficiency Automatic 980 Glazed Tile Roll Forming Machine
The Glazed Roll Forming Machine is an advanced industrial equipment designed for high-precision manufacturing of colored steel roofing tiles. Its performance and reliability are ensured by comprehensive detection and control components.
Precision Measurement & Control System
At the heart of the length measurement system lies a high-precision pulse encoder that provides real-time detection of colored steel tile length during production. This guarantees each produced sheet meets exact dimensional specifications. Mechanical limit switches serve as safety boundaries with up and down travel switches for pressing and cutting operations, preventing mechanical damage and ensuring accurate positioning.
Advanced Control & Operation

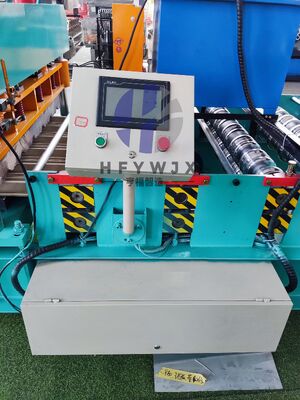

The operational logic is facilitated by the KDN-K306-24AR PLC from the high-performance KDN-K3 series, selected for its powerful processing capabilities and rich I/O configuration with 14 digital inputs and 10 relay outputs. For intuitive operation, the machine integrates a KDN text screen for parameter setting, real-time alarm prompts, help information, and production data display.
High-Speed Precision Performance
The KDN-K306-24AR PLC excels in high-digital pulse input performance with strong AB phase anti-interference ability, ensuring stable signal reading in electrically noisy environments. Through fixed value interrupt function, the system achieves micron-level accuracy in cutting and forming, ensuring flatness and consistency of final glazed tile products.
Parameter Setting & Operational Flexibility
The machine adopts a dual-category parameter setting system via the KDN text screen:
  • Equipment Parameters: Fixed basic settings for stable operation including single pulse length, overshoot compensation, pressing distance, pressing time and cutting time
  • User Parameters: Adjustable production indexes for different orders including number of sheets, target length, first and last section dimension, pitch and number of sections
Technical Specifications
Model NO980
ConditionNew
UsageRoof
Electric control systemPLC
Machine frame400H steel frame
Forming Speed4-6M/min
ColorCustomized
Type of DrivenChain drive
Transmission MethodHydraulic pressure
Number of rolling mill sets16 row molding
Spindle diameterΦ80mm (Solid shaft)
CustomizedCustomized
Feeding methodDouble hand rocking feeding rack
OriginCangzhou, Hebei
Warranty1 year
Raw materialsColor steel plate
Product Images

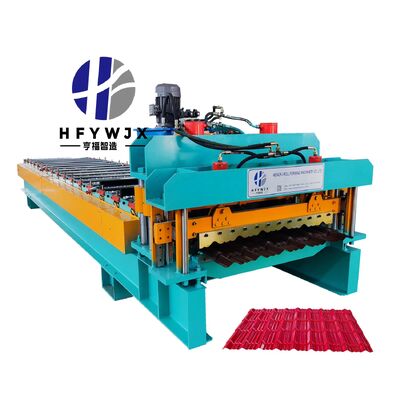

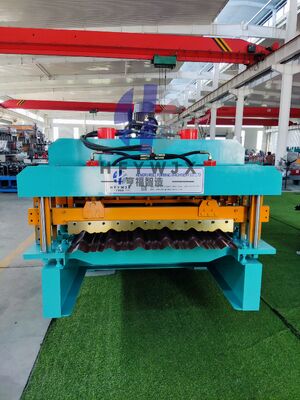

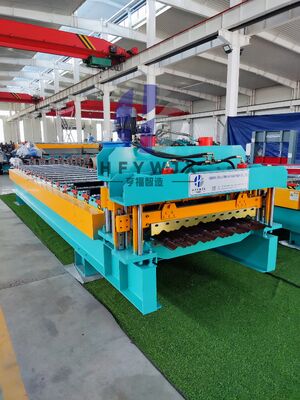

High Efficiency Automatic 980 Glazed Tile Roll Forming Machine with 16 Stations and PLC Control 0 High Efficiency Automatic 980 Glazed Tile Roll Forming Machine with 16 Stations and PLC Control 1 High Efficiency Automatic 980 Glazed Tile Roll Forming Machine with 16 Stations and PLC Control 2 High Efficiency Automatic 980 Glazed Tile Roll Forming Machine with 16 Stations and PLC Control 3 High Efficiency Automatic 980 Glazed Tile Roll Forming Machine with 16 Stations and PLC Control 4
Manufacturer Profile
Hebei Hengfu Roll Forming Machine Co., Ltd. is a professional manufacturer of cold-bending forming equipment and automated production lines. With advanced production equipment and product development capabilities, our products feature high rate, high precision, high flexibility, and low processing loss.
Main Products: Color steel plate equipment, glazed tile equipment, floor decking equipment, CIZ steel forming equipment, composite sandwich panel assembly line equipment, car compartment panels, dust removal anode plates and other equipment.
Global Reach: Products exported to over 50 countries including Africa, India, United Kingdom, Australia, and Kazakhstan.
Frequently Asked Questions
Q1: Are you a trading company or a factory?
A1: We are a manufacturer located in Cangzhou, Hebei with our own product design team. Welcome to visit our factory and inspect machine quality on-site.
Q2: Do you have after-sales support?
A2: Yes, we provide technical advice and have skilled technicians available worldwide.
Q3: Do you sell only standard machines?
A3: No, most machines are built according to customer specifications using top brand components.
Q4: What will you do if the machine is broken?
A4: We provide 12 months free warranty and lifetime free technical support. During warranty, we replace broken parts freely (customer pays express cost). Beyond warranty, we negotiate solutions and provide ongoing technical support.
Q5: Can you finish the machine during the delivery time?
A5: We complete machines according to determined lead times.
