This advanced glazed roll forming machine features a comprehensive testing and operating system. It utilizes pulse encoder technology for precise length detection of colored steel tiles and includes safety mechanisms such as up/down travel switches, operation buttons for pressing and cutter functions, emergency stop switch, and hydraulic start-stop controls to ensure secure and stable operation.

Advanced Control System

The machine is powered by a KDN-K306-24AR PLC from the KDN-K3 series, providing 14 input points and 10 relay outputs to fully meet equipment control requirements. With the supporting KDN text screen, operators can access parameter settings, alarm displays, help information, and real-time production data.

High-Performance Processing

The KDN-K306-24AR PLC delivers excellent high-speed input performance with strong anti-interference capability in AB phase mode. The fixed-value interrupt function ensures superior processing accuracy during length measurement and cutting operations.

Comprehensive Parameter Settings

Machine parameters are configured through the text screen and categorized into two types:

Equipment Parameters: Single pulse length, overshoot, pressing distance, pressing time, and cutting time
User Parameters: Sheet quantity, length, first section, last section, pitch, and number of sections

The control system also supports veneer cutting functionality to accommodate diverse production requirements.

Technical Specifications

Model NO	980
Condition	New
Usage	Roof
Electric Control System	PLC
Machine Frame	400H Steel Frame
Forming Speed	4-6 M/min
Color	Customized

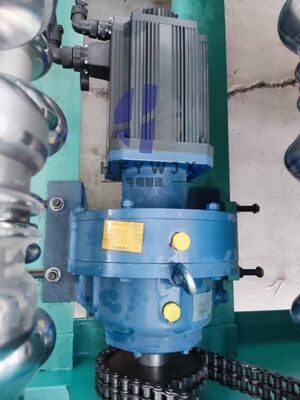

Type of Driven	Chain Drive
Transmission Method	Hydraulic Pressure
Number of Rolling Mill Sets	16 Row Molding
Spindle Diameter	Φ80mm (Solid Shaft)
Customized	Customized
Feeding Method	Double Hand Rocking Feeding Rack
Origin	Cangzhou, Hebei
Warranty	1 Year

Product Gallery

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.

What's the delivery time?

Normally it takes about 45 days.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

Can you finish the machine during the delivery time?

We will complete production on time according to the confirmed lead time.

Do you have after-sale support?

Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.

Any other service?

We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.

Tags:

Roof Wall Panel Roll Forming Machine

Glazed Tile Roll Forming Machine

Ridge Cap Roll Forming Machine

Trapezoidal Roll Forming Machine

Corrugated Roof Sheet Machine

Wall Panel Roll Forming Machine

Double Layer Roll Forming Machine

Corrugated Sheet Roll Forming Machine

High Altitude Roll Forming Machine Platform

Standing Seam Roll Former

High Altitude Lifting Platform

Light Steel Frame Roll Forming Machine

Cold Roll Forming Machine

Roller Shutter Door Roll Forming Machine

Profile Roll Forming Machine

Pipe Roll Forming Machine

Flange Forming Machine

Flexible Connection Production Line

Purlin Roll Forming Machine

Fence Roll Forming Machine

Gutter Downspout Machine

Cutting Shearing Machine

Cable Tray Roll Forming Machine

Solar Bracket Roll Forming Machine

Shelf Panel Roll Forming Machine

Auxiliary Equipment

Roof Wall Panel Roll Forming Machine

Glazed Tile Roll Forming Machine

Ridge Cap Roll Forming Machine

Trapezoidal Roll Forming Machine

Corrugated Roof Sheet Machine

Wall Panel Roll Forming Machine

Double Layer Roll Forming Machine

Corrugated Sheet Roll Forming Machine

High Altitude Roll Forming Machine Platform

Standing Seam Roll Former

High Altitude Lifting Platform

Light Steel Frame Roll Forming Machine

Cold Roll Forming Machine

Roller Shutter Door Roll Forming Machine

Profile Roll Forming Machine

Pipe Roll Forming Machine

Flange Forming Machine

Flexible Connection Production Line

Purlin Roll Forming Machine

Fence Roll Forming Machine

Gutter Downspout Machine

Cutting Shearing Machine

Cable Tray Roll Forming Machine

Solar Bracket Roll Forming Machine

Shelf Panel Roll Forming Machine

Auxiliary Equipment

products details

Roof Wall Panel Roll Forming Machine

Glazed Tile Roll Forming Machine

Ridge Cap Roll Forming Machine

Trapezoidal Roll Forming Machine

Corrugated Roof Sheet Machine

Wall Panel Roll Forming Machine

Double Layer Roll Forming Machine

Corrugated Sheet Roll Forming Machine

High Altitude Roll Forming Machine Platform

Standing Seam Roll Former

High Altitude Lifting Platform

Light Steel Frame Roll Forming Machine

Cold Roll Forming Machine

Roller Shutter Door Roll Forming Machine

Profile Roll Forming Machine

Pipe Roll Forming Machine

Flange Forming Machine

Flexible Connection Production Line

Purlin Roll Forming Machine

Fence Roll Forming Machine

Gutter Downspout Machine

Cutting Shearing Machine

Cable Tray Roll Forming Machine

Solar Bracket Roll Forming Machine

Shelf Panel Roll Forming Machine

Auxiliary Equipment

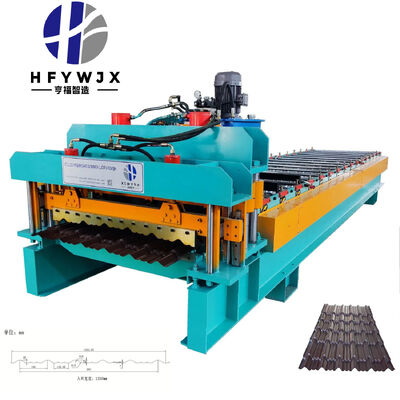

Industrial Grade 980 Model Glazed Tile Roll Forming Machine with 16 Row Molding and Hydraulic Pressure Transmission
