The Glazed Roll Forming Machine is equipped with comprehensive testing and manual operation components to ensure stable and safe production. Key safety features include:

Pulse encoder for precise colored steel tile length detection
Upper and lower travel switches for pressing mechanism
Upper and lower travel switches for cutting cutter
Independent up/down operation buttons for pressing and cutter actions
Emergency stop switch for immediate shutdown
Hydraulic start-stop switch for hydraulic system control

Advanced Control System

The machine's core controller utilizes the KDN-K306-24AR PLC from the KDN-K3 series, featuring 14 input points and 10 relay output points. This configuration perfectly meets the signal input and output requirements of the Glazed Roll Forming Machine, ensuring smooth control signal transmission.

Equipped with a dedicated KDN text screen, the machine enables efficient human-machine interaction. Operators can easily set parameters, view real-time equipment alarms, access operation help information, and monitor production data.

High-Performance Operation

The Glazed Roll Forming Machine requires high-performance high-speed digital pulse input functionality. The KDN-K306-24AR PLC delivers excellent high-speed digital input performance with strong anti-interference capability in its AB phase input, utilizing fixed value interrupt function to ensure operational accuracy.

Parameter Configuration

Parameter settings are divided into two categories:

Equipment Parameters: Single pulse length, overshoot, pressing distance, pressing time, cutting time
User Parameters: Number of sheets, processing length, first section, last section, pitch, number of sections

The control system also supports veneer cutting functionality to accommodate diverse production requirements.

Technical Specifications

Model NO	980
Condition	New
Usage	Roof
Electric control system	PLC
Machine frame	400H steel frame
Forming Speed	4-6M/min
Color	Customized
Type of Driven	Chain drive
Transmission Method	Hydraulic pressure
Number of rolling mill sets	16 row molding
Spindle diameter	Φ80mm (Solid shaft)
Customized	Customized
Feeding method	Double hand rocking feeding rack
Origin	Cangzhou, Hebei
Warranty	1 year
Raw materials	Color steel plate
Machine frame	400H steel frame

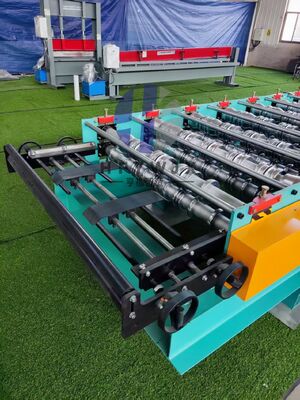

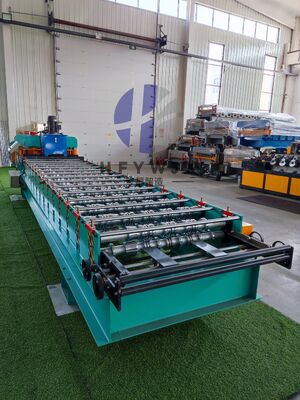

Product Gallery

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.

What's the delivery time?

Normally it takes about 45 days.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

Can you finish the machine during the delivery time?

We will complete production on time according to the confirmed lead time.

Do you have after-sale support?

Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.

Any other service?

We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.

Tags:

Roof Wall Panel Roll Forming Machine

Glazed Tile Roll Forming Machine

Ridge Cap Roll Forming Machine

Trapezoidal Roll Forming Machine

Corrugated Roof Sheet Machine

Wall Panel Roll Forming Machine

Double Layer Roll Forming Machine

Corrugated Sheet Roll Forming Machine

High Altitude Roll Forming Machine Platform

Standing Seam Roll Former

High Altitude Lifting Platform

Light Steel Frame Roll Forming Machine

Cold Roll Forming Machine

Roller Shutter Door Roll Forming Machine

Profile Roll Forming Machine

Pipe Roll Forming Machine

Flange Forming Machine

Flexible Connection Production Line

Purlin Roll Forming Machine

Fence Roll Forming Machine

Gutter Downspout Machine

Cutting Shearing Machine

Cable Tray Roll Forming Machine

Solar Bracket Roll Forming Machine

Shelf Panel Roll Forming Machine

Auxiliary Equipment

Roof Wall Panel Roll Forming Machine

Glazed Tile Roll Forming Machine

Ridge Cap Roll Forming Machine

Trapezoidal Roll Forming Machine

Corrugated Roof Sheet Machine

Wall Panel Roll Forming Machine

Double Layer Roll Forming Machine

Corrugated Sheet Roll Forming Machine

High Altitude Roll Forming Machine Platform

Standing Seam Roll Former

High Altitude Lifting Platform

Light Steel Frame Roll Forming Machine

Cold Roll Forming Machine

Roller Shutter Door Roll Forming Machine

Profile Roll Forming Machine

Pipe Roll Forming Machine

Flange Forming Machine

Flexible Connection Production Line

Purlin Roll Forming Machine

Fence Roll Forming Machine

Gutter Downspout Machine

Cutting Shearing Machine

Cable Tray Roll Forming Machine

Solar Bracket Roll Forming Machine

Shelf Panel Roll Forming Machine

Auxiliary Equipment

products details

Roof Wall Panel Roll Forming Machine

Glazed Tile Roll Forming Machine

Ridge Cap Roll Forming Machine

Trapezoidal Roll Forming Machine

Corrugated Roof Sheet Machine

Wall Panel Roll Forming Machine

Double Layer Roll Forming Machine

Corrugated Sheet Roll Forming Machine

High Altitude Roll Forming Machine Platform

Standing Seam Roll Former

High Altitude Lifting Platform

Light Steel Frame Roll Forming Machine

Cold Roll Forming Machine

Roller Shutter Door Roll Forming Machine

Profile Roll Forming Machine

Pipe Roll Forming Machine

Flange Forming Machine

Flexible Connection Production Line

Purlin Roll Forming Machine

Fence Roll Forming Machine

Gutter Downspout Machine

Cutting Shearing Machine

Cable Tray Roll Forming Machine

Solar Bracket Roll Forming Machine

Shelf Panel Roll Forming Machine

Auxiliary Equipment

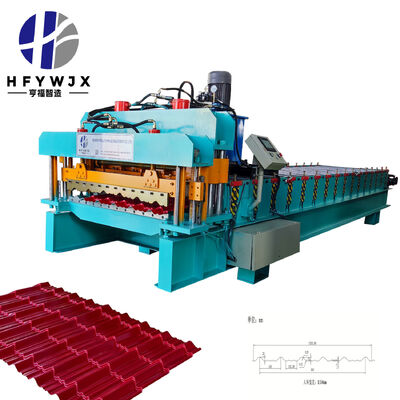

980 Glazed Tile Roll Forming Machine with 16 Row Molding and Hydraulic Pressure Transmission PLC Control
