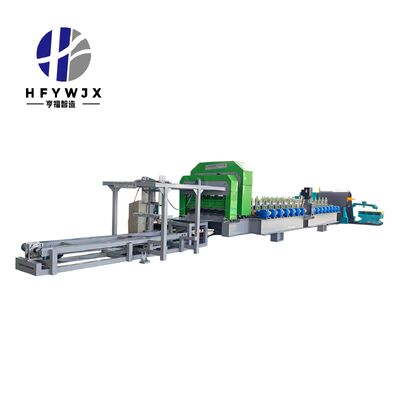

16 Roll Glazed Tile Making Machine 1110 Stable PLC Control For Glazed Tile Production

The roller table forming part of the 1110 partial arc roll forming machine serves as the core feeding and pre-processing unit. It is primarily driven by a high-efficiency motor, which provides stable power output. The power generated by the motor is efficiently transmitted to each individual forming roller through a robust chain drive system. This reliable transmission mechanism ensures that all rollers rotate synchronously and uniformly, enabling the colored steel plates to move forward smoothly and continuously during the production process. This stable operation lays a solid foundation for the precise forming of the subsequent pressing stage.

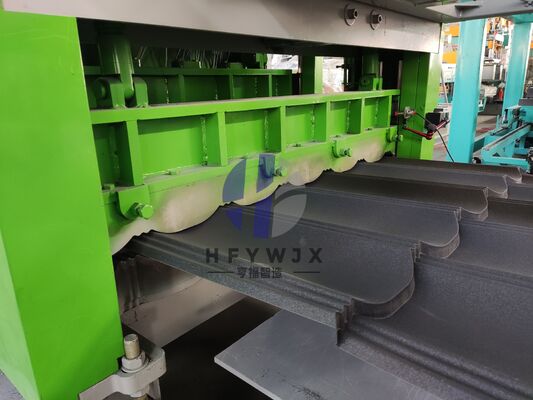

In the pressing section, a powerful hydraulic cylinder system is adopted to achieve the key profiling effect. The hydraulic cylinder drives the special pressing mold to move up and down with high precision and smooth motion. As the flat colored steel sheet passes through the mold area, the mold descends steadily under hydraulic pressure. It gradually presses the metal sheet into a series of continuous, multi-sectioned arcs, accurately replicating the classic contour of antique glazed tiles. This meticulous pressing process transforms the plain sheet metal into a building material with a distinct three-dimensional glazed tile shape.

The cutting knife part of the 1110 type arc glazed roll forming machine is designed for efficient and accurate cutting. Similarly, this part is actuated by a hydraulic cylinder, which controls the cutting knife to move up and down rapidly and firmly. Once the colored steel plate has been formed to the specified length by the preceding roller and pressing mechanisms, the cutting knife descends swiftly. It cleanly severs the formed material, ensuring that each finished glazed tile has a uniform length and a smooth, neat edge without burrs, thus meeting the standard production requirements.

The antique glazed tiles rolled and die-formed by the 1110 type partial arc equipment feature excellent aesthetic properties. They are characterized by a beautiful overall appearance, a simple yet elegant style, and a unique arc shape that highlights a strong artistic taste. These superior tiles have a wide range of applications and can be widely used in garden-style factories, tourist attractions, ancient pavilions, hotels, villas, exhibition halls, resorts, residential buildings, and various outdoor decorative projects, enhancing the decorative value of different architectural landscapes.
