High-Precision Durable C8 C21 Double Layer Trapezoidal Roll Forming Machine with PLC Control System

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Tile Type:

Glazed Steel

Certification:

CE, SGS

Condition:

New

Customized:

Customized

Usage:

Roof, Wall

Transmission Method:

Electric

Feed Width:

416mm

Control System:

PLC

Hydraulic Pump:

4kw

Transport Package:

Plastic Film & Steel Wire Fixed

Package Size:

510.00cm * 90.00cm * 200.00cm

Package Gross Weight:

7000.000kg

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

precision trapezoidal roll forming machine

precision double layer roll forming machine

c8 trapezoidal roll forming machine

Product Description

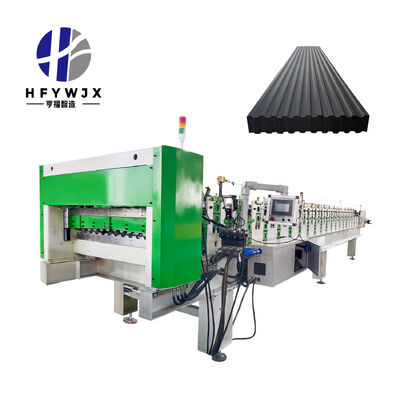

High-Precision Durable C8 C21 Double Layer Trapezoidal Roll Forming Machine

The C8 / C21 double layer trapezoidal roll forming machine is engineered to produce two distinct trapezoidal roofing profiles (C8 and C21) on a single, space-saving unit. By merging two independent forming layers into one compact structure, this equipment delivers a practical solution for manufacturers looking to cut operational costs, save valuable factory floor space, and boost production flexibility without investing in two separate machines.

Constructed with a heavy-duty welded frame and high-precision forming rollers, the machine ensures long-term stable operation and consistent, accurate profile dimensions even during continuous high-speed production. Its intuitive switching system allows for fast, seamless transitions between C8 and C21 profiles, making it perfect for factories that handle multiple roofing sheet orders and need to adapt quickly to changing project demands.

This versatile production line supports a wide range of raw materials, including galvanized steel, color-coated steel, and cold-rolled steel, with fully customizable sheet thickness and width to match specific project specifications. Whether for residential roofing, commercial construction, or industrial building projects, the machine can be tailored to meet diverse production requirements with ease.

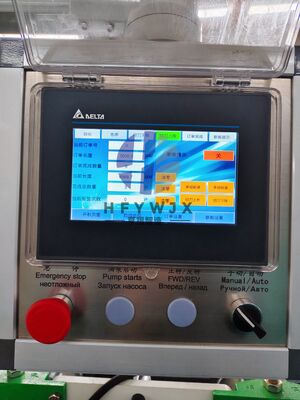

Equipped with an advanced PLC control system and a user-friendly touch screen interface, the machine enables one-button operation, automatic length and quantity setting, and precise control over the cutting process. This intelligent system minimizes manual intervention, reduces material waste, and ensures reliable, efficient production, helping businesses streamline their workflow and improve overall output quality.

Technical Specifications

Model NO	C8 C21 Double Layer Trapezoidal Roll Forming Machine
Condition	New
Feeding Width	1250±5mm
Machine frame	350H steel frame
Forming Speed	0-40M/min
Type of Driven	1.2-inch hardened chain
Transmission Method	Electric
Number of rolling mill sets	Type C8: ≥ 18 pairs; Type C21: ≥ 21 pairs
Spindle diameter	Φ80mm(Solid shaft)
Customized	Customized

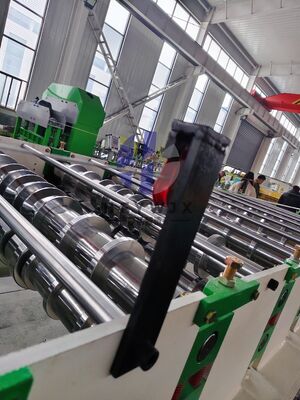

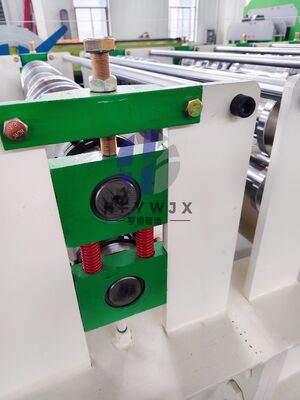

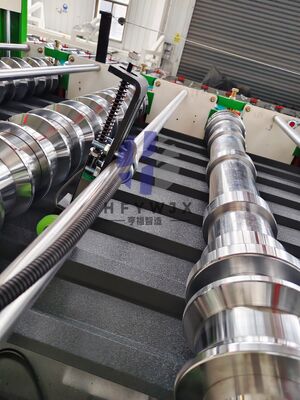

Product Gallery

Frequently Asked Questions

How many people are required to operate the machine?

It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.

How long is the warranty period?

The entire machine comes with a 12-month warranty, excluding wear parts.

Can it be connected to an automatic stacker?

Yes, optional systems for automatic material collection, automatic stacking, and automatic counting are available.

Is the length of the discharge rack adjustable?

Yes, our standard telescopic discharge rack can be adjusted to accommodate sheet materials of varying lengths.

How should the machine be stored when not in use for an extended period?

Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.
