| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |

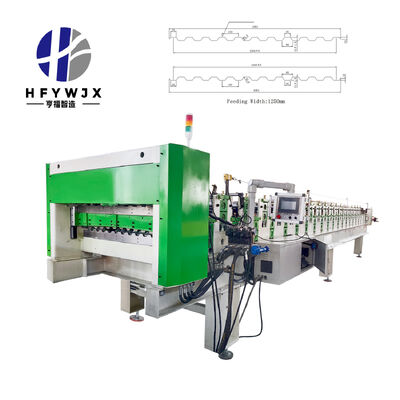

The C8 / C21 double layer trapezoidal roll forming machine is a high-efficiency, cost-effective solution designed to produce two distinct trapezoidal roofing profiles (C8 and C21) on a single compact machine. By integrating two forming layers into one structure, this equipment significantly reduces factory space requirements, cuts investment costs, and improves production flexibility, making it an essential asset for mass-production roofing sheet manufacturers.

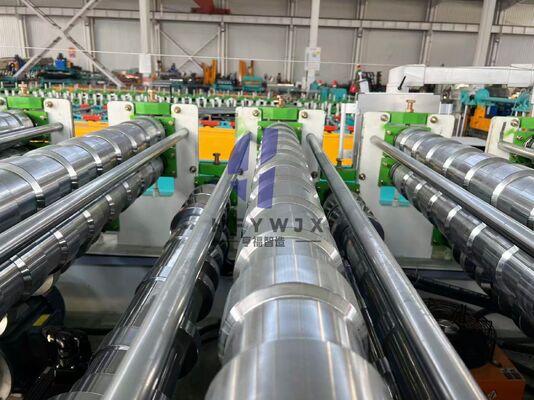

Built with a heavy-duty welded frame and precision-engineered forming rollers, the machine ensures stable, continuous operation and accurate profile shaping at high production speeds. Its fast-switching system allows for seamless transitions between C8 and C21 profiles, enabling factories to maximize output and meet tight production deadlines for multiple roofing sheet orders.
This versatile production line supports a variety of raw materials, including galvanized steel, color-coated steel, and cold-rolled steel, with customizable sheet thickness and width to match specific project needs. This material flexibility ensures the machine can handle a wide range of construction applications, from small residential builds to large-scale commercial and industrial roofing projects.
Powered by an advanced PLC control system with a user-friendly touch screen interface, the machine enables fully automated one-button operation, automatic length and quantity setting, and precise cutting control. This intelligent automation boosts production efficiency, reduces labor costs, and minimizes material waste, helping businesses achieve higher profitability while maintaining consistent, high-quality roofing panel output.
| Model NO | C8 C21 Double Layer Trapezoidal Roll Forming Machine |
|---|---|
| Condition | New |
| Feeding Width | 1250±5mm |
| Machine frame | 350H steel frame |
| Forming Speed | 0-40M/min |
| Type of Driven | 1.2-inch hardened chain |
| Transmission Method | Electric |
| Number of rolling mill sets | Type C8: ≥ 18 pairs; Type C21: ≥ 21 pairs |
| Spindle diameter | Φ80mm(Solid shaft) |
| Customized | Customized |
It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.
The entire machine comes with a 12-month warranty, excluding wear parts.
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
Yes, our standard telescopic discharge rack can be adjusted to accommodate sheet materials of varying lengths.
The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
