Automatic Cold Hard Plate Arc Machine With 7.5kw Servo Motor 26 Sets Roll Forming

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Tile Type:

Galvanized Sheet

Certification:

CE, SGS

Condition:

New

Customized:

Customized

Usage:

Roof

Transmission Method:

Electric

Transmission Mode:

7.5kw Inch Chain Drive

Electronic Control System:

PLC

Transport Package:

Plastic Film & Steel Wire Fixed

Specification:

12000mmx1300mmx1400mm

Package Size:

1200.00cm * 130.00cm * 140.00cm

Package Gross Weight:

15000.000kg

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

Cold Hard Plate Arc Machine

Automatic Plate Arc Machine

7.5kw corrugated sheet rolling machine

Product Description

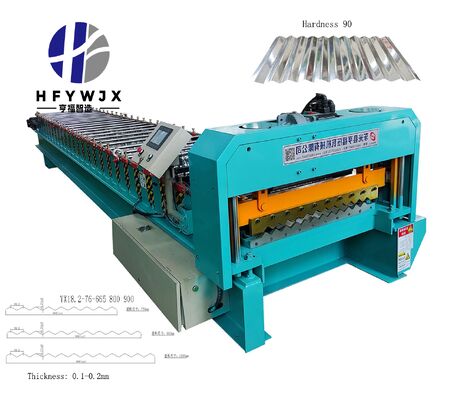

High-efficiency Automatic Cold Hard Board Arc Machine

The cold hard plate arc machine equipment is a professional forming device specially designed for galvanized plates, with clear and standardized requirements for raw material specifications. Specifically, the feed width of the galvanized plate used as the raw material for this equipment is fixed at 1000mm, which is suitable for processing galvanized plates of standard width, ensuring the consistency and stability of the forming effect and laying a solid foundation for subsequent processing steps.

In terms of structural design, the equipment attaches great importance to overall stability and structural strength to adapt to long-term high-intensity operation. It is entirely made of 350H large steel, a material with excellent load-bearing capacity and wear resistance, which effectively avoids structural deformation during operation and ensures the stable operation of the whole machine. At the same time, the equipment adopts 26 sets of roll forming design, which can realize gradual and precise forming of cold hard plates, and the main shaft is a 70mm solid shaft, which has strong rigidity and can bear large torque, further improving the stability and service life of the equipment.

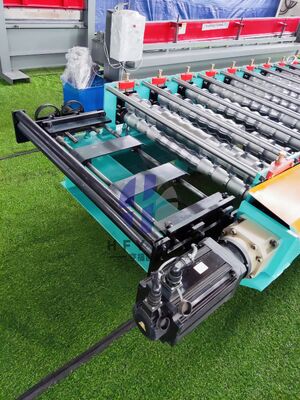

The power system and production efficiency of the equipment are also designed to meet actual production needs. The main motor adopts a 7.5kw servo motor, which has the advantages of high power, stable operation and accurate speed control. The adjustable production speed ranges from 0 to 40 meters per minute. Operators can flexibly adjust the speed according to production requirements, which greatly improves the normal production efficiency compared with traditional equipment, shortens the production cycle and reduces production costs.

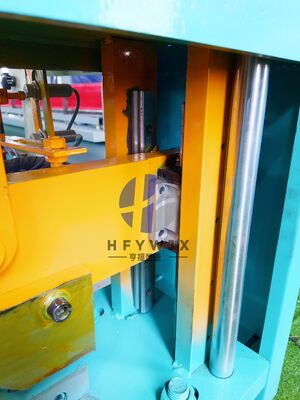

In terms of operation safety and control system, the equipment is equipped with humanized and intelligent configurations. It adopts double hand-operated feed molding, which not only ensures the accuracy of feeding but also improves the safety of operation, preventing misoperation caused by single-hand operation. The cutting part is equipped with a double linear guide servo electric shear, which has the function of automatic alarm. When an abnormal situation occurs during cutting, the alarm will be triggered in time to remind the operator to handle it, avoiding equipment damage and product waste. In addition, the electric control system of the equipment adopts PLC frequency conversion control, which realizes intelligent control of the whole production process, makes the operation more simple and convenient, and ensures the stability and accuracy of equipment operation.

Technical Specifications

Model NO	Corrugated Roofing Sheet Machine
Condition	New
Usage	Roof
Feeding Width	1000mm
Machine Frame	350H steel frame
Forming Speed	0-40M/min
Color	Customized
Type of Driven	Chain drive
Transmission Method	Electric
Number of rolling mill sets	26 row molding
Spindle diameter	Φ70mm (Solid shaft)
Customized	Customized
Feeding method	Double hand rocking feeding rack (with pressure roller)
Specification	12000mm x 1300mm x 1400mm
Origin	Cangzhou, Hebei
Warranty	1 year
Raw materials	Galvanized steel

Product Gallery

Frequently Asked Questions

How many people are required to operate the machine?

It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.

How long is the warranty period?

The entire machine comes with a 12-month warranty, excluding wear parts.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

Is the length of the discharge rack adjustable?

Yes, our standard telescopic discharge rack can be adjusted to accommodate sheet materials of varying lengths.

How can issues such as skewed or off-center sheet feeding be resolved?

The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
