| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |

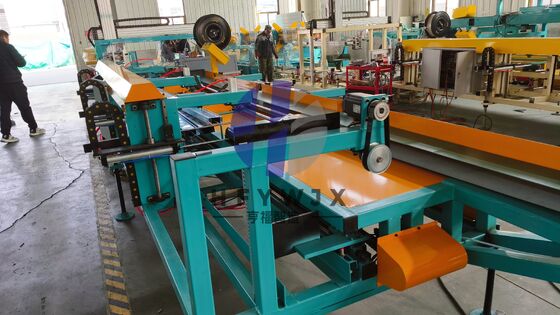

The 50-75-100 Light Steel Keel Roll Forming Production Line is a specialized manufacturing equipment designed for construction and decoration applications, providing efficient and continuous production of drywall metal studs and tracks.

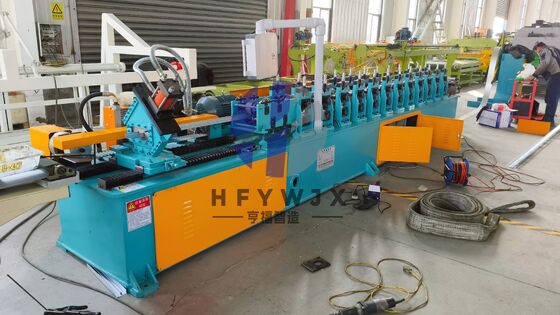

Featuring an integral welded structure constructed from 35mm thick steel plates with 16 forming passes, this production line ensures stable and consistent molding. The shafts are manufactured from 40CR material and incorporate a gearbox transmission system, enhancing overall rigidity and load-bearing capacity for long-term reliable operation.
Powered by an 11kw hydraulic pump station and a 2.3kw cutting section motor, the line delivers stable power output with adjustable production speeds ranging from 0-60m/min. This configuration enables high-efficiency continuous production while maintaining precise profile dimensions and superior surface quality.

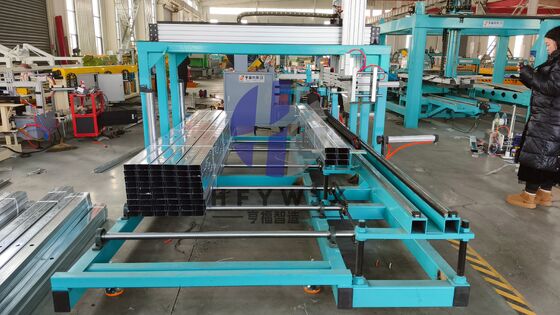

The integrated PLC control system, combined with servo-controlled cutting and automatic stacking capabilities, achieves ultra-precise cutting and positioning. This advanced control system fully meets the high-precision requirements of modern light steel keel production, ensuring consistent product quality and operational stability.
| Model NO | 50-75-100 Light Steel Keel Roll Forming Machine |
|---|---|
| Condition | New |
| The machine itself | Integral welding of steel plates |
| Number of molding passes | 16 |
| Shaft material | 40CR |
| Transmission structure | Gearbox transmission |
| Frame thickness | 35mm |
| Hydraulic pump station | 11kw |
| Cutting section motor | 2.3kw |
| Production speed | 0-60m/min |
| Control system | PLC |
It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.
Thanks to its fully welded structure and reinforced packaging, transportation will not affect the precision of the rollers or the machine frame.
Yes, optional configurations include pneumatic receiving, hydraulic receiving, and automatic stackers.
The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
