Automatic Stacking Light Steel Keel Forming Machine CNC Controlled High Speed 60m/Min

Automatic Stacking Light Steel Keel Forming Machine CNC Controlled High Speed 60m/Min

Brand Name: HENGFU
Model Number: 50-75-100 Light steel keel roll forming machine
MOQ: 1 Piece
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE, SGS
Customized:
Customized
Condition:
New
Control Type:
CNC
Automatic Grade:
Automatic
Profile Type:
C Stud / U Track / Custom Profile
Application:
Drywall System / Light Steel Framing / Partition W
Material Type:
Gi / PPGI / Galvanized Steel
Specification:
1175*1700*1500
Package Gross Weight:
13000.000kg
Packaging Details:
Plastic Film & Steel Wire Fixed
Highlight:

light steel keel forming machine cnc

,

automatic stacking light steel keel forming machine

,

cnc light steel keel roll forming machine

Product Description
Light Steel Keel Roll Forming Machine
Technical Specifications
Model Number 50-75-100 Light Steel Keel Roll Forming Machine
Condition New
Machine Construction Integral welding of steel plates
Number of Molding Passes 16
Shaft Material 40CR
Transmission Structure Gearbox transmission
Frame Thickness 35mm
Hydraulic Pump Station 11kw
Cutting Section Motor 2.3kw
Production Speed 0-60m/min
Control System PLC
Product Overview
The High Speed Stud and Track Roll Forming Production Line is engineered for efficient, continuous manufacturing of drywall metal studs and tracks used in light steel framing and interior construction systems. This fully automated solution integrates decoiling, guiding, roll forming, servo-controlled cutting, and automatic stacking operations.
Featuring a high-speed roll forming system, this production line delivers stable operation, precise profile dimensions, and superior surface quality even at maximum output speeds. The integration of high-quality rollers, solid shafts, and a rigid machine frame ensures long-term durability and consistent performance during continuous manufacturing operations.

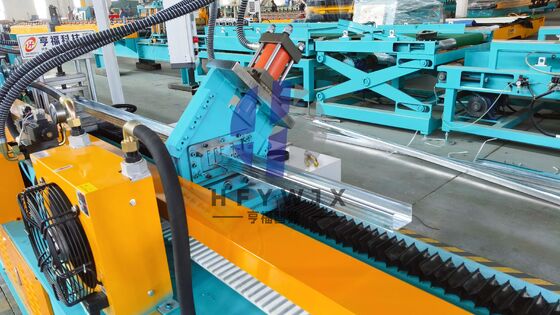

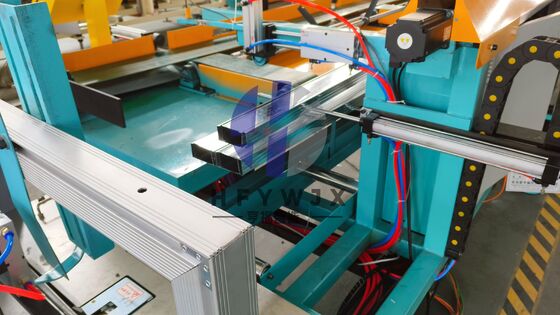

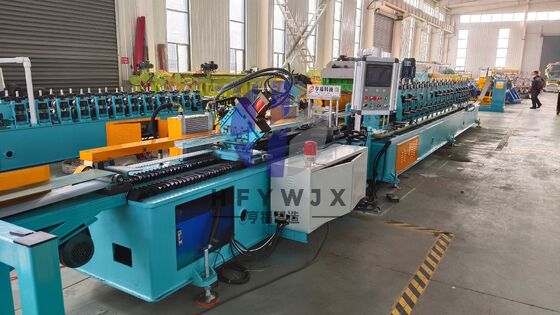

Product Images
Automatic Stacking Light Steel Keel Forming Machine CNC Controlled High Speed 60m/Min 0 Automatic Stacking Light Steel Keel Forming Machine CNC Controlled High Speed 60m/Min 1 Automatic Stacking Light Steel Keel Forming Machine CNC Controlled High Speed 60m/Min 2 Automatic Stacking Light Steel Keel Forming Machine CNC Controlled High Speed 60m/Min 3
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.
What's the delivery time?
Normally it takes about 45 days.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
Can you finish the machine during the delivery time?
We will complete production on time according to the confirmed lead time.
Do you have after-sale support?
Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
Any other service?
We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
Automatic Stacking Light Steel Keel Forming Machine CNC Controlled High Speed 60m/Min 4
