| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |

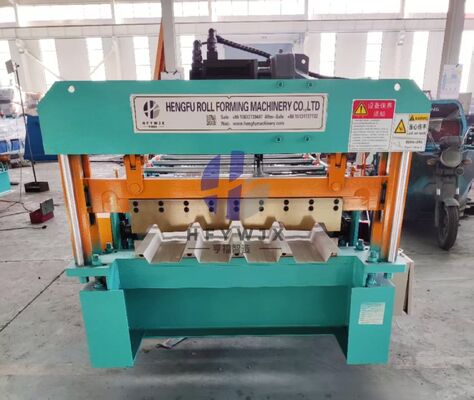

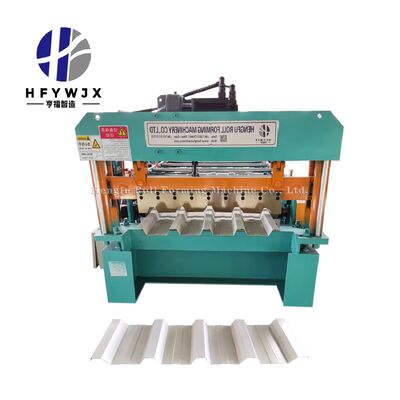

This IBR 686 roof sheet roll forming machine is engineered for high-efficiency production of trapezoidal metal roofing sheets, specifically designed for the African market. Built with a robust 350H steel welded frame featuring 16mm thick wall plates, the machine ensures exceptional stability and long-term durability during continuous operation.

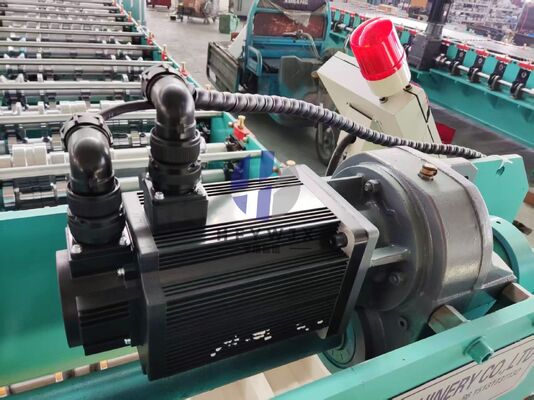

Featuring 23 forming stations and 80mm solid shafts crafted from high-quality 45# steel, the machine delivers precise forming performance and consistent sheet quality. The power system combines a 7.5kW servo motor with a reliable chain transmission, achieving production speeds up to 40 meters per minute.
The rollers, manufactured from 45# steel with precision machining and surface hardening, provide superior wear resistance and extended service life. The cutting system incorporates a servo-driven flying cutting device with patented linear guide rail design, enabling smooth, precise cutting without machine stoppage for maximum efficiency and minimal material waste.
| Model NO. | 686 Roll Forming Machine |
|---|---|
| Usage | Roof, Wall, Floor |
| Speed | 0-40m/Min |
| Main Motor | 7.5kw |
| Voltage | 380V/50Hz, 3p or Customized as Customer' Request |
| Roller Station | 23 rows |
| Spindle diameter | 80mm (solid shaft) |
| Transmission method | Gear transmission |
| Cutting method | Linear guide shear |
| Touch screen | PLC |
| Origin | Botou cangzhou hebei |
| Warranty | 1 year |
