High Speed 35m/Min C8 Roll Forming Machine PLC Control System For 0.3-0.8mm Trapezoidal Sheets

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Model NO:

C8 Roll Forming Machine

Usage:

Roof, Wall, Floor

Thickness:

0.3-0.8mm

Customized:

Customized

Control System:

PLC

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

c8 roll forming machine

roll forming machine plc

35m/min trapezoidal sheet forming machine

Product Description

High Speed C8 Trapezoidal IBR Roof Sheet Roll Forming Machine for Color Steel Galvanized Aluminum Panels

The C8 roll forming machine from Dongguang Hengfu Roll Forming Machine is engineered with a strong focus on precision manufacturing, intelligent control, and high-speed performance. It is equipped with a fully automated PLC control system combined with a user-friendly touchscreen interface, enabling operators to easily set and monitor key production parameters such as sheet length, cutting quantity, forming speed, and batch processing.

This intelligent system ensures consistent output while reducing human error and improving overall production efficiency. One of the core technological advantages of this machine lies in its patented linear guide rail cutting mechanism, which provides superior guidance accuracy and stability during the cutting process, ensuring clean, burr-free edges without deforming the corrugated profile.

The high-speed hydraulic cutting unit works in perfect synchronization with the forming line, allowing continuous production without unnecessary stops, thereby maximizing productivity. The roll forming section consists of multiple precision-engineered forming stations, each designed to gradually shape the metal strip into the final C8 profile.

All rollers are manufactured using high-quality materials and undergo strict quality control procedures, including heat treatment and surface finishing, to ensure long-lasting performance. The machine frame is constructed from heavy-duty steel with excellent rigidity, ensuring minimal deformation even during long-term, high-speed operation.

With optimized transmission systems, reduced noise levels, and enhanced operational stability, this machine is ideal for manufacturers seeking both speed and precision. It reflects Hengfu's commitment to combining advanced engineering with practical usability, delivering equipment that performs reliably in demanding industrial environments.

Technical Specifications

Category	Item Name	Specification
Material	Raw Material	PPGI or Galvanized steel
	Thickness	0.3-0.8 mm
	Material Width	1 m (can be customized)
	Coils Weight	5T
Material	Shaft OD	70mm
Machine	Material	45 steel
	Machine Frame	350H steel frame
	Machine Size	About 11500mm x 1800mm x 1600mm
	Machine Weight	About 6.5 ton
	Machine Color	As customer request
Performance	Working Speed	0-35 meter/min
Power	Motor	China brand
	Main Power	7.5 KW Servo motor
	Voltage	380v 50hz 3PH, or Customize as Customer' request
Control System	Labour	1 person
Control System	Language	Chinese, English or Add customer' need

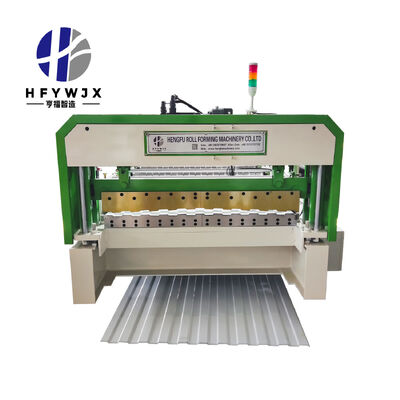

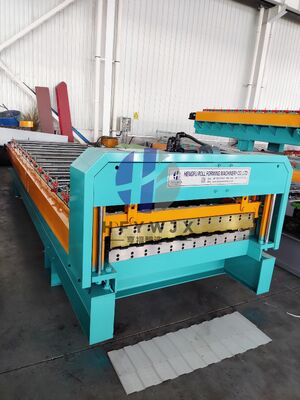

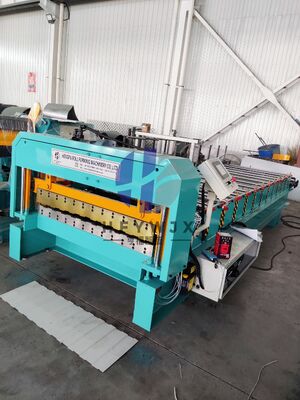

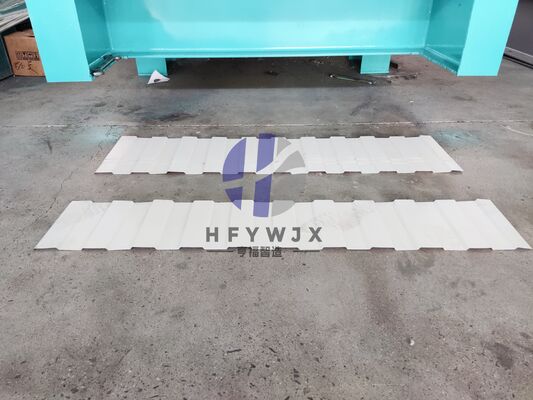

Product Images

Frequently Asked Questions

Q: Can a single machine produce multiple types of profiles?

A: Standard models are typically designed to produce one specific profile type per machine. However, customizable models—such as those with interchangeable rollers, double-layer machines, or triple-layer machines—can be configured to enable a single machine to serve multiple purposes.

Q: Does the machine require disassembly for transport?

A: The core structure remains intact; only the auxiliary components are removed to ensure that precision is maintained.

Q: How long is the warranty period?

A: The entire machine comes with a 12-month warranty, excluding wear parts.

Q: There are no professional maintenance personnel available locally; what should we do in the long run?

A: We provide lifetime remote video guidance; most issues do not require on-site repair.
