| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |

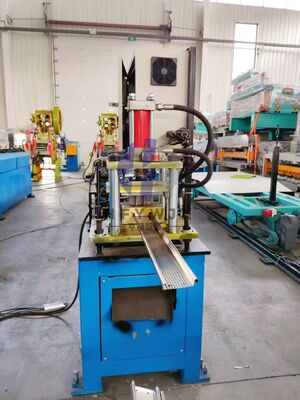

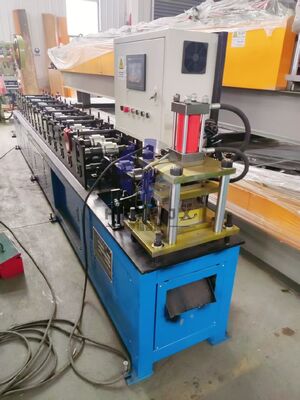

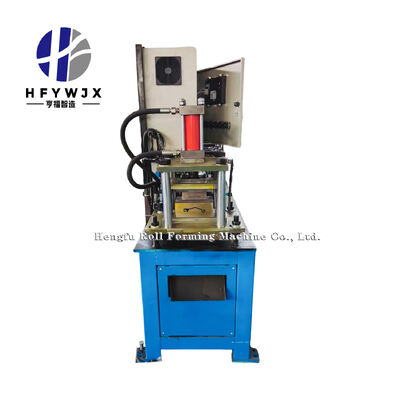

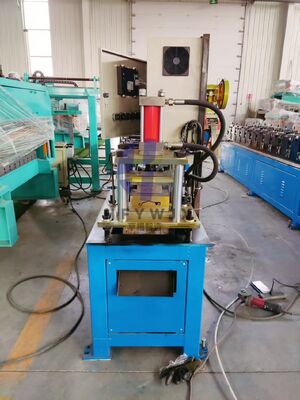

The Roller Shutter Door Roll Forming Machine is a specialized, high-performance production line built exclusively for the door manufacturing and construction sectors. Designed for continuous, efficient operation, it produces premium roller shutter door profiles, offering modern workshops a fully automated and reliable solution to meet growing market demands.
Built with industrial-grade durability in mind, the machine features a robust frame constructed from 80×80 square tubes, paired with 15 forming stations for consistent molding. Critical components include a 16mm thick wall plate and Φ50mm solid 45# steel main shafts, delivering exceptional rigidity that withstands long hours of high-intensity production.
Its power and drive system ensures smooth, stable operation, utilizing a reliable gear transmission, a 4kW main motor, and a 4kW air-cooled hydraulic station. This setup supports a production speed of 15-16m/min, significantly boosting output efficiency and shortening manufacturing lead times.
Precision and usability are central to its design. It uses post-forming double-blade shearing for clean, burr-free cuts, controlled by a Delta PLC and frequency converter to achieve a length tolerance of ≤1mm. Additional features like 35mm galvanized pull rods, a Type 4 cycloidal reducer, and multilingual support (Chinese/Russian) further enhance stability and ease of operation for global users.
| Model NO | Roller Shutter Door Roll Forming Machine |
|---|---|
| Condition | New |
| The machine itself | 80*80 square tube heavy frame |
| Number of molding passes | 15 |
| Shaft material | 45# steel (solid shaft, Φ50mm) |
| Transmission structure | Gear transmission |
| Frame thickness | 16mm wall plate |
| Hydraulic pump station | 4kw (with air cooling) |
| Cutting section motor | 4kw main motor |
| Production speed | 15-16m/min |
| Control system | Industrial PLC + frequency control (Delta brand) |
| Cutting method | Post-forming double-blade shearing |
| Pull rod | 35mm galvanized |
| Reducer | Type 4 cycloidal series |
| Operation language | Chinese, Russian |
