| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |

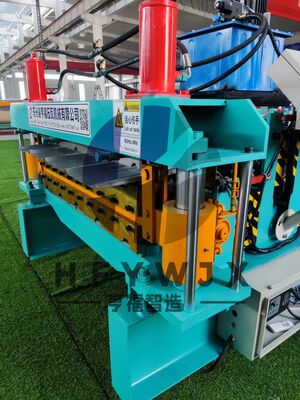

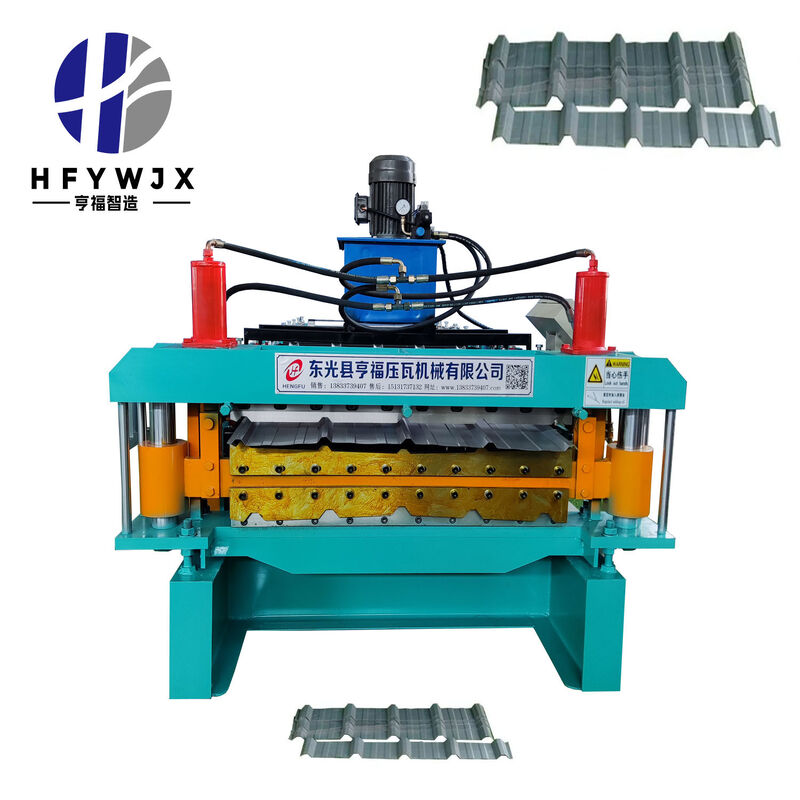

The Automatic 840/900 Double Layer Profile Cold Roll Forming Machine is designed to deliver high-efficiency production for two popular roofing profiles within one compact system. By integrating dual-layer forming capability, this machine enables manufacturers to switch between 840 and 900 profiles with ease, significantly improving productivity while reducing equipment investment and floor space requirements.

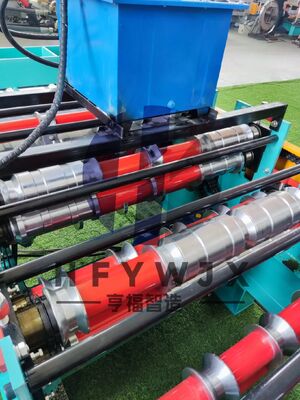

Engineered with precision roll forming technology, the machine ensures accurate profile shaping and excellent surface quality. The forming rollers are manufactured from high-grade materials and processed with strict tolerances, resulting in smooth operation and consistent output. Its stable drive system and well-structured frame provide reliable performance even during long production runs.
The machine features a fully automatic control system, allowing operators to manage production parameters, sheet length, and quantity with high accuracy. The user-friendly interface simplifies operation, minimizes human error, and enhances overall efficiency. In addition, the hydraulic cutting system ensures clean, precise cuts, maintaining uniformity across all finished panels.
A key advantage of this equipment lies in the manufacturing excellence of Dongguang Hengfu Roll Forming Machine Co., Ltd. The company is recognized for its advanced production techniques, strict quality control, and dedication to delivering durable and high-performance machinery. Every component is carefully selected to ensure long service life, energy efficiency, and dependable operation.
This double layer roll forming machine is an ideal solution for roofing sheet manufacturers looking to expand their product range while maintaining cost efficiency. With its combination of flexibility, precision, and robust construction, it helps businesses stay competitive in both domestic and international markets.
| Model NO | Double layer roll forming machine |
|---|---|
| Condition | New |
| Usage | Roof |
| External dimensions | 6500mm x 1300mm x 1200mm |
| Machine frame | 300H steel frame |
| Number of rolling mill sets | 13-11 row molding |
| Roll material | 45# steel rough lathe fine lathe outer circle grinding and electroplating treatment during addition |
| Spindle material | 45 steel |
| Spindle diameter | Φ70mm (Solid shaft) |
| Type of Driven | Chain drive |
| Forming Speed | 0-35M/min |
| Main motor power | 7.5KW |
| Electric control system | PLC |
| Customized | Customized |
| Origin | Cangzhou, Hebei |
| Warranty | 1 year |
