| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |

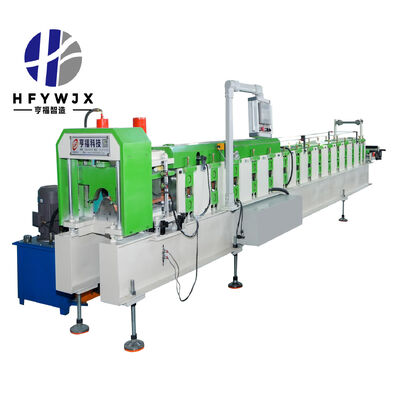

This 310 ridge cap roll forming machine with automatic cutting is a highly efficient solution designed for producing metal ridge caps used in modern roofing systems. It is specifically engineered to process galvanized steel and color-coated sheets into precise ridge profiles that ensure excellent waterproofing, structural integrity, and aesthetic finishing at the roof peak.
With a feeding width of 310 mm, the machine is ideal for standardized roofing applications and delivers consistent, high-quality output. The machine features a robust structure built with a heavy-duty 350H steel frame, ensuring long-term stability and reliable performance during continuous operation.

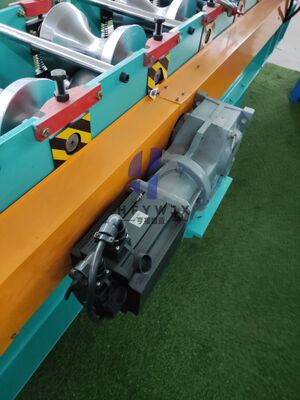

Equipped with 14 forming stations and solid 70 mm shafts, it provides excellent forming accuracy and maintains consistent shape quality across every finished product. The chain-driven transmission system further enhances durability while supporting smooth and stable production at speeds up to 0-8 m/min.
Automation is a key advantage of this equipment. It adopts an advanced PLC control system combined with a user-friendly touch screen interface, allowing operators to easily set parameters such as production speed and cutting length. The automatic hydraulic cutting system ensures clean, burr-free cuts after forming, reducing material waste and improving overall production efficiency while minimizing manual intervention.
| Raw Material | Galvanized plate, color steel plate |
| Feeding Width | 310mm |
| Rolling Thickness | 0.8mm |
| Production Rate | 8M/min |
| Place of Origin | Cangzhou, Hebei Province |
| Machine Frame | 350H steel frame |
| Warranty | 1 year |
| Dimension (L*W*H) | about 6000mm x 1300mm x 1400mm |

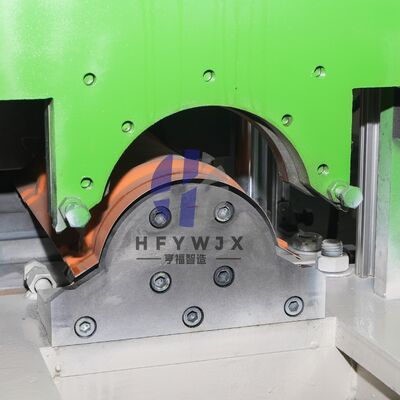

| Cut Off System | After forming, it is cut off and the four-column tie rod guide column is sheared (no burrs in shearing, and the maintenance rate is extremely low) |
| Usage | Building |
| Electronic Control System | Industrial computer PLC frequency conversion control, cutting length error ≤1mm |
| Roll Material | Rough turning and fine turning of No. 45 steel, cylindrical grinding (the ribs are made of bearing steel) |
| Spindle Diameter | Φ70mm (solid shaft) |
Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.
Yes, optional configurations include pneumatic receiving, hydraulic receiving, and automatic stackers.
With precision-ground and polished rollers, combined with a properly designed forming process, the machine will not scratch the sheet surface under normal operating conditions.
The electrical cabinet features a dust-proof and moisture-resistant design, allowing it to operate normally even within a simple outdoor shelter.
Yes, it can be customized with arching and bending mechanisms to enable the forming of curved roofing tiles.
