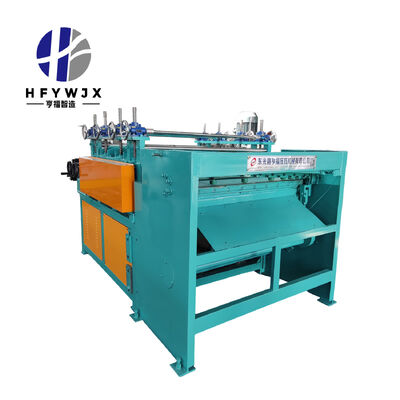

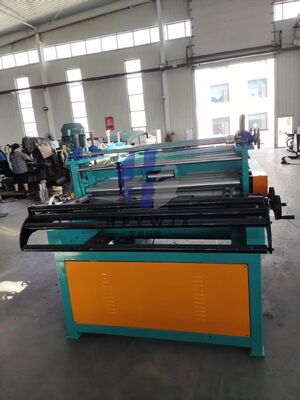

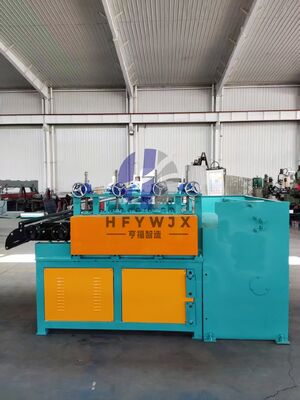

15-25m/Min Stainless Steel Leveling Machine 1.3M For Precise Plate Flattening

Dongguang Hengfu Roll Forming Machine Co., Ltd. delivers a high-performance 1.3m Stainless Steel Leveling Machine engineered for precision, stability, and long service life. This fully integrated production line combines uncoiling, feeding, roll forming, fixed-length cutting, and finished sheet output in one continuous process. It is built to meet the strict demands of industrial sheet metal processing, ensuring consistent flatness and high efficiency for every operation.

The machine features a heavy-duty structure with a robust 100×100×6mm square tube frame and 40mm thick wall panels, providing exceptional rigidity and stability during high-speed operation. Equipped with 90mm solid main shafts, 7 upper and 6 lower forming passes, and premium 45Cr chrome-plated rollers, the leveling system ensures uniform pressure, smooth surface treatment, and perfect flatness for stainless steel sheets. Every component is selected for durability and wear resistance to support long-term production.

Suitable for stainless steel sheets with a thickness of 1-2mm, this machine supports a feeding width of 1300mm and an effective forming width of 1250mm, making it widely applicable for various sheet metal processing needs. Driven by a reliable 7.5KW motor and gear transmission, it achieves a working speed of 15-25m/min, significantly improving productivity while maintaining stable and high-quality forming results.

For precise and user-friendly operation, the equipment uses an intelligent PLC touch screen control system and rotary counter, ensuring length accuracy within ±1mm. The electric shearing system with high-strength Cr12 blades provides clean, burr-free cutting with low maintenance and long service life. A remote control function adds convenience and safety to daily operation.

Backed by professional design and strict quality control from Dongguang Hengfu Roll Forming Machine Co., Ltd., this 1.3m stainless steel leveling machine offers outstanding reliability, low failure rate, and stable performance. It is the ideal choice for factories seeking a durable, high-precision, and efficient solution for stainless steel leveling and cutting.
