High Speed PLC Controlled Dual Profile Double Layer Trapezoidal Roll Forming Machine for Efficient Metal Roof Tile Production

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Package Size:

1100.00cm * 130.00cm * 140.00cm

Package Gross Weight:

15000.000kg

Certification:

CE, SGS

Customized:

Customized

Transmission Method:

Electric

Transmission Mode:

1.2-Inch Hardened Chain

Tile Type:

Colored Steel

Condition:

Usage:

Electronic Control System:

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

dual profile trapezoidal roll forming machine

dual profile double layer roll forming machine

ce trapezoidal roll forming machine

Product Description

High Speed C8 and C21 Double Layer Roll Forming Machine

Dongguang Hengfu Roll Forming Machine Co., Ltd. proudly presents the C8-C21 Double-Layer Trapezoidal Roll Forming Machine, a high-performance, space-saving solution engineered for efficient production of two different trapezoidal roof and wall profiles in one compact line. Designed for modern metal construction manufacturing, this machine combines robust structure, precision forming, and intelligent control to deliver stable output, consistent profile accuracy, and long service life.

Key Features

Heavy-duty frame made of high-strength structural steel for exceptional rigidity
Solid main shafts and precision-machined rollers for smooth, uniform forming
Dual-profile design allows fast switching between C8 and C21 trapezoidal shapes
Integrated hydraulic cutting system with high-grade alloy blades
Intelligent PLC touch-screen control system with intuitive operation
Comprehensive safety features including emergency stop and overload protection
Low energy consumption, low noise, and simple maintenance

Technical Specifications

Model Number	C8 C21 Double Layer Trapezoidal Roll Forming Machine
Condition	New
Feeding Width	1250±5mm
Machine Frame	350H steel frame
Forming Speed	0-40M/min
Type of Driven	1.2-inch hardened chain
Transmission Method	Electric
Number of Rolling Mill Sets	Type C8: ≥ 18 pairs; Type C21: ≥ 21 pairs
Spindle Diameter	Φ80mm (Solid shaft)
Customization	Available

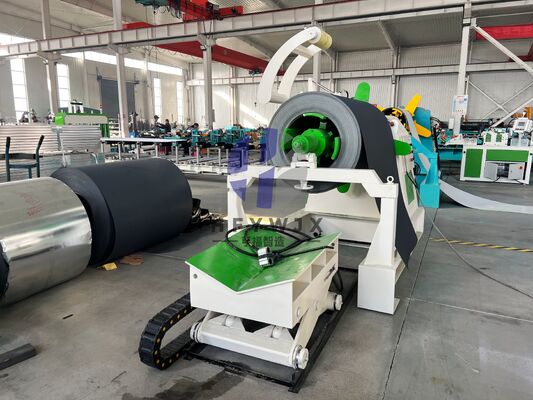

Product Gallery

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.

What's the delivery time?

Normally it takes about 45 days.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

Can you finish the machine during the delivery time?

We will complete production on time according to the confirmed lead time.

What types of profiles can you produce?

Trapezoidal roof panels, corrugated sheets, floor decking, C/Z-purlins, columns/beams, hoarding panels, standing seam roofing, etc. We can also customize products according to customer drawings.
